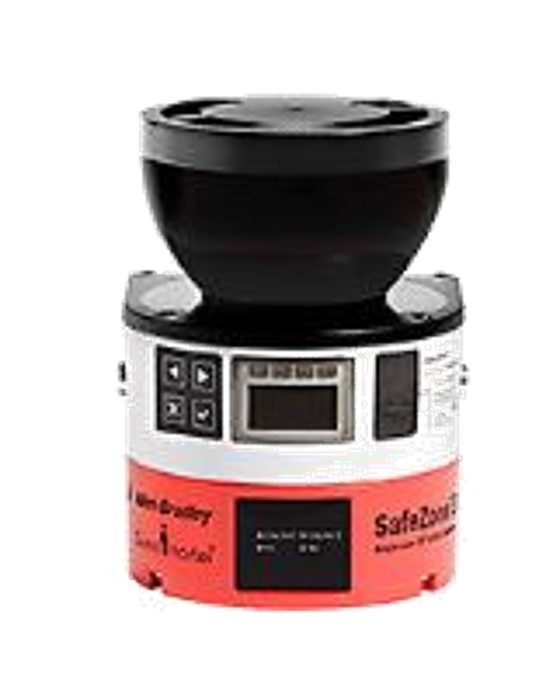

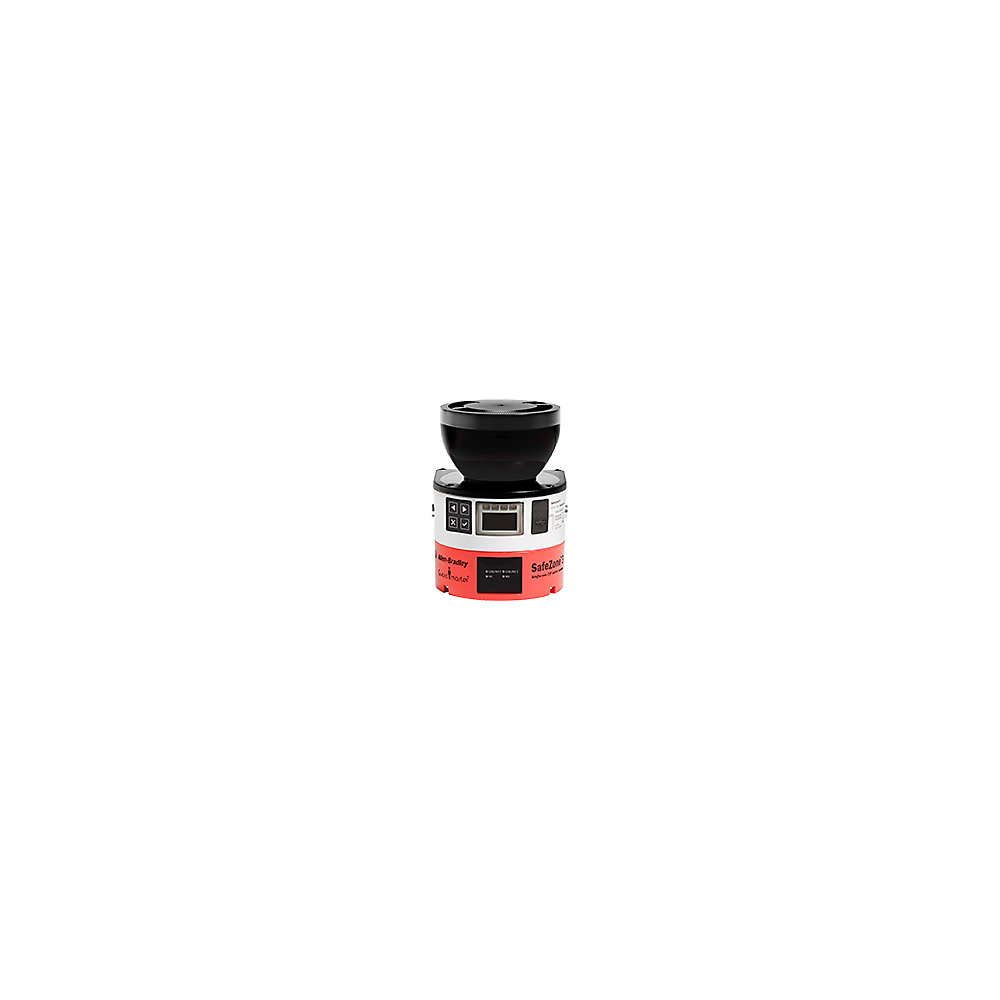

5.5m SafeZone SZ CIP Safety Scanner

Name: 5.5m SafeZone SZ CIP Safety Scanner
Brand: Rockwell Automation
SKU: 442L-SZNMZCP

Serial #:

Lifecycle status: Active

Product at a glance

Repair Options Available

Lifecycle status: Active

Product at a glance

Repair Options Available

Suitable for safety functions	True
Voltage type	DC
Rated control supply voltage at DC	24 V
Type of electric connection	Screw connection
Type	Type 3, SIL2, PLd
Operating range	Up to 40 m (131.2 FT.) warning field
Resolution	30mm, 40mm, 50mm, 70mm, 150mm, and 200mm (1.18 to 7.87 in.)
With configurable message output	True
With restart blockage	True
With alert field output	True
Laser protection class	Class 1
Status	1
Software	AOP
Object category	Mat
Sub brand	SafeZone
Class	PA_4A1288072
Object	442L-SZNMZCP
Indicators	Color display
Safety output rating	4 safety bit
Auxiliary output ratings	No aux outputs
Power supply	24V DC +25% / -30%
Special feature	8 fields, 4 simultaneous
Application	CIP Safety laser scanner
Brand name	Allen-Bradley Guardmaster
Description	5.5 m SafeZone3 CIP safety scanner

Scan angle	275 °
Type of safety according to IEC 61496-1	3

Width sensor	112 mm
Height of sensor	150.8 mm
Response time	60 ms
Wavelength of the sensor	845 nm
Enclosure type rating	IP65

Drawings
3-Dimensional STEP model (STP)	Download (ZIP)
2-Dimensional Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
2-Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Australian RCM
CE
Safety
Korean KC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Suitable for safety functions	True
Voltage type	DC
Rated control supply voltage at DC	24 V
Type of electric connection	Screw connection
Type	Type 3, SIL2, PLd
Operating range	Up to 40 m (131.2 FT.) warning field
Resolution	30mm, 40mm, 50mm, 70mm, 150mm, and 200mm (1.18 to 7.87 in.)
With configurable message output	True
With restart blockage	True
With alert field output	True
Laser protection class	Class 1
Status	1
Software	AOP
Object category	Mat
Sub brand	SafeZone
Class	PA_4A1288072
Object	442L-SZNMZCP
Indicators	Color display
Safety output rating	4 safety bit
Auxiliary output ratings	No aux outputs
Power supply	24V DC +25% / -30%
Special feature	8 fields, 4 simultaneous
Application	CIP Safety laser scanner
Brand name	Allen-Bradley Guardmaster
Description	5.5 m SafeZone3 CIP safety scanner

Scan angle	275 °
Type of safety according to IEC 61496-1	3

Width sensor	112 mm
Height of sensor	150.8 mm
Response time	60 ms
Wavelength of the sensor	845 nm
Enclosure type rating	IP65
