440R-N23114

Guardmaster MSR126.1T Safety Relay

PrintPrint
Print
EmailEmail
Share
Product RegistrationProduct Registration
QR code

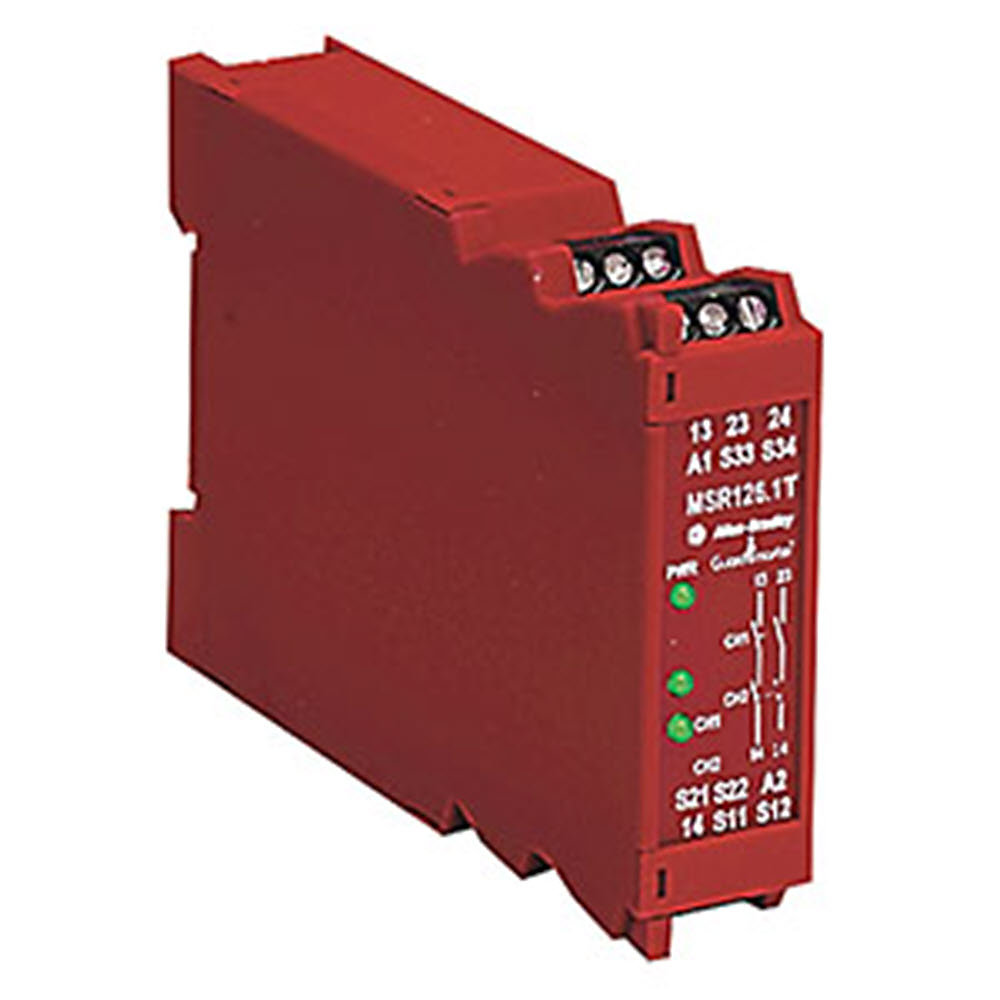

Allen-Bradley 440R-N23114 product image
Allen-Bradley 440R-N23114 product image
Allen-Bradley 440R-N23114 product image
Lifecycle status: Active
Lifecycle status: Active
Add to BoM
  • Get Support
Technical Specifications
General
Electrical
Certification
Mechanical
Performance Level
Environmental
SIL Rating
Construction
Relays
Drawings
Documents
Certifications
Alternative Products
Technotes
Product Family
Guardmaster
Reset
Automatic/Manual
Number of outputs, safety related, undelayed, with contact
2
Number of outputs, safety related, delayed, with contact
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
With start input
True
With muting function
False
Voltage type for actuating
AC/DC
Rated control supply voltage at DC
24 V
Model
Basic device
Type of electric connection
Screw connection
Evaluation inputs
One- and two-channel
Power consumption
4 W
Terminal type
Fixed
Fuses output
External: 6 A slow blow or 10 A quick blow
Rated thermal current (Ith)
Non switching: 6 A maximum in one current path
Continuous safety output current
UL: B300, 5A @ 250V AC, 24V AC @ 6A @ 24V DC, AC-15: 6A @ 250V AC, DC-13: 3A @ 24V DC
Wire size
0.2 to 2.5 mm²
Electrical life cycle
100000 (220V AC / 4 A / 880VA cosφ = 0.35), 500000 (220V AC / 1.7 A / 375VA cosφ = 0.6), 1000000 (30V DC / 2 A / 60 W), 2000000 (10V DC / 0.01 A / 0.1 W)
Number of outputs, signalling function, delayed, with contact
0
With feedback circuit
True
Suitable for monitoring of magnetic switches
True
Suitable for monitoring of proximity switches
True
Suitable for monitoring of emergency-stop circuits
True
Suitable for monitoring of optoelectronic protection equipment
True
Suitable for monitoring of position switches
True
Suitable for monitoring of tactile sensors
True
Suitable for monitoring of valves
True
Immediate safe dry No output
2
Impulse withstand voltage
2500 V
Switching current, min
10mA @ 10V
Output utilization per IEC 60947-4-1, resistive
DC-1: 6A @ 24V DC
Utilization category
UL: B300, 5 A/250V AC @ 24V AC, 6 A/24V DC
Operating voltage range
24V AC/DC, 0.85 to 1.1 x rated voltage 50 60 Hz
Output utilization per IEC 60947-5-1, inductive
P300, DC-13: 3A @ 24V DC, 6A @ 24V DC @ 6 ops/min
SIL according to IEC 61508
3
With approval according to UL
True
Stop category according to IEC 60204
0
Performance level according to EN ISO 13849-1
Level e
Type of safety according to IEC 61496-1
4
With approval for TUV
True
With detachable clamps
False
Rated control supply voltage at AC 50 Hz
24 V
Rated control supply voltage at AC 60 Hz
24 V
Terminal protection
IP20
Weight
160 g
Vibration
10...55 Hz, 0.35 mm
Shock
10 G, 16 ms, 100 shocks
Rail mounting possible
True
Enclosure protection
IP40 (NEMA 1)
MTTFd
375 year
DC avg
99 %
T cycle
8/28800 (h/s)
Category according EN ISO 13849-1
4
Mission time
20 year
Hours of operation
24 h
Days of operation
365 dbays
Operating temperature
-5 °C
Relative humidity
Operating: 90%
Pollution degree
2
PFHd
2.03e-09
Height
75 mm
Width
22.5 mm
Depth
110 mm
Mounting
35 mm DIN rail in enclosure to a min of IP54
Reset
Manual monitored or automatic/manual
Drawings
2-Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)
Drawings
2-Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)
