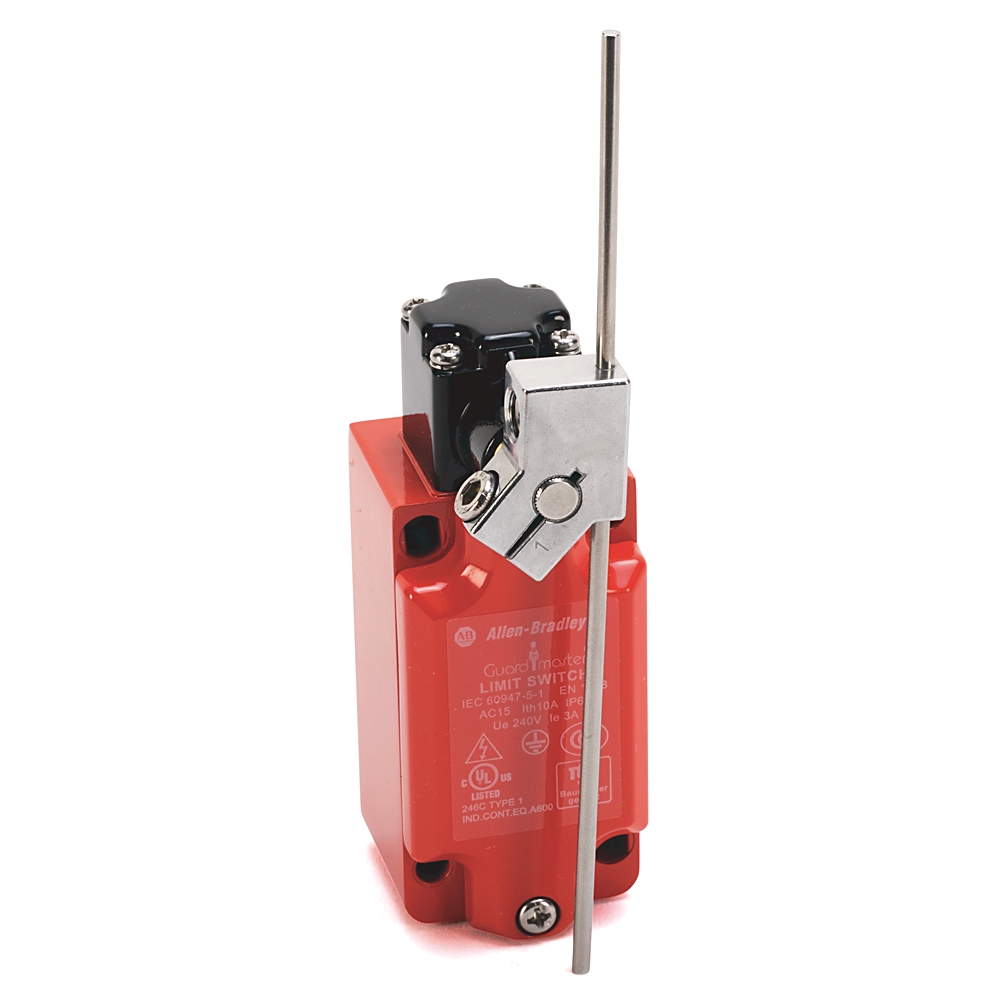

| Actuator | Rod Lever |
|---|---|
| Body Material | Metal |
| High Temperature Limit | 65C,-25C |
| Number of contacts as normally closed contact | 1 |
|---|---|
| Number of contacts as normally open contact | 1 |
| With status indication | False |
| Type of electric connection | Other |
| Utilization category | N600/DC-13 |
| Switching current, min | 5mA @ 5V DC |
| Auxiliary contacts | 1NO (with 2 NC) |
| Contact current rating (Ie) | 6A @ 120V AC (Ue) |
| Thermal current (Ith) | 10 A |
| Actuation speed, min | 100 mm/min |
| Actuation speed, max | 250 mm/s |
| Rated impulse withstand voltage | 2500 V |
| Actuation frequency, max | 6000 ops/hr |
| Rated insulation voltage | 600V AC |
| Suitable for safety functions | True |
|---|---|
| Forced opening | True |
| Degree of protection (NEMA) | 1 |
| Material housing | Metal |
| Degree of protection (IP) | IP66 |
| Contact type | Snap acting |
| Enclosure color | Red |
| Mounting | 2 x M5, any position |
| Body style | 30 mm large metal body |
| Width | 40 mm |
| Height | 240 mm |
| Actuator type | Rod lever |
| Mechanical life operations | 10000000 ops per hour |
| Housing material | Die-cast alloy |
| Connection type | M20 conduit |
| Construction type housing | Cuboid |
| Depth | 57 mm |
|---|---|
| Actuator material | Various polymers and metals |
| Operating temperature | -25 °C |
|---|---|
| Safety contacts | 1 NC snap acting, 2 NC, 3 NC or 4 NC slow acting |
| Pollution degree | 3 |
| Shock | IEC 60068-2-7 (30 Gn 3 pulses per axis) |
| Vibration | IEC 60068-2-6 (10...55 Hz, 0.35 mm Alitude) |
| Drawings | |
|---|---|
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3-Dimensional STEP model (STP) Download (ZIP) |
| 2-Dimensional Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DWG) |
| Type | Resource | Publication |
|---|---|---|
| General | Installation Instructions | -- |
| General | Product Cutsheet | -- |
| Installation Instructions | 440p-in002_-en-p | 440P-IN002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- Eurasion Economic Community
- China CCC
- CE
- TUV General Safety
- UL Listed
This product was certified with the above certifications as of 2025-07-19. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
