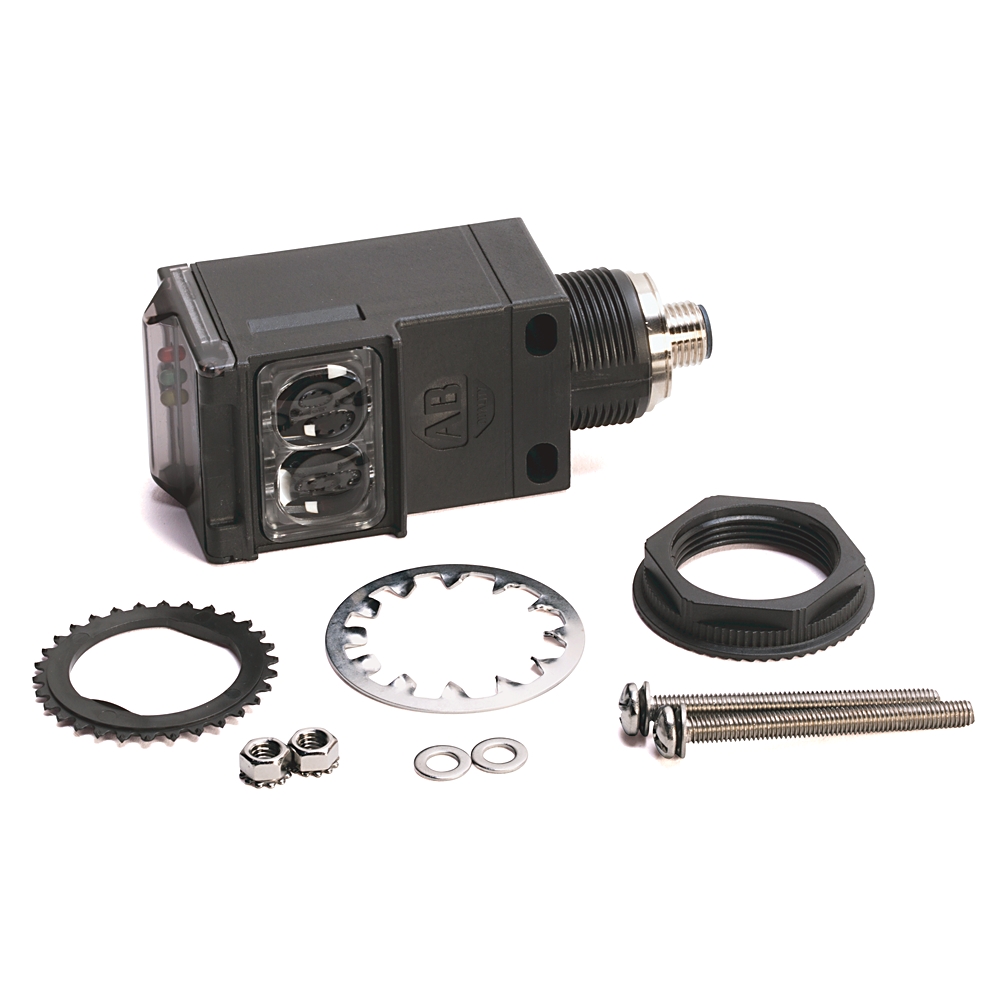

Series 9000 Photoelectric Sensor

Serial #:

Lifecycle status: Active

Sub Brand	Series 9000

Degree of protection (NEMA)	13
Degree of protection (IP)	IP67
Width sensor	41.91 mm
Height of sensor	74.93 mm
Length of sensor	40 mm
Sensing mode	Light-/dark switching
List of degrees of protection (NEMA)	4X, 6P, 12, 13
Sensing mode type	Transmitted beam receiver
Sensing distance	Depends on transmitted beam emitter
List of degrees of protection (IP)	IP69K, IP67
Vibration	10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2
Shock	30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
Operating environment	IP69K, IP67 with 1200 psi, NEMA 3, 4X, 6P, 12, 13, ECOLAB rated
Suitable for safety functions	False

Wavelength of the sensor	880 nm
Response time	2 ms
Voltage type	AC/DC
Material housing	Plastic
Type of switching output	Other
Setting procedure	Manual adjustment
Type of electric connection	Plug-in connection
Type of light	Infrared light
Scope of delivery of the one-way system	Receiver
Type of switch function	Other
Current consumption, max	30 mA
Lens material	Acrylic
Load current	300mA @ 264V AC
Operating voltage/mode	AC/DC - MOSFET
Connection type	4 pin DC mini QD
Protection type	Short circuit, reverse polarity, false pulse, overload
LED status	Yellow ON: power is ON
With time function	False
Pre failure notice	False
With reflector	False
Sensor types	Standard ON/OFF
