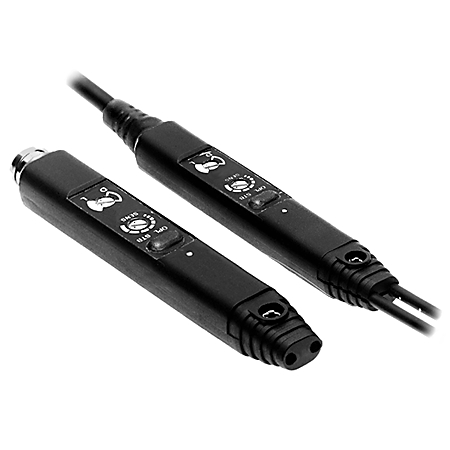

42FA-F2LNA-P3
Side Through Hole Fiber Optic Sensor
Rockwell Automation announces that as of March 31, 2023, the Side Through Hole Fiber Optic Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
March 31, 2023
Replacement Category:
No planned RA replacement
Rockwell Automation announces that as of March 31, 2023, the Side Through Hole Fiber Optic Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
March 31, 2023
Replacement Category:
No planned RA replacement
| Degree of protection (IP) | IP65 |
|---|---|
| Length amplifier | 8.2 mm |
| Width amplifier | 10 mm |
| Height amplifier | 65.7 mm |
| Wave length | 660 nm |
| Sensing mode type | Fiber optic |
| Operating environment | NEMA 1, 12, 13 and IP65 |
| Setting procedure | Manual adjustment |
| Weight | 65 g |
| Voltage type | DC |
|---|---|
| Material housing | Plastic |
| Type of switching output | NPN |
| Type of electric connection | Connector M8 |
| Supply current | 25 mA |
| Light source | Visible red LED |
| Sensitivity adjustment | Manually adjustable |
| Operating voltage | 12...24V DC ±10% |
| Connection type | 3 pin pico (M8) QD |
| Operating voltage/mode | DC - light or dark operate output |
| Protection type | Reverse polarity, false pulse, transient noise |
| Indication | LED |
| Leakage current, max | 0.5 mA |
| Load current, max | 100 mA |
| Response time | 500 µs |
| Indicator status | Red LED: Output Green LED: Stability |
| Relative humidity, max | 85 % |
|---|---|
| Ambient temperature | -25 °C |
| Housing material | Noryl® |
|---|
