300-DOD9400

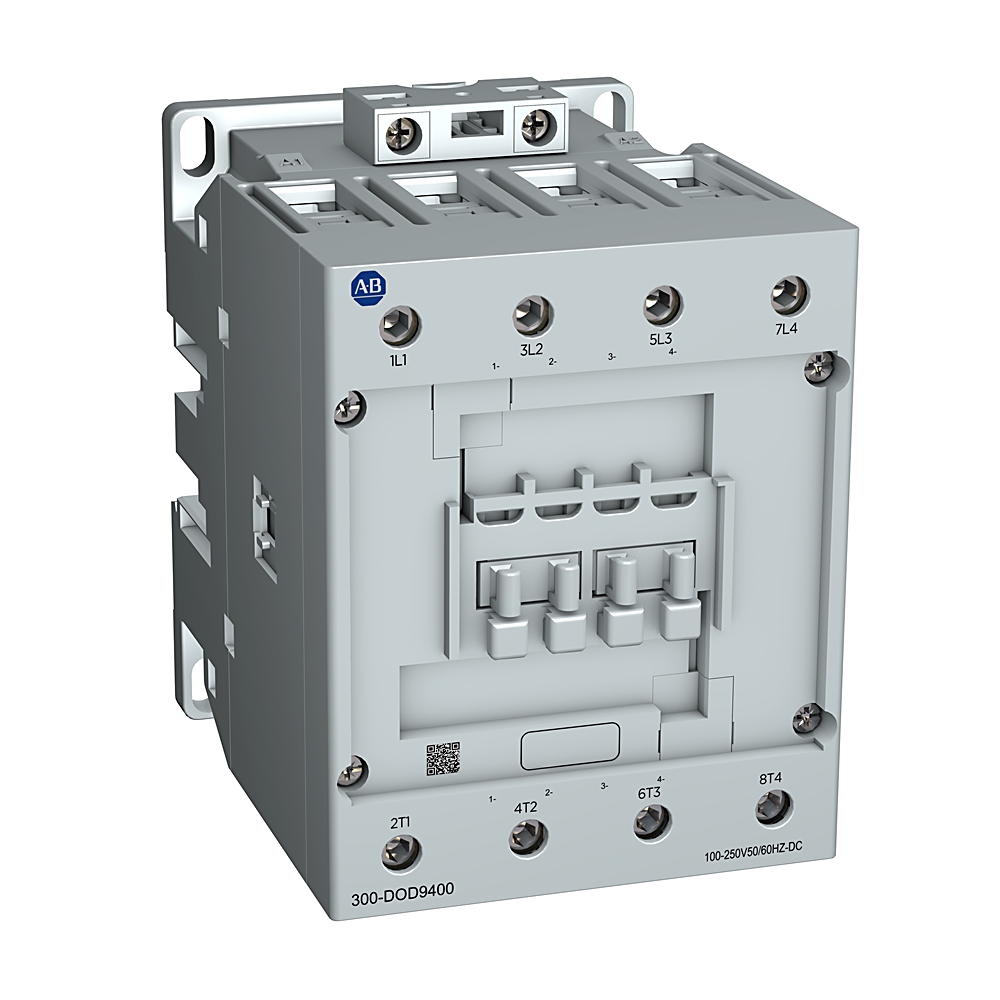

NEMA Size 3 Contactor
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Description
300 NEMA Contactor, Size 3, 100-250V 50-60 Hz/100-250V DC, 4 NO Poles, 0 NO, 0 NC Auxiliary Contact, Screw Terminals
300-DOD9400
NEMA Size 3 Contactor
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Description
300 NEMA Contactor, Size 3, 100-250V 50-60 Hz/100-250V DC, 4 NO Poles, 0 NO, 0 NC Auxiliary Contact, Screw Terminals
Overview
Physical Characteristics
Mechanical
Construction
Compliance & Environment
Standards & Protection
Electrical & Connectivity
Power & Electrical Characteristics
Drawings
Documents
Certifications
Accessories
Technotes
| Unique Product Identifier |
300-DOD9400
|
|---|---|
| UPC |
194033014605
|
| Estimated Lead Time |
55 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
France
|
Mechanical
| Altitude, max |
2000 m of installation site
|
|---|---|
| Mechanical life |
10 mons of ops
|
| Number of auxiliary contacts as normally closed contact |
0
|
| Number of auxiliary contacts as normally open contact |
0
|
| Number of auxiliary contacts, max |
8
|
| Number of normally closed contacts as main contact |
0
|
| Number of normally open contacts as main contact |
4
|
| Operating time, drop-out |
10 ms
|
| Operating time, pick-up |
20 ms
|
| Protection class |
Contactor main contact: IP00
|
| Shock resistance |
IEC 60068-2-27
|
| Vibration resistance |
IEC 60068-2-6
|
Construction
| Required torque |
Load: 40 lbin
|
|---|---|
| Wire size |
Load: 14...1 AWG for power terminals
|
| Ambient temperature |
Storage range: -55...80 °C (-67...176 °F)
|
|---|---|
| Climatic withstand |
Category B according to IEC 60947-1, annex Q
|
| Humidity |
Non-condensing: 5...95%
|
| Operating position |
Vertical
|
| Available short circuit ampere |
65,000A @ 480V max, circuit breaker, RMS symmetrical
|
|---|---|
| Coil |
Electronic
|
| Coil operating limits, dropout |
30...60% x voltage @ 50/60 Hz
|
| Coil operating limits, pick-up |
85...10% x voltage @ 50/60 Hz
|
| Contacts |
Sizes 0...3: 3 power poles with internal N.O. or N.C. auxiliary contact or 4 power poles., Sizes 1...3: 3 power poles with side mounted N.O. / N.C. auxiliary contact or 4 power poles, Sizes 4...8: 3 main poles with 2 auxiliary contacts (1 N.O. and 1 N.C.)
|
| DIN fuses (gG) current rating |
Type 2 (per IEC 60947-4-1): 80A @ 690V, 60 kA available fault current
|
| Electromagnetic compatibility |
IEC 60947-1 - Environment A and B
|
| FLA |
105A @ 600V, 3-phase per UL/CSA HVAC applications
|
| Features |
Compact size, Sizes 00...5: AC/DC electronic coil with optional PLC interface, Sizes 6...8: AC/DC with PLC interface, Integrated surge suppression, Panel or DIN Rail mountable, Finger safe, Complete range of accessories, Meets global standards, Consists o
|
| Function |
Energy-saving contactor
|
| Fuse type |
H, J, R
|
| General purpose current (enclosed) |
80A @ 600V per UL/CSA
|
| Heat dissipation |
17.5 W
|
| LRA |
630 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
|
| MCCB current rating |
Type 2 (per IEC 60947-4-1): 880A @ 400V, 70 kA available fault current
|
| NEMA size |
00...8
|
| Operating limits, dropout |
(≤0.60) x Us @ DC control
|
| Operating limits, pick-up |
(0.80...1.1) x Us @ DC control
|
| Operating time, closing delay |
20 ms
|
| Operating time, opening delay |
10 ms
|
| Operating volt amperes |
200VA @ 50/60 Hz, inrush
|
| Optional accessories |
Side- or front-mount auxiliary contacts, Mechanical interlocks, Terminal lugs, Terminal shields, Connecting bars
|
| Rated control supply voltage at AC 50 Hz |
100 V
|
| Rated control supply voltage at AC 60 Hz |
100 V
|
| Rated control supply voltage at DC |
100 V
|
| Rated current |
4-Pole: 125A @ 690V, AC-1, Ie at 40 °C
|
| Rated impulse voltage withstand (Uimp) |
8 kV
|
| Rated isolation voltage (Ui) |
600V per UL, CSA
|
| Rated operational current (Ie) |
85A @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 70 °C (158 °F)
|
| Rated operational current and power |
56A @ 115V AC, 500000 electrical ops, 1-phase per UL/CSA elevator duty
|
| Rated operational current and power (enclosed) |
89A @ 250V DC, with 3-poles in series per UL/CSA
|
| Rated operational power (Pe) |
90 kW @ 415V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F)
|
| Rated voltage (Ue) |
24V @ 48V, 110V @ 220V, 440V DC
|
| Standard coil, hold-in |
2.2VA/2 W @ 100...250V AC/DC
|
| Standard coil, pick-up |
50VA/50 W @ 100...250V AC/DC
|
| Switching of DC loads |
3-poles in series: 125A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
|
| Switching of lighting loads |
Tungsten lA: 105A @ 600V, 3-phase (break all lines) per UL/CSA
|
| Switching of power transformers |
Apparent power: 99 kVA @ 600V @ 60Hz (n = 20)
|
| Type of electrical connection of main circuit |
Screw connection
|
| UL class J and CSA HRCI-J fuses rating |
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 100 kA available fault current
|
| UL class RK5 fuses rating |
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 10 kA available fault current
|
| UL inverse-time circuit breaker |
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 250A @ 600V, 50 kA available fault current
|
| Voltage type for actuating |
AC/DC
|
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Dimensions Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| Dimensions Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DWG) |
| General | Publication |
|---|---|
| Specification Sheet | -- |
| Product Cutsheet | -- |
| Circuit Protection Design and SCCR Tables | -- |
| Technical Data | Publication |
|---|---|
| 300-td003_-en-p | 300-TD003 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- China CCC
- Eurasion Economic Community
- Korean KC
- CE
- Australian RCM
- SUVA LVD Type Approval
- UKCA DOC
- MOROCCO DOC
This product was certified with the above certifications as of 2026-07-09. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.
Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Items Per Page:
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
