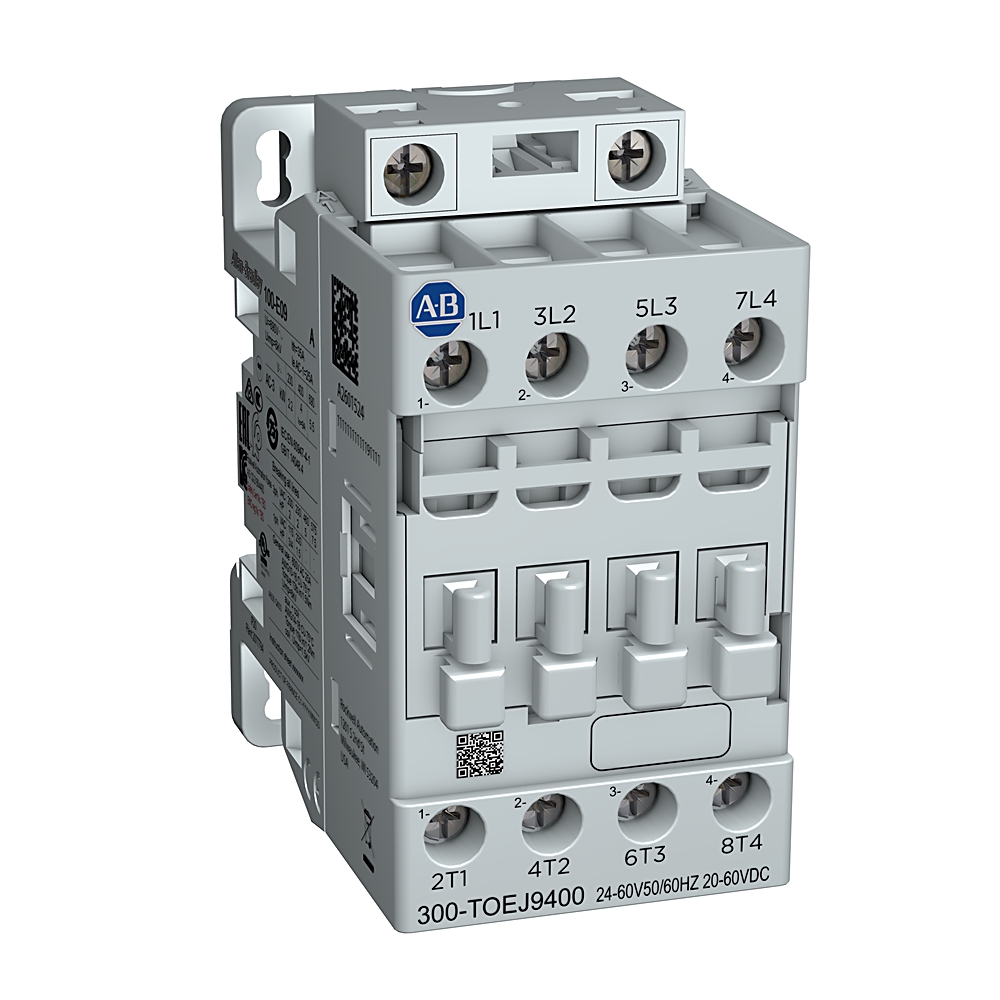

300-AOEJ9400

NEMA Size 0 Contactor

Lifecycle status: Active

Number of normally open contacts as main contact	4
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts, max	8
Operating time, pick-up	15 ms
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Mechanical life	13 mons of ops
Altitude, max	2000 m of installation site
Switching frequency, max	600 ops/hr, AC-1
Weight	AC/DC (electronic): 0.43 kg (0.95 lbs.)
Protection class	Contactor main contact: IP2X
Operating time, drop-out	10 ms

Voltage type for actuating	AC/DC
Rated control supply voltage at AC 50 Hz	24 V
Rated control supply voltage at AC 60 Hz	24 V
Rated control supply voltage at DC	20 V
Type of electrical connection of main circuit	Screw connection
Rated impulse voltage withstand (Uimp)	6 kV
Heat dissipation	4.7 W
NEMA size	00...8
Operating time, closing delay	15 ms
Operating time, opening delay	10 ms
Main current circuit resistance	0.46 mΩ
Operating volt amperes	8VA @ 50/60 Hz, sealed
Rated isolation voltage (Ui)	690V per IEC
Function	Energy-saving contactor
Energy-efficient coil, hold-in	1.7VA/1.7 W @ 24-60V AC, 20-60V DC
Energy-efficient coil, pick-up	16VA/12...16 W @ 24-60V AC, 20-60V DC
General purpose current (enclosed)	16A @ 600V per UL/CSA
Power dissipation	1 W per pole at Ie, AC-1, 400V
Short time withstand (Icw)	3-pole: 80A @ 30s (40 °C)
FLA	25A @ 600V, 3-phase per UL/CSA HVAC applications
Rated operational current and power (enclosed)	9.6 A @ 220-240V, 3-phase per UL/CSA
Available short circuit ampere	65,000A @ 480V max, circuit breaker, RMS symmetrical
Rated current	4-Pole: 30A @ 690V, AC-1, Ie at 40 °C
LRA	150 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
Electromagnetic compatibility	IEC 60947-1 - Environment A and B
Total power dissipation	2.6 W at Ie, AC-3, 400V, AC/DC control (120-250V)
Operating limits, dropout	(≤0.60) x Us @ DC control
Operating limits, pick-up	(0.80...1.1) x Us @ DC control
MCCB current rating	Type 2 (per IEC 60947-4-1): 28A @ 400V, 70 kA available fault current
DIN fuses (gG) current rating	Type 2 (per IEC 60947-4-1): 32A @ 400V, 100 kA available fault current
Rated voltage (Ue)	24V @ 48V, 110V @ 220V, 440V DC
Rated operational current and power	7.60A @ 460V AC, 500000 electrical ops, 3-phase per UL/CSA elevator duty
Switching of lighting loads	Tungsten lA: 25A @ 600V, 3-phase (break all lines) per UL/CSA
UL class RK5 fuses rating	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30A @ 600V, 5 kA available fault current
Rated operational current (Ie)	9A @ 690V, Star-Delta starting (50 Hz)
UL class J and CSA HRCI-J fuses rating	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30A @ 600V, 100 kA available fault current
UL inverse-time circuit breaker	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 5 kA available fault current
Switching of power transformers	Apparent power: 9 kVA @ 400V, AC-6a @ 50Hz (n = 30)
Rated operational power (Pe)	7.5 kW @ 690V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F)
Switching of DC loads	3-poles in series: 27A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
Optional accessories	Side- or front-mount auxiliary contacts, Mechanical interlocks, Terminal lugs, Terminal shields, Connecting bars
Features	Compact size, Sizes 00...5: AC/DC electronic coil with optional PLC interface, Sizes 6...8: AC/DC with PLC interface, Integrated surge suppression, Panel or DIN Rail mountable, Finger safe, Complete range of accessories, Meets global standards, Consists o
Contacts	Sizes 0...3: 3 power poles with internal N.O. or N.C. auxiliary contact or 4 power poles., Sizes 1...3: 3 power poles with side mounted N.O. / N.C. auxiliary contact or 4 power poles, Sizes 4...8: 3 main poles with 2 auxiliary contacts (1 N.O. and 1 N.C.)
Coil operating limits, pick-up	85...10% x voltage @ 50/60 Hz
Coil operating limits, dropout	30...60% x voltage @ 50/60 Hz
Coil	Electronic
Fuse type	H, J, R

Operating position	Vertical
Climatic withstand	Category B according to IEC 60947-1, annex Q
Ambient temperature	Storage range: -55...80 °C (-67...176 °F)
Humidity	Non-condensing: 5...95%

Required torque	Load: 22 lbin
Wire size	Load: 16...10 AWG for power terminals

Coil insulation class	Class F per IEC 60947-4-1

Drawings
3D STEP Model (STP)	Download (ZIP)
Dimensions Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DWG)

Drawings
3D STEP Model (STP) Download (ZIP)
Dimensions Drawing (PDF) Download (PDF)
Product Drawing Drawing (DWG)

General	Publication
Specification Sheet	--
Product Cutsheet	--
Circuit Protection Design and SCCR Tables	--

Technical Data	Publication
500-td014_-en-p	500-TD014
300-td003_-en-p	300-TD003

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

China CCC
Australian RCM
CE
Eurasion Economic Community
Korean KC
UL Listed
Safety
UKCA DOC
MOROCCO DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Number of normally open contacts as main contact	4
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts, max	8
Operating time, pick-up	15 ms
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Mechanical life	13 mons of ops
Altitude, max	2000 m of installation site
Switching frequency, max	600 ops/hr, AC-1
Weight	AC/DC (electronic): 0.43 kg (0.95 lbs.)
Protection class	Contactor main contact: IP2X
Operating time, drop-out	10 ms

Voltage type for actuating	AC/DC
Rated control supply voltage at AC 50 Hz	24 V
Rated control supply voltage at AC 60 Hz	24 V
Rated control supply voltage at DC	20 V
Type of electrical connection of main circuit	Screw connection
Rated impulse voltage withstand (Uimp)	6 kV
Heat dissipation	4.7 W
NEMA size	00...8
Operating time, closing delay	15 ms
Operating time, opening delay	10 ms
Main current circuit resistance	0.46 mΩ
Operating volt amperes	8VA @ 50/60 Hz, sealed
Rated isolation voltage (Ui)	690V per IEC
Function	Energy-saving contactor
Energy-efficient coil, hold-in	1.7VA/1.7 W @ 24-60V AC, 20-60V DC
Energy-efficient coil, pick-up	16VA/12...16 W @ 24-60V AC, 20-60V DC
General purpose current (enclosed)	16A @ 600V per UL/CSA
Power dissipation	1 W per pole at Ie, AC-1, 400V
Short time withstand (Icw)	3-pole: 80A @ 30s (40 °C)
FLA	25A @ 600V, 3-phase per UL/CSA HVAC applications
Rated operational current and power (enclosed)	9.6 A @ 220-240V, 3-phase per UL/CSA
Available short circuit ampere	65,000A @ 480V max, circuit breaker, RMS symmetrical
Rated current	4-Pole: 30A @ 690V, AC-1, Ie at 40 °C
LRA	150 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
Electromagnetic compatibility	IEC 60947-1 - Environment A and B
Total power dissipation	2.6 W at Ie, AC-3, 400V, AC/DC control (120-250V)
Operating limits, dropout	(≤0.60) x Us @ DC control
Operating limits, pick-up	(0.80...1.1) x Us @ DC control
MCCB current rating	Type 2 (per IEC 60947-4-1): 28A @ 400V, 70 kA available fault current
DIN fuses (gG) current rating	Type 2 (per IEC 60947-4-1): 32A @ 400V, 100 kA available fault current
Rated voltage (Ue)	24V @ 48V, 110V @ 220V, 440V DC
Rated operational current and power	7.60A @ 460V AC, 500000 electrical ops, 3-phase per UL/CSA elevator duty
Switching of lighting loads	Tungsten lA: 25A @ 600V, 3-phase (break all lines) per UL/CSA
UL class RK5 fuses rating	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30A @ 600V, 5 kA available fault current
Rated operational current (Ie)	9A @ 690V, Star-Delta starting (50 Hz)
UL class J and CSA HRCI-J fuses rating	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30A @ 600V, 100 kA available fault current
UL inverse-time circuit breaker	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 5 kA available fault current
Switching of power transformers	Apparent power: 9 kVA @ 400V, AC-6a @ 50Hz (n = 30)
Rated operational power (Pe)	7.5 kW @ 690V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F)
Switching of DC loads	3-poles in series: 27A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
Optional accessories	Side- or front-mount auxiliary contacts, Mechanical interlocks, Terminal lugs, Terminal shields, Connecting bars
Features	Compact size, Sizes 00...5: AC/DC electronic coil with optional PLC interface, Sizes 6...8: AC/DC with PLC interface, Integrated surge suppression, Panel or DIN Rail mountable, Finger safe, Complete range of accessories, Meets global standards, Consists o
Contacts	Sizes 0...3: 3 power poles with internal N.O. or N.C. auxiliary contact or 4 power poles., Sizes 1...3: 3 power poles with side mounted N.O. / N.C. auxiliary contact or 4 power poles, Sizes 4...8: 3 main poles with 2 auxiliary contacts (1 N.O. and 1 N.C.)
Coil operating limits, pick-up	85...10% x voltage @ 50/60 Hz
Coil operating limits, dropout	30...60% x voltage @ 50/60 Hz
Coil	Electronic
Fuse type	H, J, R

Operating position	Vertical
Climatic withstand	Category B according to IEC 60947-1, annex Q
Ambient temperature	Storage range: -55...80 °C (-67...176 °F)
Humidity	Non-condensing: 5...95%

Required torque	Load: 22 lbin
Wire size	Load: 16...10 AWG for power terminals

Coil insulation class	Class F per IEC 60947-4-1
