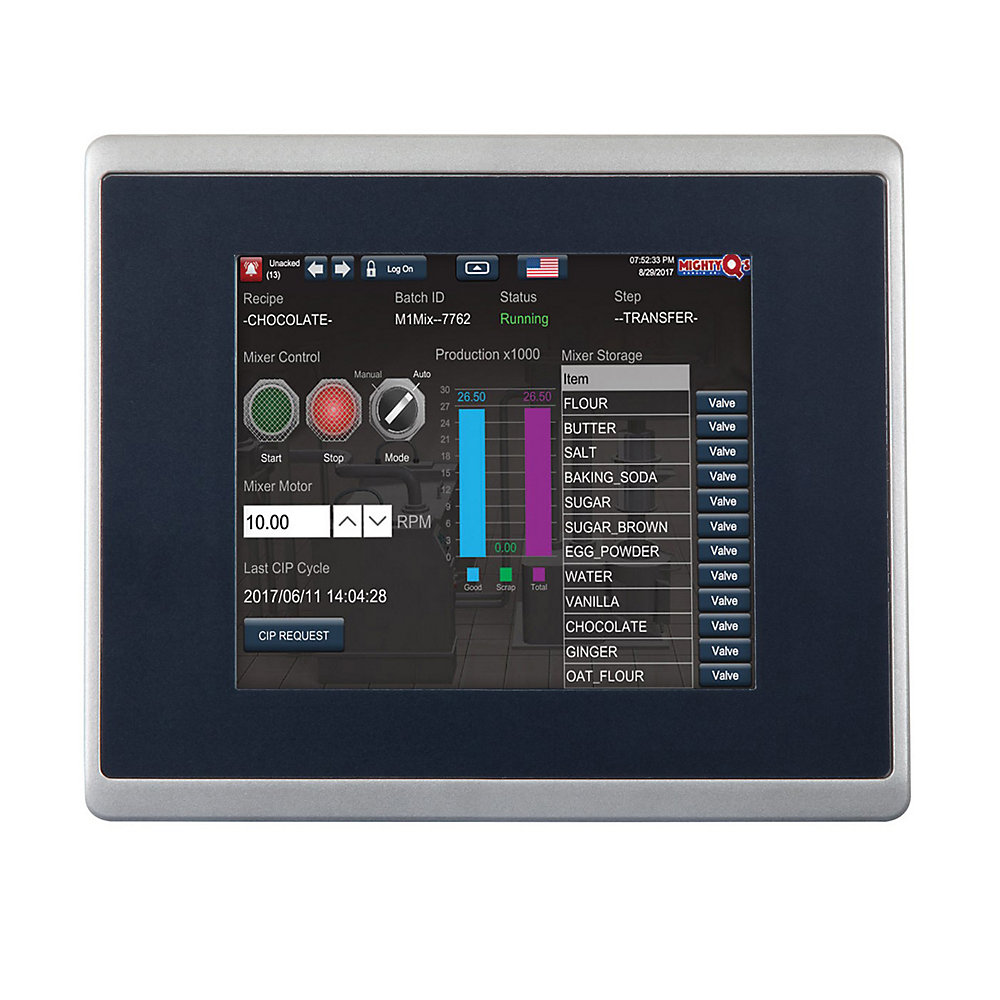

PanelView 5310 Graphic Terminal
Product at a glance
Product at a glance
| Number of HW-interfaces industrial Ethernet | 1 |
|---|---|
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Number of system buttons | 0 |
| Voltage type of supply voltage | DC |
| Number of function buttons, programmable | 0 |
| Suitable for safety functions | False |
| Supporting protocol for TCP/IP | True |
| Supporting protocol for Modbus | False |
| Supporting protocol for Data-Highway | False |
| With colour display | True |
| With numeric keyboard | False |
| With alpha numeric keyboard | False |
| With message indication | True |
| With message system (incl. buffer and confirmation) | False |
| Process value representation (output) possible | True |
| Process default value (input) possible | False |
| With recipes | False |
| With printer output | False |
| Additional software components, loadable | False |
| Supporting protocol for EtherNet/IP | True |
| Screen diagonal | 10.4 in |
| Supply voltage DC | 18 V |
| Touch technology | Resistive touch |
| Power consumption, max | 15 W |
| Power consumption, typical | 12 W |
| Backlight power consumption | 4 W |
| With Allen-Bradley brand marking | False |
| Aspect ratio | 4:3 |
| Display resolution | 800 x 600 SVGA |
| USB host port | 0.5A @ 5V DC (Type A) |
| Status indicator | STS (status, green), ERR (error, red) |
| Operator input | Touch |
| Input voltage, nom | 24V DC (18...30V DC), nonisolated DC power supply |
| Memory | RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects |
| Power supply | Supports safety extra low voltage and protected extra low voltage 24V DC supplies |
| Touch screen | Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g |
| Backlight | Type: Light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness |
| Ethernet ports | One 10/100Base-T, Auto MDI/MDI-X Ethernet port for controller communication |
| Software | Studio 5000 environment provides single portal to View Designer and Logix Designer applications |
| Secure Digital (SD) card slot | One SD card slot for storing application files, Replacement: Allen-Bradley part number 1784-SD1 (1 GB), 1784-SD2 (2 GB), 1784-SDHC8 (8 GB), and 1784-SDHC32 (32 GB) |
| USB ports | Host: one USB high-speed 2.0 host port (Type A) supports removable drives for external storage, Device: one high-speed 2.0 device port (Type B) supports connection to host computer (available in a future release) |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Number of buttons with LED | 0 |
| Supporting protocol for LON | False |
| Supporting protocol for ASI | False |
| Supporting protocol for PROFIBUS | False |
| Supporting protocol for CAN | False |
| Supporting protocol for INTERBUS | False |
| Supporting protocol for KNX | False |
| Supporting protocol for DeviceNet | False |
| Supporting protocol for SUCONET | False |
| Supporting protocol for other bus systems | False |
| Supporting protocol for SERCOS | False |
| Supporting protocol for INTERBUS-Safety | False |
| Radio standard Bluetooth | False |
| Radio standard Wi-Fi 802.11 | False |
| IO link master | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Supporting protocol for DeviceNet Safety | False |
| Supporting protocol for Foundation Fieldbus | False |
| Supporting protocol for PROFINET CBA | False |
| Supporting protocol for PROFINET IO | False |
| Supporting protocol for PROFIsafe | False |
| Supporting protocol for SafetyBUS p | False |
| Radio standard GPRS | False |
| Radio standard GSM | False |
| Radio standard UMTS | False |
| With SW interfaces | True |
| Type of display | TFT |
| Inrush current, max | 15 A |
| Brightness, typical | 300 cdb/m² |
| Color depth | 24-bit color graphics (16.7 mon colors) |
| Battery (real-time clock backup) | Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032) |
| Degree of protection (NEMA), front side | 13 |
|---|---|
| Degree of protection (IP), front side | IP66 |
| Operating temperature | 0 °C |
| Conformal coated | False |
| Power dissipation | 41 btu/hr |
| List of degrees of protection (NEMA) | 4X, 12, 13 |
| Shock | Operating: 15 g @ 11 ms, Nonoperating: 30 g @ 11 ms |
| Vibration | 0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz |
| Relative humidity | 5...95% noncondensing |
| Altitude, operating | 2000 m |
| Nonoperating temperature | -25 °C |
| Width of the front | 297 mm |
|---|---|
| Height of the front | 252 mm |
| Wall mounting/direct mounting | True |
| Mounted depth | 64 mm |
| Cutout dimensions, approx | Height: 224 mm (8.82 in), Width: 269 mm (10.59 in) |
| Rail mounting possible | False |
| Overall depth | 69.5 mm |
| Weight, approx | 3.35 g |
|---|---|
| View area | Width: 211 mm (8.3 in), Height: 158 mm (6.2 in) |
| Drawings | |
|---|---|
| 3D STP Model (STEP) | Download (ZIP) |
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP Model (STEP) Download (ZIP) |
| 2-Dimensional Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DXF) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Profile | 2715-PP001 |
| General | Product Information | -- |
| General | Terminals Cutout Template | -- |
| General | Product Cutsheet | -- |
| General | Technical Data | -- |
| General | User Manual | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library

- UL Listed
- CE
- Korean KC
- Australian RCM
This product was certified with the above certifications as of 2025-09-09. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Number of HW-interfaces industrial Ethernet | 1 |
|---|---|
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Number of system buttons | 0 |
| Voltage type of supply voltage | DC |
| Number of function buttons, programmable | 0 |
| Suitable for safety functions | False |
| Supporting protocol for TCP/IP | True |
| Supporting protocol for Modbus | False |
| Supporting protocol for Data-Highway | False |
| With colour display | True |
| With numeric keyboard | False |
| With alpha numeric keyboard | False |
| With message indication | True |
| With message system (incl. buffer and confirmation) | False |
| Process value representation (output) possible | True |
| Process default value (input) possible | False |
| With recipes | False |
| With printer output | False |
| Additional software components, loadable | False |
| Supporting protocol for EtherNet/IP | True |
| Screen diagonal | 10.4 in |
| Supply voltage DC | 18 V |
| Touch technology | Resistive touch |
| Power consumption, max | 15 W |
| Power consumption, typical | 12 W |
| Backlight power consumption | 4 W |
| With Allen-Bradley brand marking | False |
| Aspect ratio | 4:3 |
| Display resolution | 800 x 600 SVGA |
| USB host port | 0.5A @ 5V DC (Type A) |
| Status indicator | STS (status, green), ERR (error, red) |
| Operator input | Touch |
| Input voltage, nom | 24V DC (18...30V DC), nonisolated DC power supply |
| Memory | RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects |
| Power supply | Supports safety extra low voltage and protected extra low voltage 24V DC supplies |
| Touch screen | Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g |
| Backlight | Type: Light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness |
| Ethernet ports | One 10/100Base-T, Auto MDI/MDI-X Ethernet port for controller communication |
| Software | Studio 5000 environment provides single portal to View Designer and Logix Designer applications |
| Secure Digital (SD) card slot | One SD card slot for storing application files, Replacement: Allen-Bradley part number 1784-SD1 (1 GB), 1784-SD2 (2 GB), 1784-SDHC8 (8 GB), and 1784-SDHC32 (32 GB) |
| USB ports | Host: one USB high-speed 2.0 host port (Type A) supports removable drives for external storage, Device: one high-speed 2.0 device port (Type B) supports connection to host computer (available in a future release) |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Number of buttons with LED | 0 |
| Supporting protocol for LON | False |
| Supporting protocol for ASI | False |
| Supporting protocol for PROFIBUS | False |
| Supporting protocol for CAN | False |
| Supporting protocol for INTERBUS | False |
| Supporting protocol for KNX | False |
| Supporting protocol for DeviceNet | False |
| Supporting protocol for SUCONET | False |
| Supporting protocol for other bus systems | False |
| Supporting protocol for SERCOS | False |
| Supporting protocol for INTERBUS-Safety | False |
| Radio standard Bluetooth | False |
| Radio standard Wi-Fi 802.11 | False |
| IO link master | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Supporting protocol for DeviceNet Safety | False |
| Supporting protocol for Foundation Fieldbus | False |
| Supporting protocol for PROFINET CBA | False |
| Supporting protocol for PROFINET IO | False |
| Supporting protocol for PROFIsafe | False |
| Supporting protocol for SafetyBUS p | False |
| Radio standard GPRS | False |
| Radio standard GSM | False |
| Radio standard UMTS | False |
| With SW interfaces | True |
| Type of display | TFT |
| Inrush current, max | 15 A |
| Brightness, typical | 300 cdb/m² |
| Color depth | 24-bit color graphics (16.7 mon colors) |
| Battery (real-time clock backup) | Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032) |
| Degree of protection (NEMA), front side | 13 |
|---|---|
| Degree of protection (IP), front side | IP66 |
| Operating temperature | 0 °C |
| Conformal coated | False |
| Power dissipation | 41 btu/hr |
| List of degrees of protection (NEMA) | 4X, 12, 13 |
| Shock | Operating: 15 g @ 11 ms, Nonoperating: 30 g @ 11 ms |
| Vibration | 0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz |
| Relative humidity | 5...95% noncondensing |
| Altitude, operating | 2000 m |
| Nonoperating temperature | -25 °C |
| Width of the front | 297 mm |
|---|---|
| Height of the front | 252 mm |
| Wall mounting/direct mounting | True |
| Mounted depth | 64 mm |
| Cutout dimensions, approx | Height: 224 mm (8.82 in), Width: 269 mm (10.59 in) |
| Rail mounting possible | False |
| Overall depth | 69.5 mm |
| Weight, approx | 3.35 g |
|---|---|
| View area | Width: 211 mm (8.3 in), Height: 158 mm (6.2 in) |
