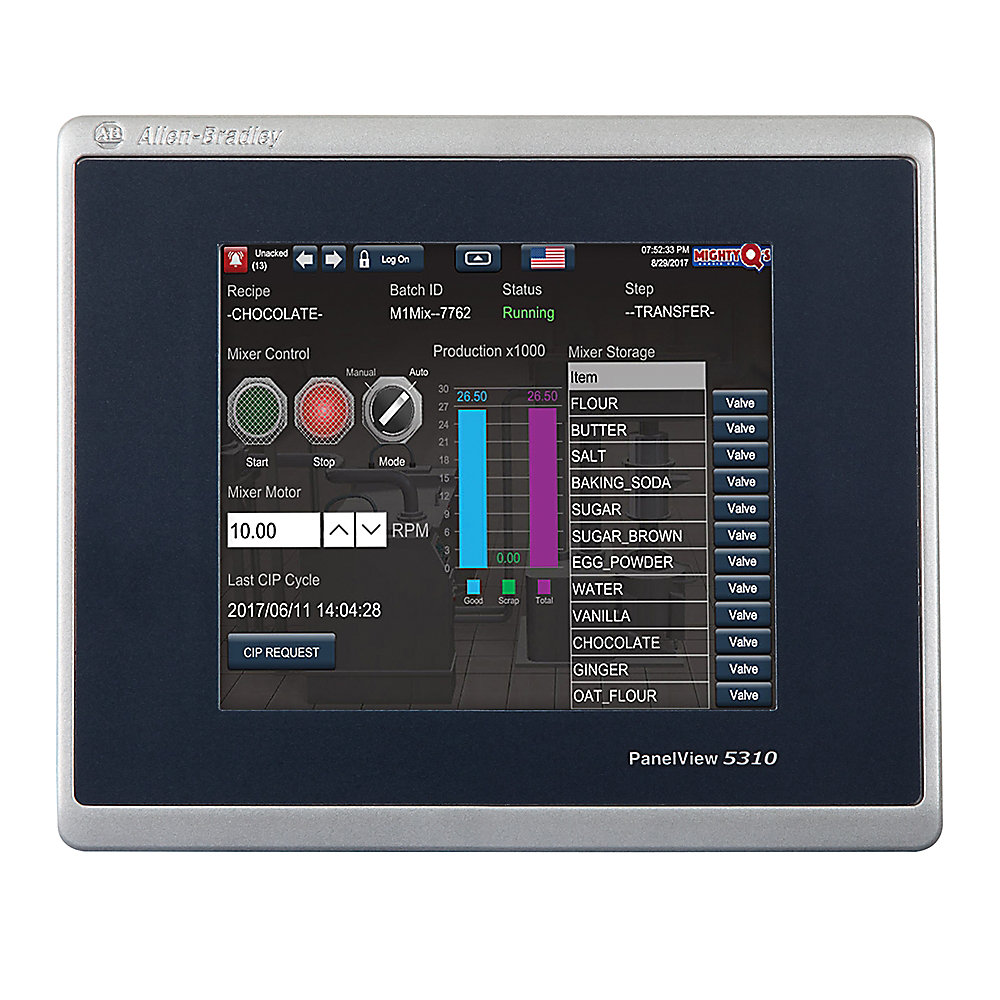

| Number of HW-interfaces industrial Ethernet | 1 None |
|---|---|
| Number of HW-interfaces RS-232 | 0 None |
| Number of HW-interfaces RS-422 | 0 None |
| Number of HW-interfaces RS-485 | 0 None |
| Number of grey-scales/blue-scales of display | 0 None |
| Number of system buttons | 0 None |
| Voltage type of supply voltage | DC |
| Number of function buttons, programmable | 0 None |
| Suitable for safety functions | False |
| Supporting protocol for TCP/IP | True |
| Supporting protocol for Modbus | False |
| Supporting protocol for Data-Highway | False |
| With colour display | True |
| With numeric keyboard | False |
| With alpha numeric keyboard | False |
| With message indication | True |
| With message system (incl. buffer and confirmation) | False |
| Process value representation (output) possible | True |
| Process default value (input) possible | False |
| With recipes | False |
| With printer output | False |
| Additional software components, loadable | False |
| Supporting protocol for EtherNet/IP | True |
| Screen diagonal | 5.7 in |
| Supply voltage DC | 18 V |
| Touch technology | Resistive touch |
| Power consumption, max | 13 W |
| Power consumption, typical | 9 W |
| Backlight power consumption | 2.4 W |
| With Allen-Bradley brand marking | True |
| Aspect ratio | 4:3 |
| Display resolution | 640 x 480 VGA |
| USB host port | 0.5A @ 5V DC (Type A) |
| Status indicator | STS (status, green), ERR (error, red) |
| Operator input | Touch |
| Input voltage, nom | 24V DC (18...30V DC), nonisolated DC power supply |
| Memory | RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects |
| Power supply | Supports safety extra low voltage and protected extra low voltage 24V DC supplies |
| Touch screen | Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g |
| Backlight | Type: Light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness |
| Ethernet ports | One 10/100Base-T, Auto MDI/MDI-X Ethernet port for controller communication |
| Software | Studio 5000 environment provides single portal to View Designer and Logix Designer applications |
| Secure Digital (SD) card slot | One SD card slot for storing application files, Replacement: Allen-Bradley part number 1784-SD1 (1 GB), 1784-SD2 (2 GB), 1784-SDHC8 (8 GB), and 1784-SDHC32 (32 GB) |
| USB ports | Host: one USB high-speed 2.0 host port (Type A) supports removable drives for external storage, Device: one high-speed 2.0 device port (Type B) supports connection to host computer (available in a future release) |
| Number of HW-interfaces serial TTY | 0 None |
| Number of HW-interfaces parallel | 0 None |
| Number of HW-interfaces other | 0 None |
| Number of interfaces PROFINET | 0 None |
| Number of HW-interfaces Wireless | 0 None |
| Number of buttons with LED | 0 None |
| Supporting protocol for LON | False |
| Supporting protocol for ASI | False |
| Supporting protocol for PROFIBUS | False |
| Supporting protocol for CAN | False |
| Supporting protocol for INTERBUS | False |
| Supporting protocol for KNX | False |
| Supporting protocol for DeviceNet | False |
| Supporting protocol for SUCONET | False |
| Supporting protocol for other bus systems | False |
| Supporting protocol for SERCOS | False |
| Supporting protocol for INTERBUS-Safety | False |
| Radio standard Bluetooth | False |
| Radio standard Wi-Fi 802.11 | False |
| IO link master | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Supporting protocol for DeviceNet Safety | False |
| Supporting protocol for Foundation Fieldbus | False |
| Supporting protocol for PROFINET CBA | False |
| Supporting protocol for PROFINET IO | False |
| Supporting protocol for PROFIsafe | False |
| Supporting protocol for SafetyBUS p | False |
| Radio standard GPRS | False |
| Radio standard GSM | False |
| Radio standard UMTS | False |
| With SW interfaces | True |
| Type of display | TFT |
| Inrush current, max | 15 A |
| Brightness, typical | 300 cdb/m² |
| Color depth | 24-bit color graphics (16.7 mon colors) |
| Battery (real-time clock backup) | Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032) |
| Degree of protection (NEMA), front side | 13 |
|---|---|
| Degree of protection (IP), front side | IP66 |
| Operating temperature | 0 °C |
| Conformal coated | True |
| Power dissipation | 31 btu/hr |
| List of degrees of protection (NEMA) | 4X, 12, 13 |
| Shock | Operating: 15 g @ 11 ms, Nonoperating: 30 g @ 11 ms |
| Vibration | 0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz |
| Relative humidity | 5...95% noncondensing |
| Altitude, operating | 2000 m |
| Nonoperating temperature | -25 °C |
| Width of the front | 186 mm |
|---|---|
| Height of the front | 153 mm |
| Wall mounting/direct mounting | True |
| Mounted depth | 64 mm |
| Cutout dimensions, approx | Height: 123 mm (4.84 in), Width: 156 mm (6.14 in) |
| Rail mounting possible | False |
| Overall depth | 69.5 mm |
| Weight, approx | 0.79 g |
|---|---|
| View area | Width: 115 mm (4.5 in), Height: 86 mm (3.4 in) |
Sales Info
| Repairable | REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 17.8 |
| Lead Time | 15 |
| Dimension Width | 23.7 |
| Dimension Length | 30.6 |
| Stock Status | NON_STOCKED |
| Weight | 1.59 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| 3D STP Model (STEP) | Download (ZIP) |
| Drawings |
|---|
| 2-Dimensional Drawing (PDF) Download (PDF) |
| 3D STP Model (STEP) Download (ZIP) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Information | 2713P-PC001 |
| General | Technical Data | 2713P-TD001 |
| General | Product Cutsheet | -- |
| General | User Manual | 2713P-UM001 |
| General | Terminals Cutout Template | 2713P-DS001 |
