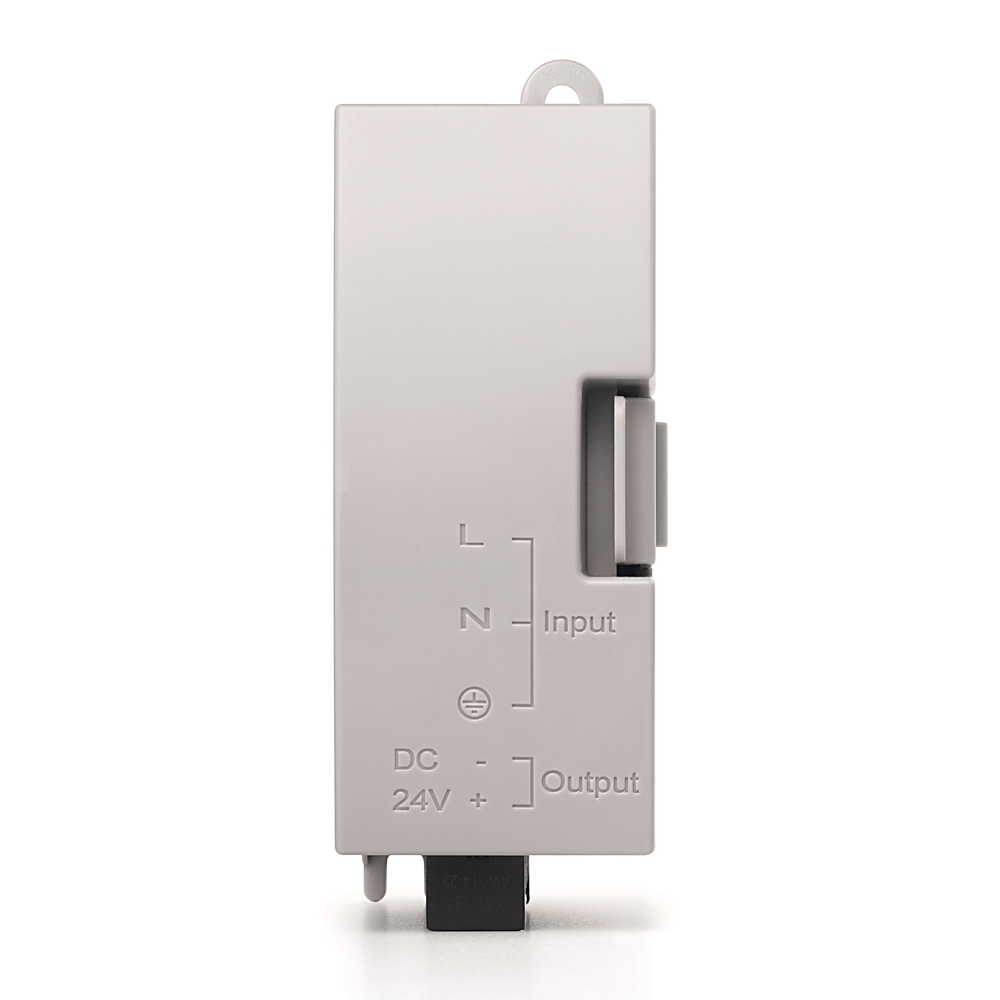

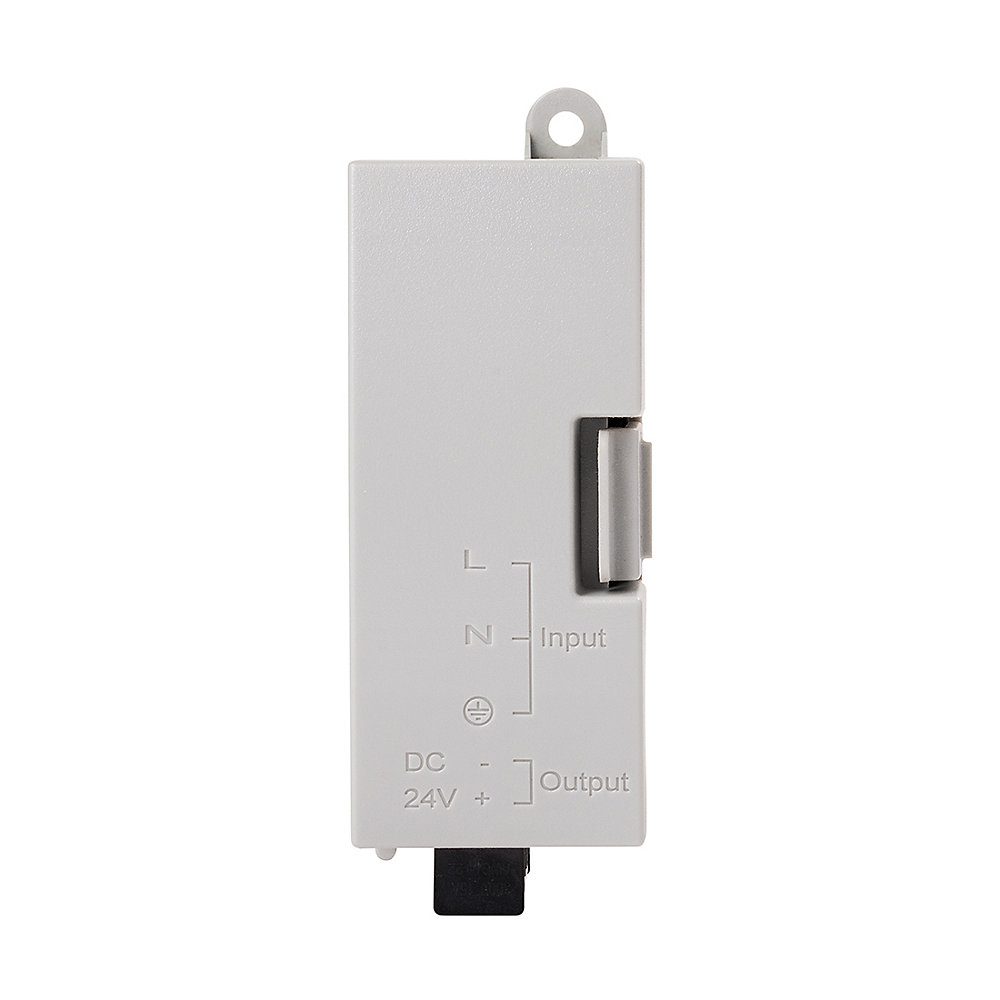

| Width | 39 mm |
|---|---|
| Height | 90 mm |
| Depth | 75 mm |
| Insulation stripping length | 5 mm |
|---|---|
| Enclosure type rating | Meets IP20 |
| Weight | Approx 0.2 kg (0.44 lb) |
| North American temperature code | T4 |
|---|
| Power consumption (Output power) | 21.6 W @ 50 °C, 12 W @ 65 °C |
|---|---|
| Supply voltage | 100V...120V AC @ 0.7A, 200...240V AC @ 0.4A |
| Supply power | 24V DC @ 0.9A @ 50 °C, 24V DC @ 0.5A @ 65 °C |
| Inrush current, max | 25A @ 132V for 10 ms, 40A @ 265V for 10 ms |
| Output rating | 24V @ 0.9A, 21.6 W @ 50 °C, 24V @ 0.5A, 12 W @ 65 °C |
| Power dissipation (Input power) | 27 W (115V AC), 26.7 W (230V AC) @ 50 °C, 15.4 W (115V AC), 15.2 W (230V AC) @ 65 °C |
| Terminal screw torque | 0.49...0.59 Nm (4.3...5.2 in-lb) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver) |
| Isolation voltage | 250V (continuous), primary to sary: reinforced insulation type, Type tested for 60s @ 2300V AC primary to sary and 1350V AC primary to earth ground. |
| Wire size | 0.32...2.1 mm² (22...14 AWG) solid copper wire or, 0.32...1.3 mm² (22...16 AWG) stranded copper wire, Rated at 90 °C (194 °F) insulation max |
| Suitable for safety functions | False |
| Redundancy | False |
| Supply frequency | 47...63 Hz |
| Wiring category | 2 - on power ports |
| Line loss ride through | 10...3000 ms @ 88V AC |
| Vibration | IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz |
|---|---|
| Relative humidity | IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing |
| Shock | Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock) |
| Operating temperature | -20...65 °C (-4...149 °F), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
| Radiated RF immunity | IEC 61000-4-3: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz 10 V/m with 200 Hz 50% Pulse @ 900 MHz and 1890 MHz 10 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| Voltage variation | IEC 61000-4-11: 30% dips for 25 cycles, 60% dips for 10 cycles, 100% dips for 0.5 and 1 cycles, >95% interruptions for 250 cycles |
| Surrounding air temperature, max | 65 °C |
| Emissions | CISPR 11 Group 1, Class A |
| EFT/B immunity | IEC 61000-4-4: ±2kV @ 5kHz on power ports |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Surge transient immunity | IEC 61000-4-5: ±1 kV line-line(DM) and ±2 kV line-earth(CM) on power ports |
| Storage temperature | -40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) |
