2080-OF2
Micro800 2 Point Analog Output Plug-In
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Description
2080 Micro800 System, 2-ch V/I Analog Output Unipolar 0-10V/0-20mA (non-isolated)
Preferred
2080-OF2

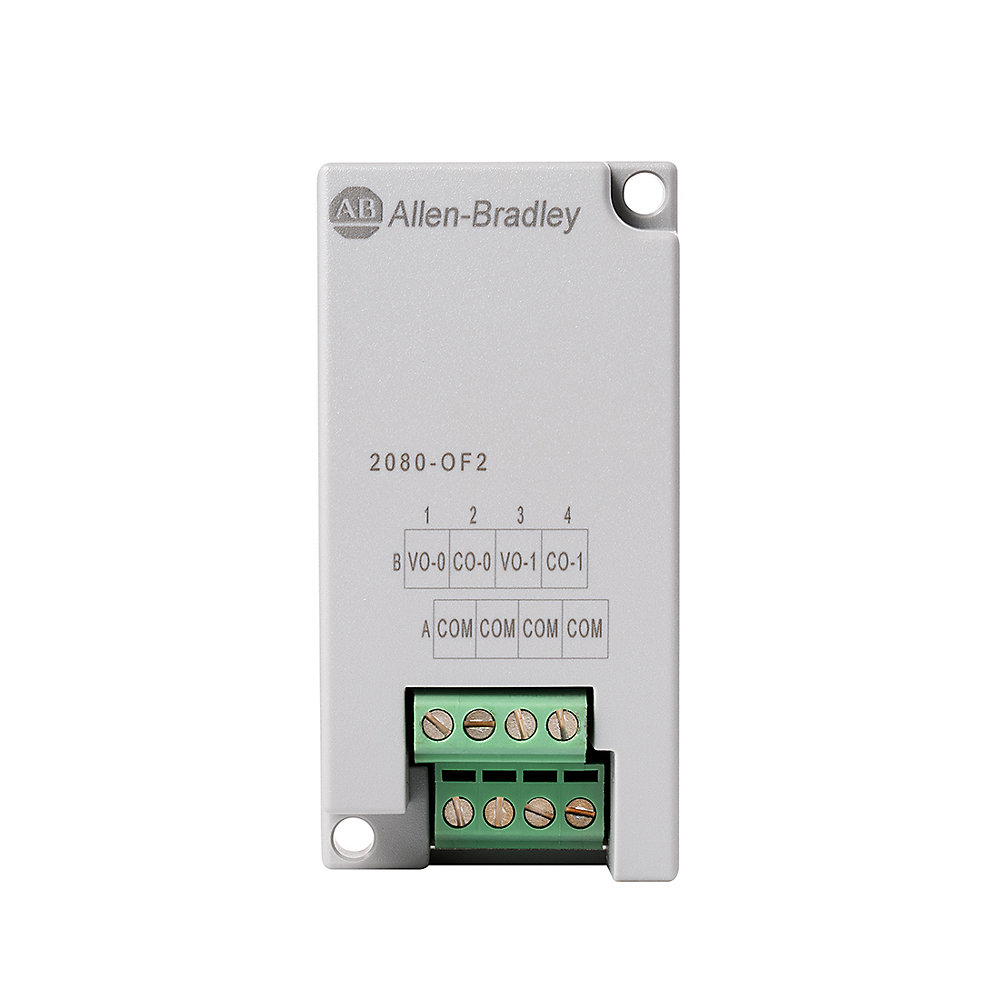

Micro800 2 Point Analog Output Plug-In
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Description
2080 Micro800 System, 2-ch V/I Analog Output Unipolar 0-10V/0-20mA (non-isolated)
Product Details
Look for SER on the product label to find your product series. To find information specific to your product, scan the QR code on the product label.
A
Overview
Electrical & Connectivity
General Features
Power & Electrical Characteristics
Inputs & Outputs (I/O)
Compliance & Environment
Standards & Protection
Physical Characteristics
Mechanical
Technical Specifications
General Specifications
Sustainability
Lifecycle Assessment
Substance Disclosures
Drawings
Documents
Certifications
Alternative Products
Technotes
| Unique Product Identifier |
2080-OF2
|
|---|---|
| UPC |
885630058412
|
| Estimated Lead Time |
5 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Singapore
|
| I/O Isolation |
None
|
|---|---|
| I/O Status Indication |
None
|
| Temperature Rating |
-20…65 °C (-4…149 °F)
|
| Analogue inputs configurable |
False
|
|---|---|
| Analogue outputs configurable |
True
|
| Capacitive load, max |
0.1 µF @ voltage outputs
|
| Channel to channel isolation |
Non-isolation
|
| Current load on voltage output, max |
10 mA
|
| Current range |
0 mA
|
| D/A Conversion rate (all channels), max |
2.5 ms
|
| Inductive load, max |
0.01 mH @ current outputs
|
| Input group to bus isolation |
Non-isolation
|
| Input signal, configurable |
False
|
| Input, current |
False
|
| Input, resistance thermometer |
False
|
| Input, resistor |
False
|
| Input, thermocouple |
False
|
| Input, voltage |
False
|
| Number of analogue outputs |
2
|
| Open and short-circuit protection |
True
|
| Output count range |
0 to 65535
|
| Output error |
Voltage: ±1.5% @ over full temperature range, -20...65°C (-4...149°F), Current: ±2.0% @ over full temperature range, -20...65°C (-4...149°F)
|
| Output overvoltage protection |
True
|
| Output signal configurable |
True
|
| Output, current |
True
|
| Output, voltage |
True
|
| Overall accuracy |
Voltage terminal: ±1% full scale @ 25°C, Current terminal: ±1% full scale @ 25°C
|
| Recommended maximum shielded cable length |
10 m
|
| Resolution of the analogue outputs |
12 bit
|
| SIL according to IEC 61508 |
None
|
| Step response to 63% |
5 ms
|
| Suitable for safety functions |
False
|
| Type of electric connection |
Screw connection
|
| Voltage ranges |
0
|
| Wire size |
Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum
|
Output Signals
| Load range on voltage output |
> 1k Ω @ 10V DC
|
|---|---|
| Non-linearity |
±0.1% @ in % full scale
|
| Resistive load on current output |
0...500 Ω (includes wire resistance)
|
| Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
|---|---|
| EFT/B immunity |
IEC 61000-4-4: ±2kV @ 5kHz on shielded ports
|
| ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
|
| Emissions |
CISPR 11 (IEC 61000-6-4): Class A
|
| Nonoperating temperature |
-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
|
| North American temperature code |
T4
|
| Operating altitude |
2000 m
|
| Operating temperature |
-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
|
| Power consumption |
<60mA @ 24V
|
| Radiated RF immunity |
IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
|
| Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
|
| Surge transient immunity |
IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports
|
| Surrounding air temperature, max |
65 °C
|
Mechanical
| Mounting torque |
0.2 nm
|
|---|---|
| Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
|
| Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
|
| Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
|
| Repeatability |
±0.1% @ in % full scale
|
|---|
| Cradle To Grave |
63.8 kg CO2 eq
|
|---|---|
| Cradle To Gate |
1.77 kg CO2 eq
|
| Database Used |
Ecoinvent 3.10
|
| Impact Assessment Method |
EF 3.0 (Environmental Footprint) ESPR aligned
|
| LCA Method |
ISO 14040/44 compliant
|
| Use Phase Electricity |
European Average Grid Mix (EU-40)
|
The LCA model used to generate the sustainability results has been independently reviewed by a 3rd party in accordance with ISO 14071 and the EU Product Environmental Footprint (PEF) framework.
| Environmental Compliance | |
|---|---|
| SVHC Information |
| Drawings | |
|---|---|
| 3D STP (STEP) Model | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP (STEP) Model Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| Brochure | -- |
| Product Cutsheet | -- |
| Wiring Diagram | -- |
| Installation Guide | -- |
| User Manual | Publication |
|---|---|
| 2080-um004_-en-e | 2080-UM004 |
| Micro800 Plug-in Modules User Manual | 2080-UM002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
This product was certified with the above certifications as of 2026-08-12. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Items Per Page:
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Overview
| Unique Product Identifier |
2080-OF2
|
|---|---|
| UPC |
885630058412
|
| Estimated Lead Time |
5 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Singapore
|
Electrical & Connectivity
| I/O Isolation |
None
|
|---|---|
| I/O Status Indication |
None
|
| Temperature Rating |
-20…65 °C (-4…149 °F)
|
| Analogue inputs configurable |
False
|
|---|---|
| Analogue outputs configurable |
True
|
| Capacitive load, max |
0.1 µF @ voltage outputs
|
| Channel to channel isolation |
Non-isolation
|
| Current load on voltage output, max |
10 mA
|
| Current range |
0 mA
|
| D/A Conversion rate (all channels), max |
2.5 ms
|
| Inductive load, max |
0.01 mH @ current outputs
|
| Input group to bus isolation |
Non-isolation
|
| Input signal, configurable |
False
|
| Input, current |
False
|
| Input, resistance thermometer |
False
|
| Input, resistor |
False
|
| Input, thermocouple |
False
|
| Input, voltage |
False
|
| Number of analogue outputs |
2
|
| Open and short-circuit protection |
True
|
| Output count range |
0 to 65535
|
| Output error |
Voltage: ±1.5% @ over full temperature range, -20...65°C (-4...149°F), Current: ±2.0% @ over full temperature range, -20...65°C (-4...149°F)
|
| Output overvoltage protection |
True
|
| Output signal configurable |
True
|
| Output, current |
True
|
| Output, voltage |
True
|
| Overall accuracy |
Voltage terminal: ±1% full scale @ 25°C, Current terminal: ±1% full scale @ 25°C
|
| Recommended maximum shielded cable length |
10 m
|
| Resolution of the analogue outputs |
12 bit
|
| SIL according to IEC 61508 |
None
|
| Step response to 63% |
5 ms
|
| Suitable for safety functions |
False
|
| Type of electric connection |
Screw connection
|
| Voltage ranges |
0
|
| Wire size |
Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum
|
Output Signals
| Load range on voltage output |
> 1k Ω @ 10V DC
|
|---|---|
| Non-linearity |
±0.1% @ in % full scale
|
| Resistive load on current output |
0...500 Ω (includes wire resistance)
|
Compliance & Environment
| Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
|---|---|
| EFT/B immunity |
IEC 61000-4-4: ±2kV @ 5kHz on shielded ports
|
| ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
|
| Emissions |
CISPR 11 (IEC 61000-6-4): Class A
|
| Nonoperating temperature |
-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
|
| North American temperature code |
T4
|
| Operating altitude |
2000 m
|
| Operating temperature |
-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
|
| Power consumption |
<60mA @ 24V
|
| Radiated RF immunity |
IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
|
| Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
|
| Surge transient immunity |
IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports
|
| Surrounding air temperature, max |
65 °C
|
Physical Characteristics
Mechanical
| Mounting torque |
0.2 nm
|
|---|---|
| Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
|
| Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
|
| Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
|
Technical Specifications
| Repeatability |
±0.1% @ in % full scale
|
|---|
Sustainability
| Cradle To Grave |
63.8 kg CO2 eq
|
|---|---|
| Cradle To Gate |
1.77 kg CO2 eq
|
| Database Used |
Ecoinvent 3.10
|
| Impact Assessment Method |
EF 3.0 (Environmental Footprint) ESPR aligned
|
| LCA Method |
ISO 14040/44 compliant
|
| Use Phase Electricity |
European Average Grid Mix (EU-40)
|
The LCA model used to generate the sustainability results has been independently reviewed by a 3rd party in accordance with ISO 14071 and the EU Product Environmental Footprint (PEF) framework.
