2080-IF4

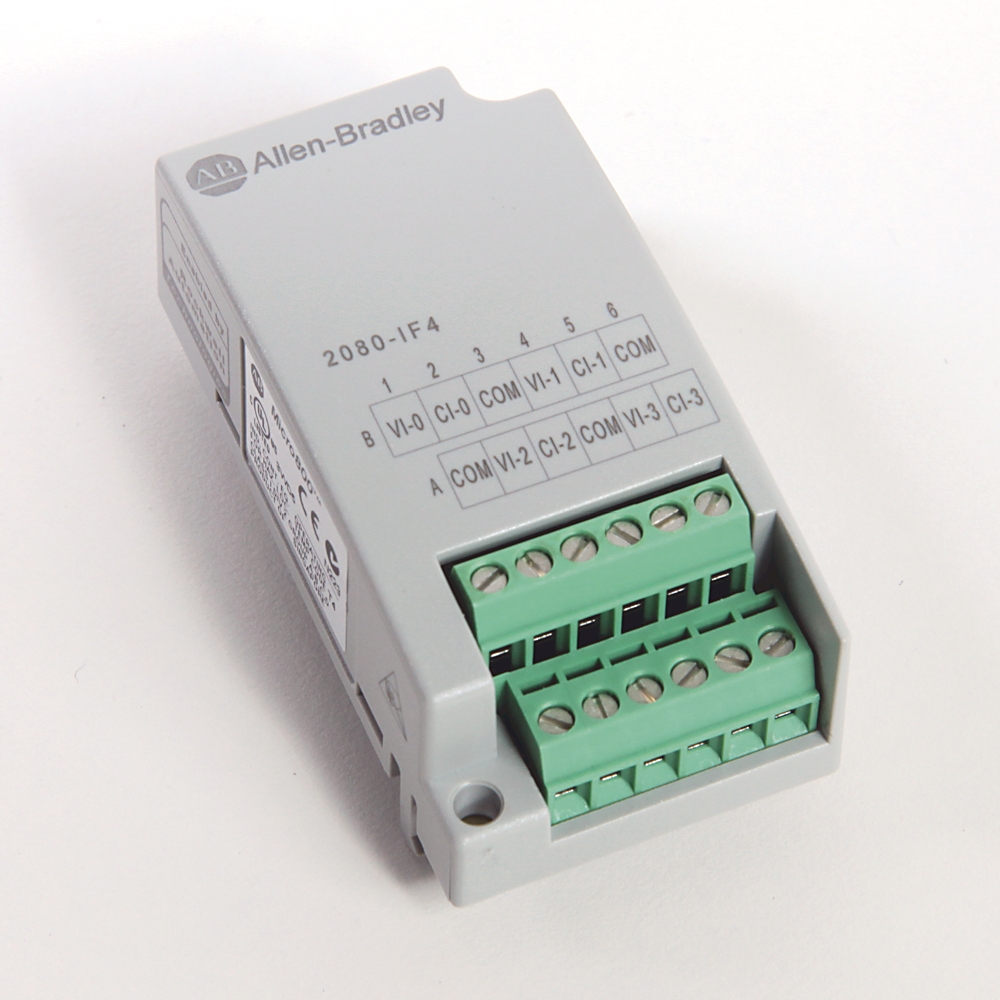

Micro800 4 Point Analog Input Plug-In
Serial #:
This product has not been verified. Please register your product to confirm authenticity.
Lifecycle status:
Active
Lifecycle status:
Active
Description
2080 Micro800 System, 4-ch V/I Analog Input Unipolar 0-10V/0-20mA (non-isolated)
Product Details
Look for SER on the product label to find your product series. To find information specific to your product, scan the QR code on the product label.
A
Overview
Electrical & Connectivity
General Features
Power & Electrical Characteristics
Inputs & Outputs (I/O)
Compliance & Environment
Standards & Protection
Physical Characteristics
General
Technical Specifications
General Specifications
Sustainability
Lifecycle Assessment
Substance Disclosures
Drawings
Documents
Certifications
Alternative Products
Technotes
| Unique Product Identifier |
2080-IF4
|
|---|---|
| UPC |
885630058399
|
| Estimated Lead Time |
5 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Singapore
|
The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.
| Consist Of |
Screws
|
|---|---|
| I/O Status Indication |
None
|
| Number of analogue inputs |
4
|
|---|---|
| Resolution of the analogue inputs |
12 bit
|
| Input, current |
True
|
| Input, voltage |
True
|
| Input, resistor |
False
|
| Input, resistance thermometer |
False
|
| Input, thermocouple |
False
|
| Input signal, configurable |
False
|
| Output, current |
False
|
| Output, voltage |
False
|
| Output signal configurable |
False
|
| Analogue inputs configurable |
True
|
| Analogue outputs configurable |
False
|
| Type of electric connection |
Screw connection
|
| Data range |
0 to 65535
|
| Channel to channel isolation |
Non-isolation
|
| Update time |
180 ms per enabled channel
|
| Input group to bus isolation |
No isolation
|
| Module error |
Voltage: ±1.5% @ over full temperature range, -20...65°C (-4...149°F), Current: ±2.0% @ over full temperature range, -20...65°C (-4...149°F)
|
| Wire size |
Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum
|
| Suitable for safety functions |
False
|
| SIL according to IEC 61508 |
None
|
| Recommended maximum shielded cable length |
10 m
|
| Voltage ranges |
0
|
| Current range |
0 mA
|
| Field input calibration |
Not required
|
| Overall accuracy |
Voltage terminal: ±1% full scale @ 25°C, Current terminal: ±1% full scale @ 25°C
|
| Non-linearity |
±0.1% @ in % full scale
|
|---|---|
| Input impedance |
>100 kΩ for voltage mode, 250 Ω for current mode
|
| Surrounding air temperature, max |
65 °C
|
|---|---|
| North American temperature code |
T4
|
| Power consumption |
<60mA @ 3.3V
|
| Emissions |
CISPR 11 (IEC 61000-6-4): Class A
|
| ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
|
| EFT/B immunity |
IEC 61000-4-4: ±2kV @ 5kHz on shielded ports
|
| Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
|
| Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
| Surge transient immunity |
IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports
|
| Operating temperature |
-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
|
| Radiated RF immunity |
IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
|
| Operating altitude |
2000 m
|
| Nonoperating temperature |
-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
|
| Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
|
|---|---|
| Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
|
| Mounting torque |
0.2 nm
|
| Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
|
| Repeatability |
±0.1%
|
|---|
| LCA Method |
ISO 14040/44 compliant
|
|---|---|
| Impact Assessment Method |
EF 3.0 (Environmental Footprint) ESPR aligned
|
| Database Used |
Ecoinvent 3.10
|
| Use Phase Electricity |
European Average Grid Mix (EU-40)
|
| Cradle To Grave |
1.15E+01 kg CO2 eq
|
| Cradle To Gate |
2.46E+00 kg CO2 eq
|
The LCA model used to generate the sustainability results has been independently reviewed by a 3rd party in accordance with ISO 14071 and the EU Product Environmental Footprint (PEF) framework.
| Environmental Compliance | |
|---|---|
| SVHC Information |
| Drawings | |
|---|---|
| 3D STP (STEP) Model | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP (STEP) Model Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| Brochure | -- |
| Wiring Diagram | -- |
| Product Cutsheet | -- |
| Installation Guide | -- |
| User Manual | Publication |
|---|---|
| 2080-um004_-en-e | 2080-UM004 |
