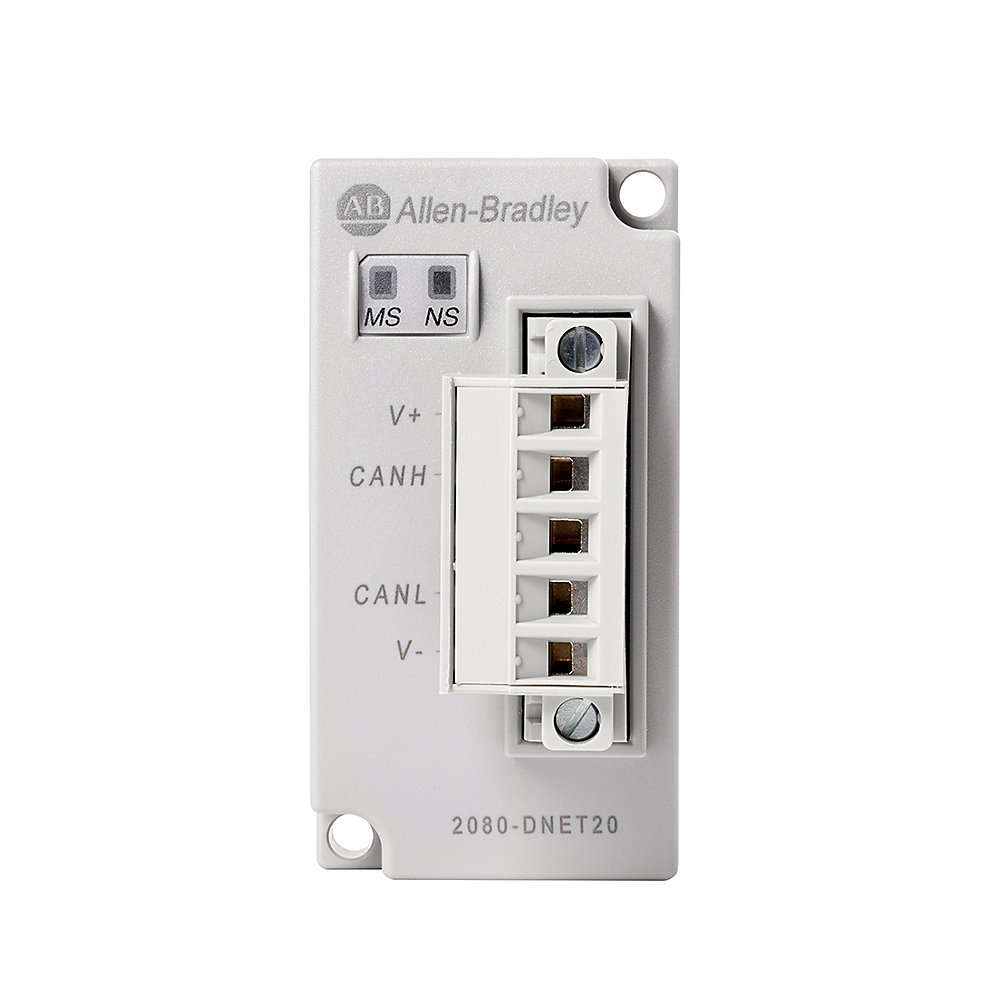

| Communication Protocol |
DeviceNet
|
|---|---|
| Power Supply |
24V DC
|
| Temperature Rating |
-20…65 °C (-4…149 °F)
|
| Suitable for safety functions |
False
|
|---|---|
| With optical interface |
False
|
| Supporting protocol for TCP/IP |
False
|
| Supporting protocol for DeviceNet |
True
|
| Supporting protocol for other bus systems |
False
|
| Redundancy |
False
|
| IO link master |
False
|
| Supporting protocol for DeviceNet Safety |
False
|
| Supporting protocol for EtherNet/IP |
False
|
| Power dissipation, max |
1.44 W
|
| Data transmission type |
DeviceNet
|
| Enclosure type rating |
Meets IP20
|
| Number of nodes, max |
20 nodes for I/O ops
|
| Wire category |
1 - on power ports
|
| Wire size |
0.25...2.5 mm2 (24...14 AWG) solid copper wire, 0.25...2.5 mm2 (24...14 AWG) stranded copper wire, Rated @ 75 °C (167 °F ), or greater, 1.2 mm (3/64 in.) insulation maximum
|
| Isolation voltage |
50V (continuous), Type tested for 60 s @ 500V AC
|
| Supporting protocol for LON |
False
|
| Supporting protocol for ASI |
False
|
| Supporting protocol for PROFIBUS |
False
|
| Supporting protocol for CAN |
False
|
| Supporting protocol for INTERBUS |
False
|
| Supporting protocol for KNX |
False
|
| Supporting protocol for Modbus |
False
|
| Supporting protocol for Data-Highway |
False
|
| Supporting protocol for SUCONET |
False
|
| With potential separation |
False
|
| Supporting protocol for SERCOS |
False
|
| Supporting protocol for INTERBUS-Safety |
False
|
| Supporting protocol for AS-Interface Safety at Work |
False
|
| Supporting protocol for Foundation Fieldbus |
False
|
| Supporting protocol for PROFINET CBA |
False
|
| Supporting protocol for PROFINET IO |
False
|
| Supporting protocol for PROFIsafe |
False
|
| Supporting protocol for SafetyBUS p |
False
|
| SIL according to IEC 61508 |
None
|
| Preferred power supply |
1606-XLSDNET4
|
| Backplane power consumption |
50mA @ 24V DC
|
| DeviceNet current |
24V DC @ 300mA Class 2
|
| Network protocol |
I/O Slave messaging: poll command
|
| DeviceNet status indicators |
Module status - red/green Network status - red/green
|
| DeviceNet communication rate, max |
125 Kbps - 420 m (1378 ft.), 250 Kbps - 200 m (656 ft.), 500 Kbps - 75 m (246 ft.)
|
| Width |
31.5 mm
|
|---|---|
| Height |
62 mm
|
| Depth |
20 mm
|
| Weight |
35 g
|
| Surrounding air temperature, max |
65 °C
|
|---|---|
| Emissions |
CISPR 11 (IEC 61000-6-4): Class A
|
| Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
|
| ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
|
| EFT/B immunity |
IEC 61000-4-4: ± 2kV @ 5kHz on communication ports
|
| Relative humidity |
IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
|
| Shock |
Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock)
|
| Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
| Surge transient immunity |
IEC 61000-4-5: ± 2 kV line-earth(CM) on communication ports
|
| Nonoperating temperature |
-40...85 °C (-40...185 °F), IEC60068-2-1 (Test Ad, operating cold), IEC60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
|
| Operating temperature |
-20...65 °C (-4...149 °F), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
|
| Radiated RF immunity |
IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
|
| North American temperature code |
T4
|
|---|---|
| Explosion safety category for gas |
None
|
| Explosion safety category for dust |
None
|
| Drawings | |
|---|---|
| 3D STP (STEP) Model | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP (STEP) Model Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Installation Guide | -- |
| User Manual | 2080-um004_-en-e | 2080-UM004 |
| User Manual | Micro800 Plug-in Modules User Manual | 2080-UM002 |
