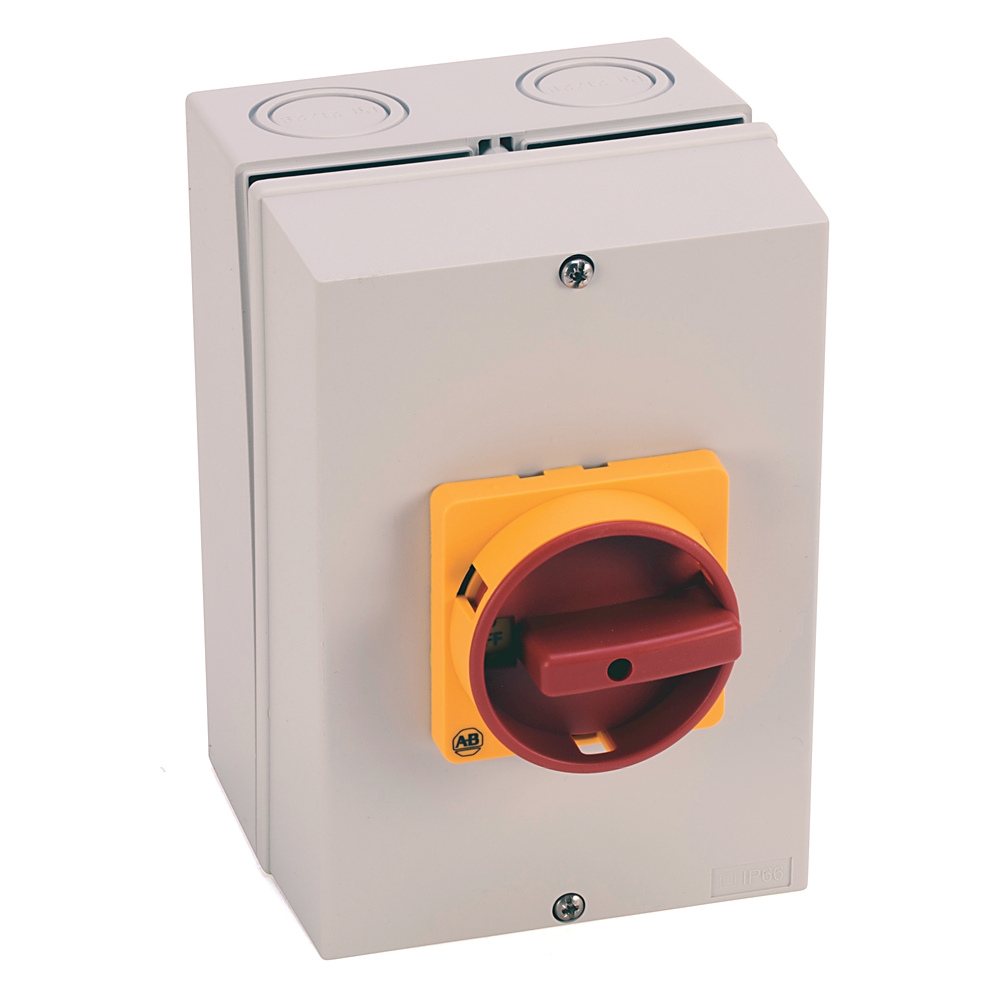

25 A 194E Load switch
Serial #:
This product has not been verified. Please register your product to confirm authenticity.
Lifecycle status:
Active
Lifecycle status:
Active
Technical Specifications
Electrical
Mechanical
Construction
Environmental
Drawings
Documents
Certifications
Accessories
Alternative Products
Technotes
| Number of auxiliary contacts as normally open contact |
0
|
|---|---|
| Number of auxiliary contacts as normally closed contact |
0
|
| Conditioned rated short-circuit current Iq |
20 kA
|
| Rated permanent current Iu |
25 A
|
| Rated operation power at AC-23, 400 V |
11 kw
|
| Max. rated operation voltage Ue AC |
690 V
|
| Rated operation power at AC-3, 400 V |
7.5 kw
|
| Rated short-time withstand current lcw |
900 kA
|
| Type of control element |
Long turning handle
|
| Rated frequency |
60 Hz
|
| Switch size |
25 A
|
| Lost power per pole |
1 W
|
| Conventional free air thermal current (Ith) |
40 A per IEC
|
| Conventional enclosed thermal current (Ie) |
32 A per IEC
|
| Rated operational voltage (Ue) |
690V per IEC
|
| Rated isolation voltage (Ui) |
690V per IEC
|
| Continuous current |
UL/CSA (applications): 25 A
|
| Rated breaking capacity |
AC-23A (cosφ 0.45): 296A @ 230V
|
| Motor FLA rating |
UL/CSA application: 8.5A @ 480V, 60 Hz, 1 pole, 1 phase
|
| Hp motor rating |
UL/CSA application: 5Hp @ 600V, 60 Hz, 1 pole, 1 phase
|
| Fuse rating of circuit (type g, G), max |
Short circuit current (co-ordination type 2): 25A @ 400/415V
|
| Rated current (Ie) |
DC-21A (for resistive loads): 5A @ 220V, 2 pole in series, T ≤1 ms, Ue max = 660V
|
| Rated power (Pe) |
AC-3: 7.5 kW @ 690V
|
| Number of switches |
1
|
| Motor drive integrated |
False
|
| Voltage release optional |
False
|
| Type of electrical connection of main circuit |
Screw connection
|
| Switching rate |
120 ops/h
|
| Rated impulse voltage (Uimp) |
8 kV per UL, CSA
|
| Test voltage (Ui) |
2.5kV @ 1min
|
| Heavy pilot duty |
UL/CSA (applications): A600, AC
|
| Interlockable |
True
|
|---|---|
| Version as emergency stop installation |
False
|
| Degree of protection (NEMA) |
4X
|
| Tightening torque |
1.4 Nm (12.2 in-lb)
|
| Switch configuration |
OFF-ON 90°
|
| Rigid wire gauge |
1.5...16 mm2 (14...8 AWG)
|
| Fine strands wire gauge |
1.5...10 mm2 (14...8 AWG)
|
| Knockouts |
PG-type cable gland entry
|
| Wire gauge, max |
Terminal size per IEC 947-1: A6
|
| Protection class according to IEC 529 |
Switch bodies: IP20 @ motor rating 60 Hz
|
| Actuator type |
Supplied with a type N red/yellow actuator
|
| Version as reversing switch |
False
|
| Version as main switch |
True
|
| Version as maintenance-/service switch |
True
|
| Degree of protection (IP), front side |
IP20
|
| Mechanical life operations |
200000
|
| Colour control element |
Red
|
|---|---|
| Device construction |
Complete device in housing
|
| Enclosures height, approx |
150 mm (5-29/32 in) @ 25 A
|
| Enclosures width, approx |
95 mm (3-3/4 in) @ 25 A
|
| Enclosures depth, approx |
86 mm (3-3/8 in) @ 25 A
|
| Installation |
IP65 (thermoplastic)-base/DIN rail
|
| Suitable for distribution board installation |
False
|
| Ambient enclosed temperature |
-20 °C
|
|---|---|
| Ambient storage temperature |
-40 °C
|
| Ambient operation temperature |
-25 °C
|
| Drawings | |
|---|---|
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 2-Dimensional Drawing (PDF) Download (PDF) |
| 3-Dimensional STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
| General | Publication |
|---|---|
| Get a handle on your disconnects podcast | -- |
| Product Cutsheet | -- |
| Installation Instructions | Publication |
|---|---|
| 194e-in010_-en-p | 194E-IN010 |
| Technical Data | Publication |
|---|---|
| 194-td002_-en-p | 194-TD002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
