194L-E40-3254

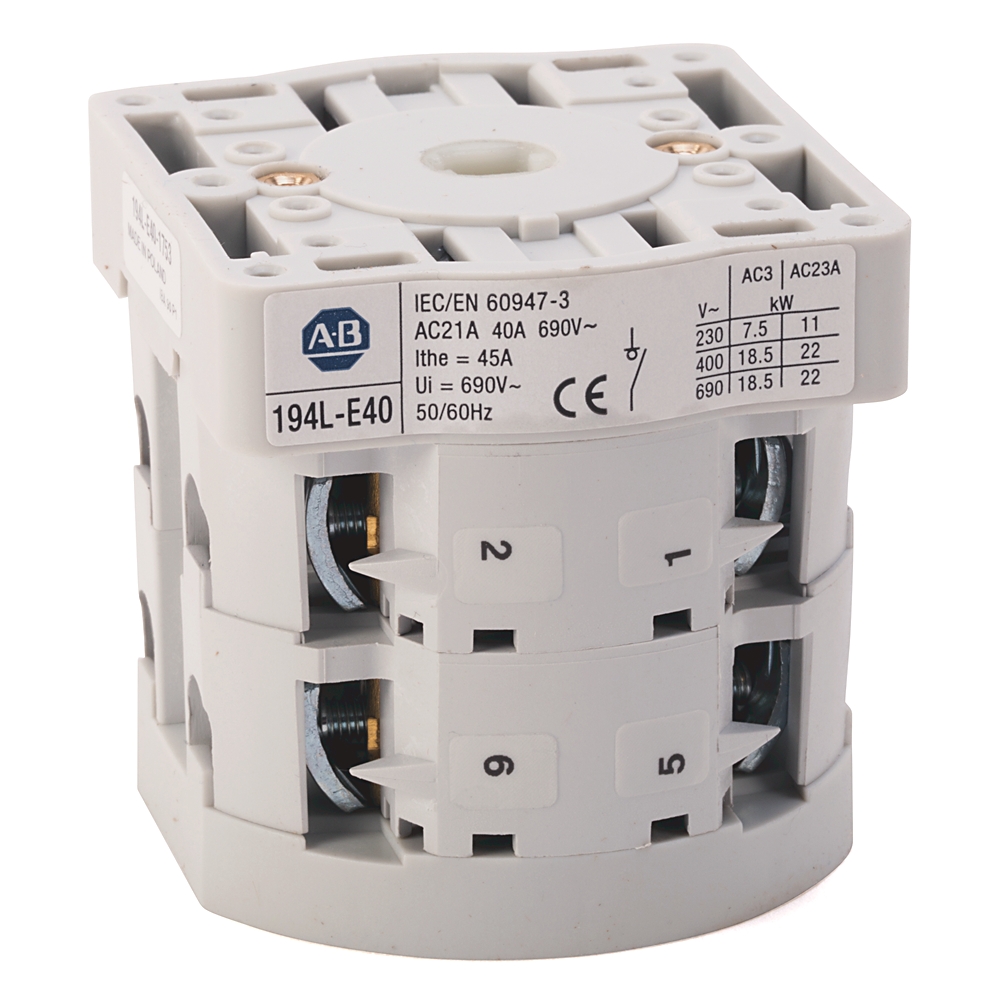

40 A 194L Load Switch

Name: 40 A 194L Load Switch
Brand: Rockwell Automation
SKU: 194L-E40-3254

Serial #:

Lifecycle status: Active

Description

IEC Control and Load Switch, Changeover 1-0-2 45°, 40 Amp, 4 Poles, Available as Custom Order , Front / Door

Lifecycle status: Active

Description

IEC Control and Load Switch, Changeover 1-0-2 45°, 40 Amp, 4 Poles, Available as Custom Order , Front / Door

Unique Product Identifier	194L-E40-3254
UPC	611320923186
Estimated Lead Time	41 days
Standard Warranty Duration	1 year See details
Country of Origin	Poland

Mechanical

Actuator type	Select actuator separately
Complete device in housing	False
Degree of protection (IP), front side	IP66
Fine strands wire gauge, max	(2) 14...10 AWG (2.5...6 mm²)
Gland entry type	PG-type cable gland entry
Mechanical life operations	Endurance: 1000000
Mechanical switching rate	1200 ops/h
Protection class	Switch bodies: IP20 (IEC 529)
Rigid wire gauge, max	(2) 12...8 AWG (4...10 mm²)
Suitable for distribution board installation	False
Suitable for intermediate mounting	False
Switch configuration	Changeover 1-0-2 45°, maintained
With retraction in 0-position	False
With zero (off) position	True

Construction

Installation	Open-front/door
Material housing	Plastic
Suitable for front mounting	True

Ampere rating	40 A (suitable for switching off-load (AC-20) above 660V, but only upto 660V for switches with screws at the rear)
Conditional rated short circuit current	5 kA (gL characteristic)
Electrical switch rate	120 ops/h
Electrical switching rate	120 ops/h per UL/CSA
Model	Other
Number of poles	4
Power lost	1.4 W
Rated breaking capacity	336A @ 380V, 0.45 [cos j]
Rated current (Ie)	8 contacts in series: 8A @ 384V, DC-21A (for inductive loads, T = 50 ms)
Rated impulse voltage (Uimp)	8 kV
Rated making/breaking capacity (= 1.1 x Ie)	8 contacts in series: 8.8A @ 369.6V (1.1 x rated voltage), DC-21A (for inductive loads, T = 50 ms), Ue max = 600V
Rated making/breaking capacity (= 1.5 x Ie)	8 contacts in series: 60A @ 504V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
Rated making/breaking capacity (= 4 x Ie)	2 contacts in series: 66.6A @ 63V (DC-23A, DC-3, DC-5 for inductive loads, T ≤7.5 ms)
Rated permanent current Iu	40 A
Rated power (Pe)	3-poles, 3-phase: 5Hp @ 120V per UL (CSA)
Rated short-time current	0.8 kArms for 1 s (gL characteristic)
Rated thermal current (Ith)	45A @ 40°C per IEC-947
Rated thermal current (Ithe)	45A @ 60°C per IEC-947
Rated voltage (Ue)	690V per IEC-947
Standard motor DOL rating	3-poles, 3-phase: 34A @ 480V (similar to AC-3) per UL (CSA)
Strongest series fuse	40 A (not in enclosure, gL characteristic)
Switch size	40 A
Type of electrical connection of main circuit	Screw connection

Operating temperature	-25 °C
Storage temperature	-40 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
194-td002_-en-p	194-TD002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	194L-E40-3254
UPC	611320923186
Estimated Lead Time	41 days
Standard Warranty Duration	1 year See details
Country of Origin	Poland

Physical Characteristics

Mechanical

Actuator type	Select actuator separately
Complete device in housing	False
Degree of protection (IP), front side	IP66
Fine strands wire gauge, max	(2) 14...10 AWG (2.5...6 mm²)
Gland entry type	PG-type cable gland entry
Mechanical life operations	Endurance: 1000000
Mechanical switching rate	1200 ops/h
Protection class	Switch bodies: IP20 (IEC 529)
Rigid wire gauge, max	(2) 12...8 AWG (4...10 mm²)
Suitable for distribution board installation	False
Suitable for intermediate mounting	False
Switch configuration	Changeover 1-0-2 45°, maintained
With retraction in 0-position	False
With zero (off) position	True

Construction

Installation	Open-front/door
Material housing	Plastic
Suitable for front mounting	True

Electrical & Connectivity

Ampere rating	40 A (suitable for switching off-load (AC-20) above 660V, but only upto 660V for switches with screws at the rear)
Conditional rated short circuit current	5 kA (gL characteristic)
Electrical switch rate	120 ops/h
Electrical switching rate	120 ops/h per UL/CSA
Model	Other
Number of poles	4
Power lost	1.4 W
Rated breaking capacity	336A @ 380V, 0.45 [cos j]
Rated current (Ie)	8 contacts in series: 8A @ 384V, DC-21A (for inductive loads, T = 50 ms)
Rated impulse voltage (Uimp)	8 kV
Rated making/breaking capacity (= 1.1 x Ie)	8 contacts in series: 8.8A @ 369.6V (1.1 x rated voltage), DC-21A (for inductive loads, T = 50 ms), Ue max = 600V
Rated making/breaking capacity (= 1.5 x Ie)	8 contacts in series: 60A @ 504V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
Rated making/breaking capacity (= 4 x Ie)	2 contacts in series: 66.6A @ 63V (DC-23A, DC-3, DC-5 for inductive loads, T ≤7.5 ms)
Rated permanent current Iu	40 A
Rated power (Pe)	3-poles, 3-phase: 5Hp @ 120V per UL (CSA)
Rated short-time current	0.8 kArms for 1 s (gL characteristic)
Rated thermal current (Ith)	45A @ 40°C per IEC-947
Rated thermal current (Ithe)	45A @ 60°C per IEC-947
Rated voltage (Ue)	690V per IEC-947
Standard motor DOL rating	3-poles, 3-phase: 34A @ 480V (similar to AC-3) per UL (CSA)
Strongest series fuse	40 A (not in enclosure, gL characteristic)
Switch size	40 A
Type of electrical connection of main circuit	Screw connection

Compliance & Environment

Operating temperature	-25 °C
Storage temperature	-40 °C
