1756-EN2F
CLX ENet/IP 100M Fiber
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Product at a glance
Description

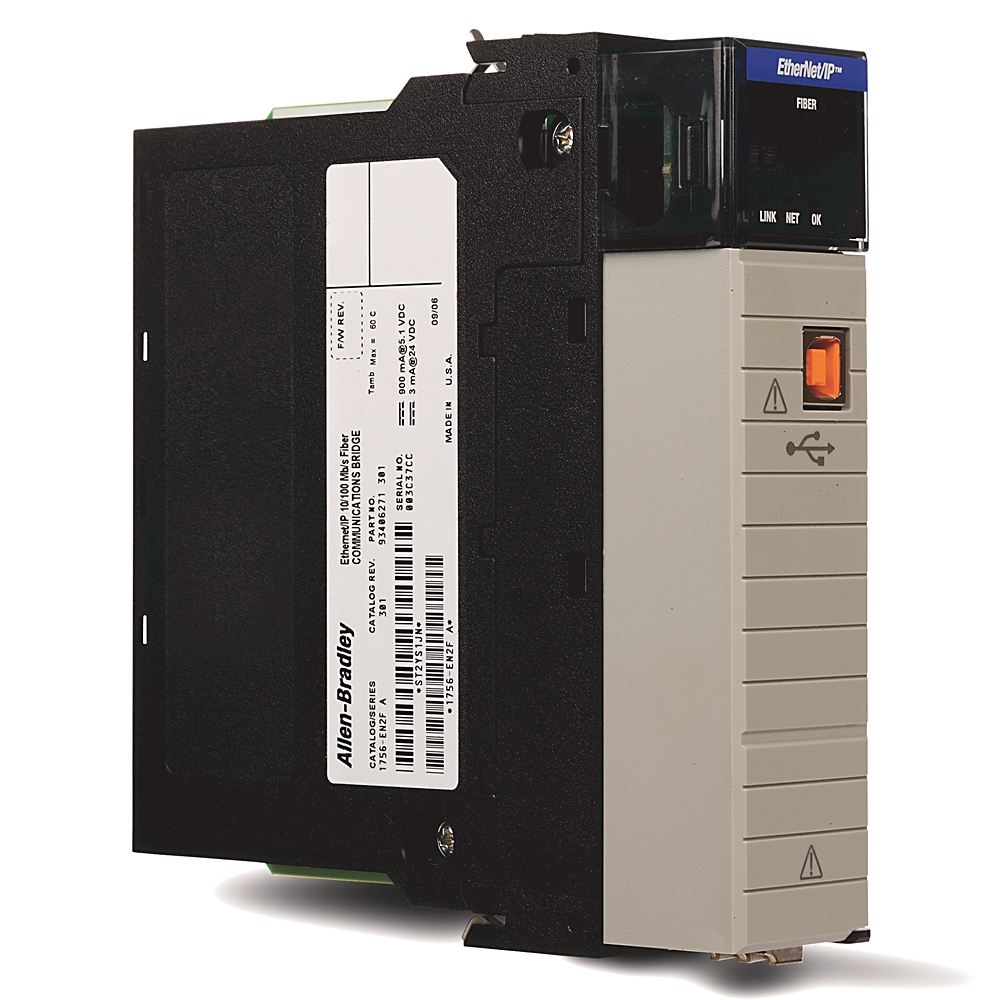

EtherNet/IP communication module, 10/100M LC2 multi-mode fiber, 128 TCP connections
Preferred
1756-EN2F
CLX ENet/IP 100M Fiber
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Product at a glance
Description
EtherNet/IP communication module, 10/100M LC2 multi-mode fiber, 128 TCP connections
