1694-dm3g2

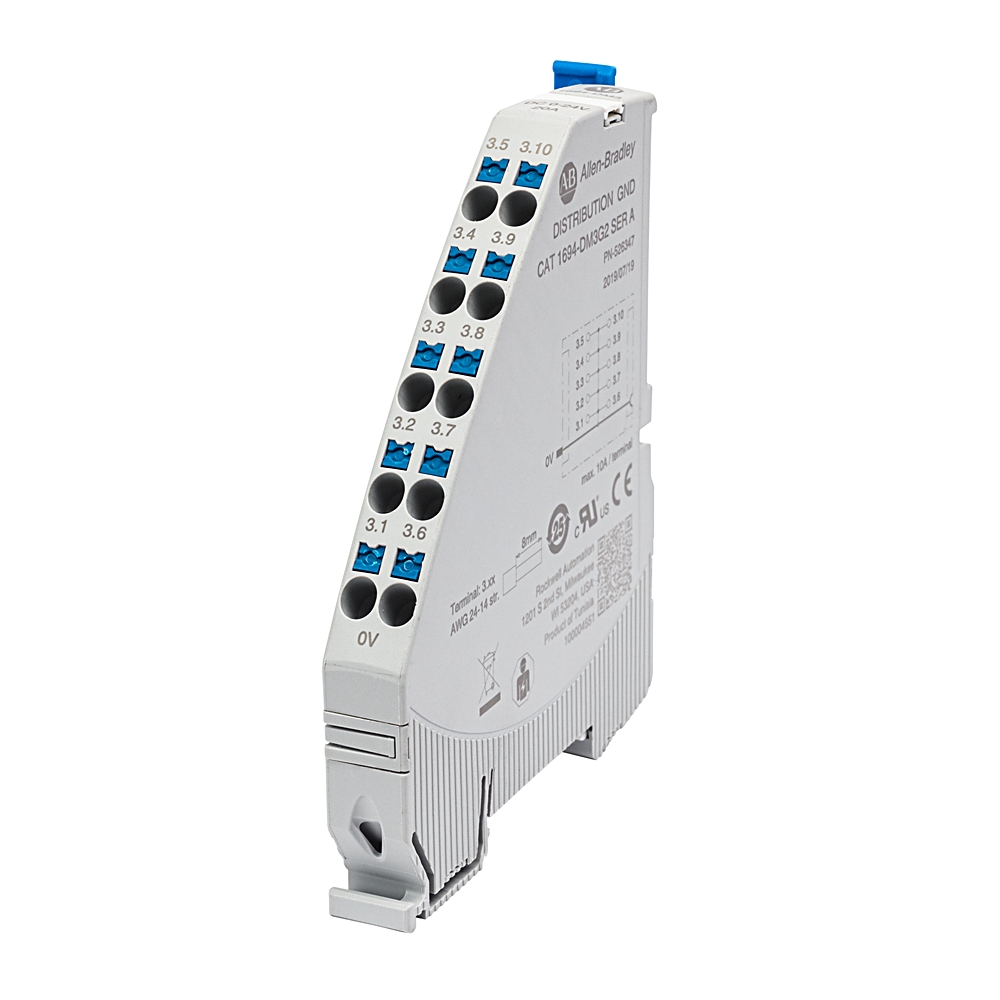

Distribution GND

Name: Distribution GND
Brand: Rockwell Automation
SKU: 1694-dm3g2

Serial #:

Lifecycle status: Active

Description

Distribution Module, 10 Terminals GND, 20A

Unique Product Identifier	1694-dm3g2
UPC	191326940733
Estimated Lead Time	5 days
Country of Origin	Germany

Depth	80 mm
Width	12.5 mm
Height	98.5 mm
Termination type	Push-in
Weight per module	Approx. 0.13 lb
Terminal wire gauge	Push-in terminal PT10 AWG20... AWG8 (0.5mm² to 10mm²), Push-in terminal PT2.5 AWG24... AWG14 (0.14mm² to 2.5mm²)

Voltage type of supply voltage	DC
Type of voltage (input voltage)	DC
Supply voltage DC	24 V
Degree of protection (IP)	IP20
Operating current, max	40 A
No of terminals	10

Degree of pollution	2
Operating temperature	-25 °C
Storage temperature	-40 °C
Humidity / damp heat	96 hr / 95% climate class 3K3

Drawings
2-Dimensional Drawing (PDF)	Download (PDF)
3-Dimensional STEP model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)

Drawings
2-Dimensional Drawing (PDF) Download (PDF)
3-Dimensional STEP model (STP) Download (ZIP)
Product Drawing Drawing (DWG)

General	Publication
Instructions for Standard 1694 Electronic circuit protection modules	1694-IN002
Topics in Circuit Protection for Power Supplies	1694-WP001
Product Cutsheet	--
1694 Specifications Technical Data	1492-SG122
