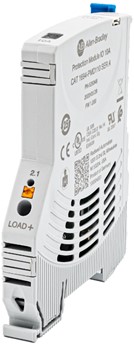

1694-PMD110

Protection Module IO 10A

Serial #:

Lifecycle status: Active

Supply voltage DC	24 V
Operating current, max	10 A
Rated current	10 A fixed
Voltage type of supply voltage	DC
Degree of protection (IP)	IP20

Width	12.5 mm
Height	98.5 mm
Weight per module	Approx. 0.13 lb
Terminal wire gauge	Push-in terminal PT10 AWG20... AWG8 (0.5mm² to 10mm²), Push-in terminal PT2.5 AWG24... AWG14 (0.14mm² to 2.5mm²)
Depth	80 mm
Termination type	Push-in

No of channels	2
Degree of pollution	2
Operating temperature	-25 °C
Storage temperature	-40 °C
Humidity / damp heat	96 hr / 95% climate class 3K3

Drawings
2-Dimensional Drawing (PDF)	Download (PDF)
3-Dimensional STEP model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)

Drawings
2-Dimensional Drawing (PDF) Download (PDF)
3-Dimensional STEP model (STP) Download (ZIP)
Product Drawing Drawing (DWG)

General	Publication
Product Cutsheet	--
Instructions for I/O Link 1694 Electronic Circuit Protection Modules	1694-IN001
1694 Specifications Technical Data	1492-SG122
Topics in Circuit Protection for Power Supplies	1694-WP001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

CE
UL Recognized
UL Listed
Australian RCM
Eurasion Economic Community
MOROCCO DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
