1606-xlp30e

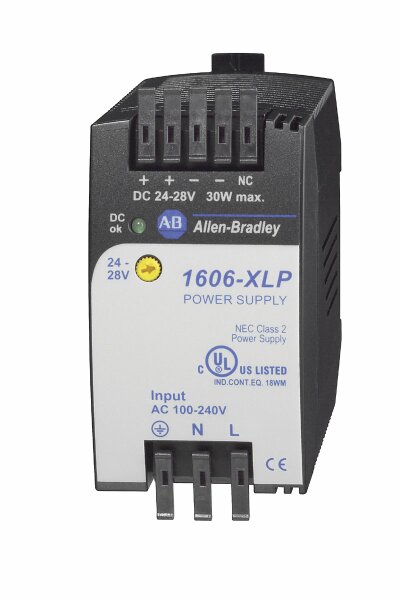

XLP Power Supply 30W 24VDC 1A

Name: XLP Power Supply 30W 24VDC 1A
Brand: Rockwell Automation
SKU: 1606-xlp30e

Serial #:

Lifecycle status: Active

Description

1606-XLP30E: Compact Power Supply, 24-28V DC, 30 W, 120/240V AC / 85-375V DC Input Voltage

Unique Product Identifier	1606-xlp30e
UPC	662073044208
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	>1
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Sub Brand	Power Supply XLP

Height	75 mm
Depth	91 mm
Direct mounting possible	False
Width	45 mm
Degree of protection (IP)	IP20
Type of electric connection	Spring clA connection
Shock	30 G, 6 ms 20G, 11 ms
Special functions	No special function
MTBF	650000 hr @ 40 °C, SN 29500
Wall mounting possible	True
Degree of protection (NEMA)	Other
Vibration	2 g

Secondary voltage adjustable	True
Power output	30 W
Voltage type of supply voltage	AC/DC
Rated supply voltage at DC	85 V
Efficiency, typ	87.5 %
Adjustment range	24 V
Operational range	85...264V AC
Rated output current	1.3A @ 24.5V
Phases	1-phase
Sub group	Compact family
Hold-up time	>190 ms @ 230V AC
Input voltage	100…240V AC
Special family function	No power boost
Rated input current	<0.6A @ 100V AC
Special feature	-
Output voltage stabilized	True
Rail mounting possible	True
Stabilized	True

Ripple and noise, max	50 mV
Operating temperature	-10 °C
Storage temperature	-40 °C
Relative humidity	5 to 95 %

Weight	230 g

Drawings
3D STEP model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
3D STEP model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--
Short Circuit Ratings Data Sheet	--
Installation Instructions	1606-IN028

Technical Data	Publication
1606-td002_-en-p	1606-TD002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
Australian RCM
MOROCCO DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	1606-xlp30e
UPC	662073044208
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	>1
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Sub Brand	Power Supply XLP

Height	75 mm
Depth	91 mm
Direct mounting possible	False
Width	45 mm
Degree of protection (IP)	IP20
Type of electric connection	Spring clA connection
Shock	30 G, 6 ms 20G, 11 ms
Special functions	No special function
MTBF	650000 hr @ 40 °C, SN 29500
Wall mounting possible	True
Degree of protection (NEMA)	Other
Vibration	2 g

Secondary voltage adjustable	True
Power output	30 W
Voltage type of supply voltage	AC/DC
Rated supply voltage at DC	85 V
Efficiency, typ	87.5 %
Adjustment range	24 V
Operational range	85...264V AC
Rated output current	1.3A @ 24.5V
Phases	1-phase
Sub group	Compact family
Hold-up time	>190 ms @ 230V AC
Input voltage	100…240V AC
Special family function	No power boost
Rated input current	<0.6A @ 100V AC
Special feature	-
Output voltage stabilized	True
Rail mounting possible	True
Stabilized	True

Ripple and noise, max	50 mV
Operating temperature	-10 °C
Storage temperature	-40 °C
Relative humidity	5 to 95 %

Weight	230 g
