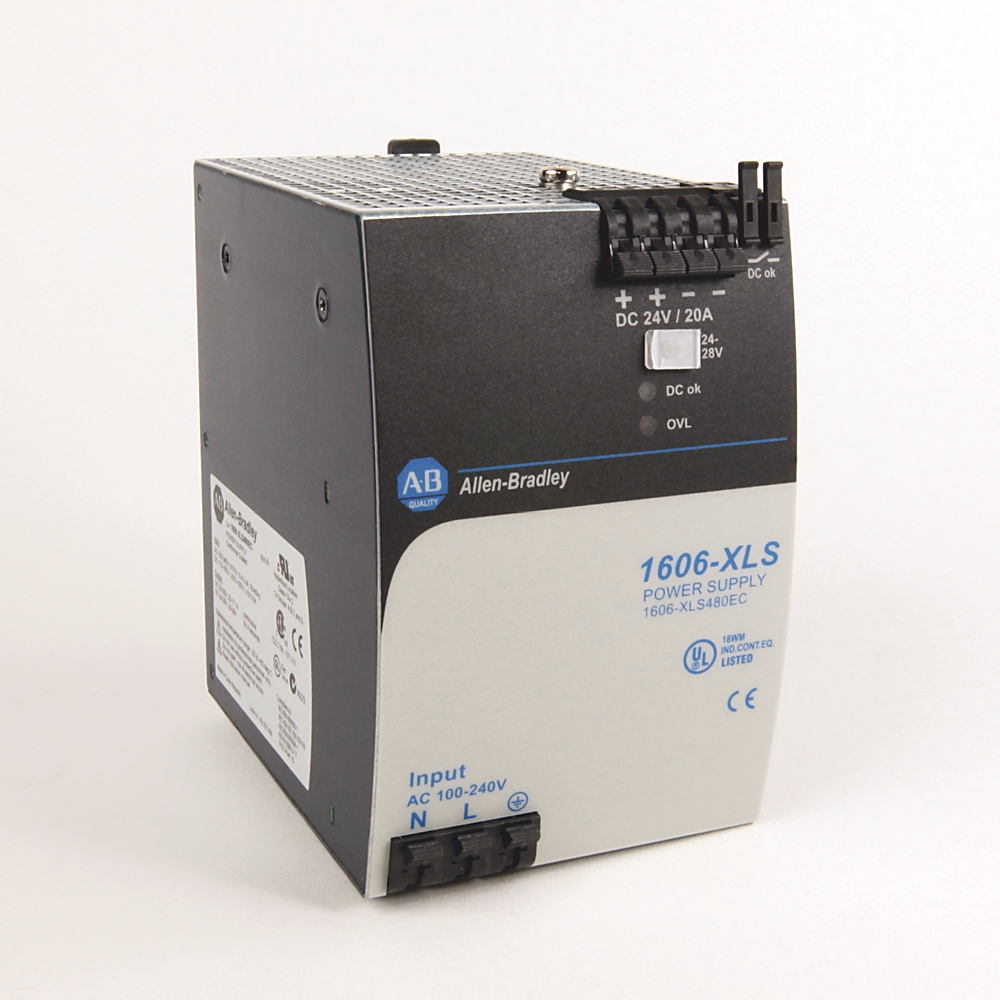

1606-XLS480EC

AC or DC In 24 to 28VDC Out 480W CC PS

Serial #:

Lifecycle status: Active

Efficiency	0.92
Input Circuit Protection	10 A Slow Blow Fuse or Cat. No. 1489-A1C100
Output Voltage Range	24 -28V DC

Nominal value output voltage 1	24 V
Secondary voltage adjustable	True
Power output	480 W
Voltage type of supply voltage	AC/DC
Rated supply voltage at DC	110 V
Derating	12 w/°c
DC OK relay contact	True
Input inrush current limiter	Active
Output voltage	24...28V DC
Power factor	0.90 typical
Operational range	88...188V DC
Reserve power (typ. 4 s)	30A @ 24V DC
Rated output current	20A @ 24V DC
External input fuse, min	B-10 A or C-10 A
Power losses	31.4 W typical
Sub group	Performance family
Hold-up time	31 to 51 ms
Efficiency	94.5% typical
Input inrush current	9 A/7 A
Input voltage	100...240V @ AC, 47...63 Hz
Rated input current	4.6A @ 100V AC
Special feature	ABS/GL/RINA (marine)
Output voltage stabilized	True
Rail mounting possible	True
Stabilized	True

Height	124 mm
Depth	127 mm
Direct mounting possible	False
Width	82 mm
Degree of protection (IP)	IP20
Type of electric connection	Spring clA connection
Special functions	Conformal coat
MTBF	469 kh (40 °C, SN29500)
Wall mounting possible	True
Degree of protection (NEMA)	Other

Ripple and noise, max	100 mV
Operating temperature	-25 °C
Lifetime, min	71 kh (+40 °C)
Non-operating temperature range	-25...+70 °C, >60 °C with derating

Weight	1200 g
