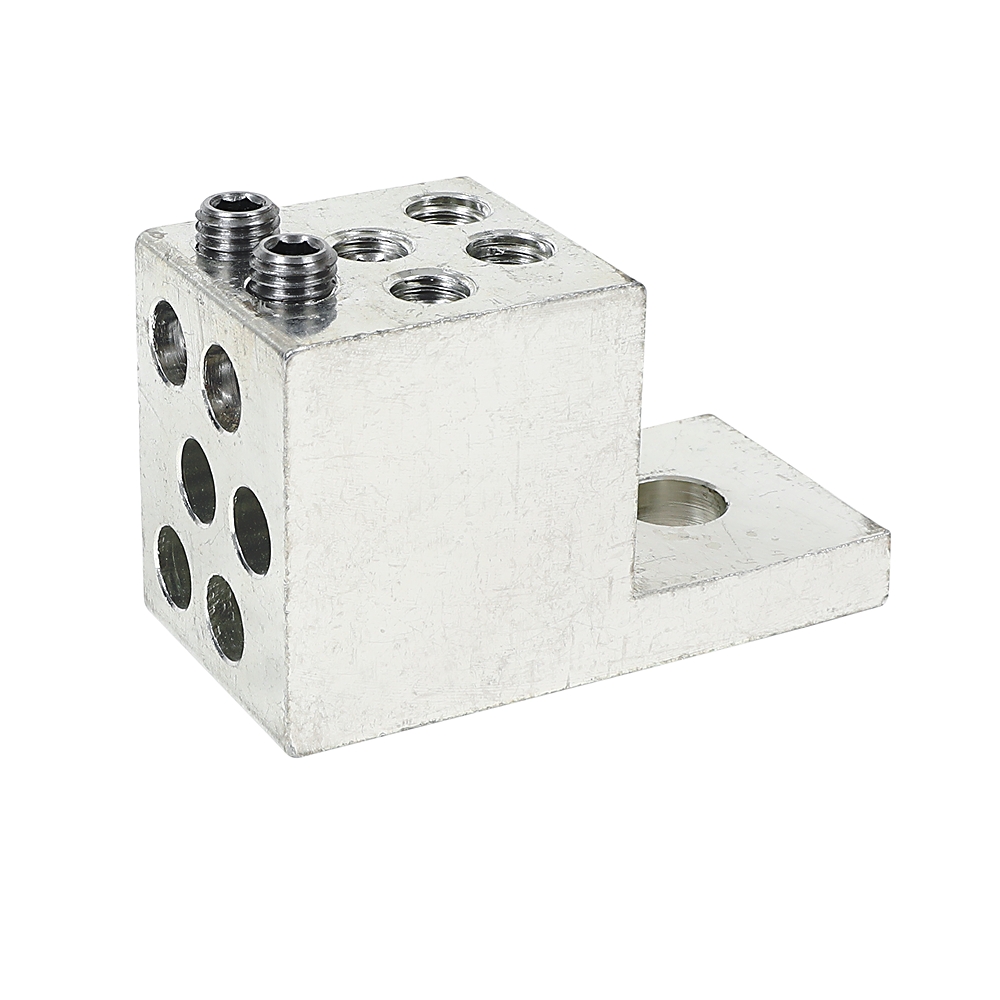

1494U-LM200

200A Multi-Port Lugs

Name: 200A Multi-Port Lugs
Brand: Rockwell Automation
SKU: 1494U-LM200

Serial #:

Lifecycle status: Active

Description

1494U Multi-port Lug Connectors (3 per package), 200A - 6 Ports - ((1) #14...4 AWG copper, (1) #12...4 AWG aluminum, (2) #10 AWG copper-aluminum)

Current	200 A

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
2-Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--

Technical Data	Publication
1494-td002_-en-p	1494-TD002
1494U-LM200	1494U-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Overview

Technical Specifications

Current	200 A

Drawings

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
2-Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

Documents

Product Cutsheet General
--

1494-td002_-en-p Technical Data
1494-TD002

1494U-LM200 Technical Data
1494U-TD001
