| Rated control supply voltage at AC 50 Hz | 110 V |
|---|---|
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated frequency | 50/60 Hz |
| Operating voltage | Tripping: 0.35...0.7 x Us, Coil: 0.85...1.1 x Us |

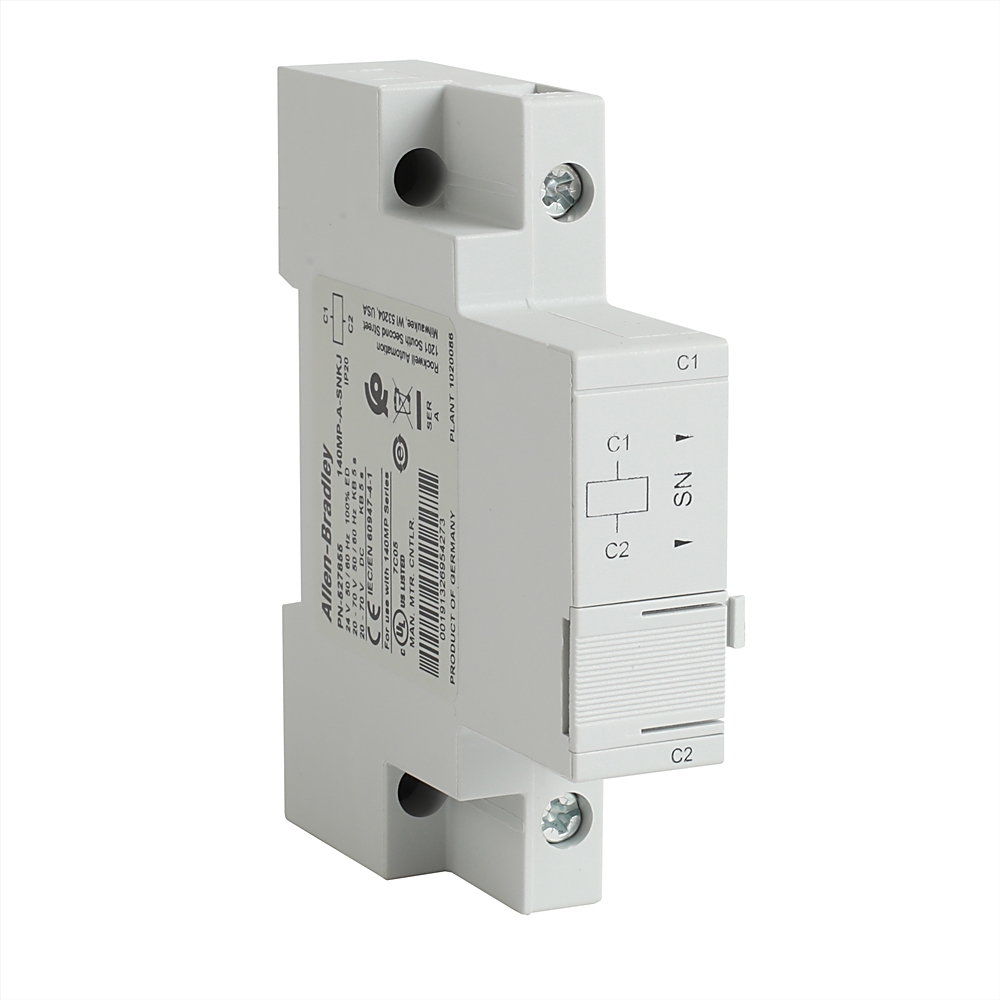

| Feature | Undervoltage trip release: left-side mounted adds 18 mm to the width of the manual motor starter |
| Voltage type for actuating | AC |
| Suitable for power circuit breaker | True |
| Rated impulse withstand voltage | 6 kV |
| Insulation voltage | Rated 690V |
| Resistance to shock | 25 G/11 ms per IEC 60068-2-27 |
|---|---|
| Resistance to vibration | 5 G/3 ... 150 Hz per IEC 60068-2-6 |
| Pollution degree | 3 None |
|---|---|
| Ambient air temperature | Ops: -25...60 °C, Storage: -50...80 °C |
| Mounting | Left side |
|---|
| Standards compliance | IEC: IEC/EN 60947-1, IEC/EN 60947-5-1, UL/cULus: UL 60947-4-1, CAN/CSA22.2 No. 60947-4-1 |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 8.0 |
| Lead Time | 53 |
| Dimension Width | 2.4 |
| Dimension Length | 9.2 |
| Stock Status | NON_STOCKED |
| Weight | 0.11 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| Drawings |
|---|
| 3-Dimensional STEP model (STP) Download (ZIP) |
| 2-Dimensional Drawing (PDF) Download (PDF) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Link to Literature Library for Tech Data | 140MP-TD001 |
| Technical Data | 140mp-td002_-en-p | 140MP-TD002 |
