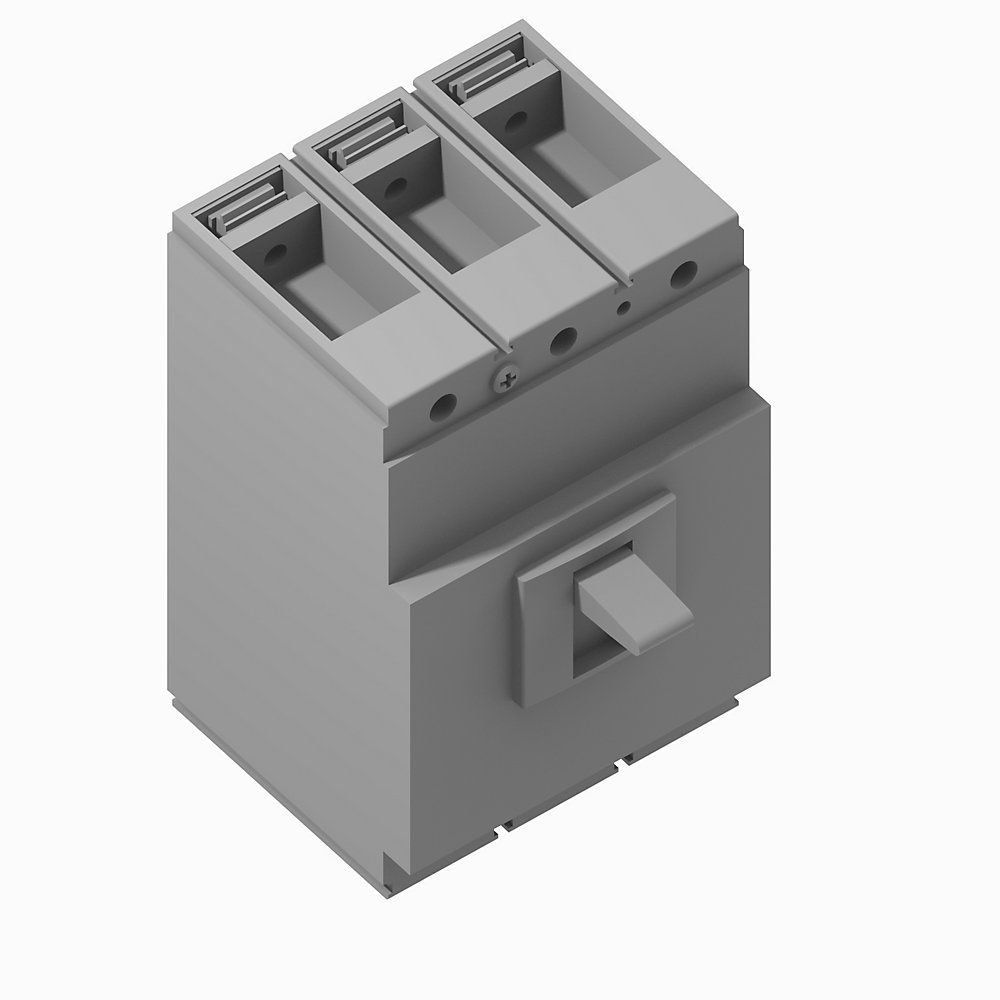

| Number of poles | 3 |
|---|---|
| With integrated under voltage release | False |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 120 kA |
| Integrated earth fault protection | False |
| Complete device with protection unit | True |
| Rated permanent current Iu | 225 A |
| Type of control element | Toggle |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Frame size | 125 A |
| Magnetic trip current (Im) | 1125 to 2250 A |
| Thermal trip current (Ir) | 157.5 to 225 A |
| Electrical life cycle | 8000 ops @ 415V AC |
| Intermediate point (Irms) | 50 kA @ rated current up to 250 A, rated voltage 480V AC |
| Threshold current (Irms) | 10 kA @ rated current up to 250 A, rated voltage 600V AC |
| Interrupting rating (Irms) | 50 kA @ rated current up to 250 A, rated voltage 600V AC |
| Intermediate point (Ip) | 26.4 kA @ rated current up to 250 A, rated voltage 480V AC |
| Interrupting rating (Ip) | 44.5 kA @ rated current up to 250 A, rated voltage 480V AC |
| Threshold current (Ip) | 14.4 kA @ rated current up to 250 A, rated voltage 480V AC |
| Threshold current (I2t) | 582x10³ @ rated current up to 250 A, rated voltage 600V AC |
| Intermediate point (I2t) | 853x10³ @ rated current up to 250 A, rated voltage 480V AC |
| Interrupting rating (I2t) | 1162x10³ @ rated current up to 250 A, rated voltage 600V AC |
| Rated service short-circuit breaking capacity (Ics(% Icu)) per IEC 60947-2 rating | 100% @ 690V AC, 50/60 Hz |
| Interrupting rating per UL 489/CSA C22.2, No. 5 | 35kA @ 600V, 50/60 Hz |
| Rated ultimate short-circuit breaking capacity (Icu) per IEC 60947-2 rating | 85kA @ 500V DC with 3 pole in series, thermal-magnetic trip only |
| Protection type | T/M-adjustable thermal/adjustable magnetic TMA |
| Motor drive integrated | False |
| With switched-off indicator | False |
| Motor drive optional | True |
| Position of connection for main current circuit | Front side |
| Type of electrical connection of main circuit | Screw connection |
| Insulation voltage | Rated 1000V per IEC |
| Suitable for DIN rail (top hat rail) mounting | False |
|---|---|
| DIN rail (top hat rail) mounting optional | True |
| Degree of protection (IP) | IP40 |
| Weight | 5.51 lb |
| Mechanical life operations | 25000 /h |
| Factory option | None |
| Height | 160 mm |
|---|---|
| Device construction | Built-in device fixed built-in technique |
| Width | 105 mm |
|---|---|
| Depth | 82.5 mm |
| Storage temperature | -40 °F |
| Wire temperature rating | Al or Cu 75 °C |
| Operational voltage (Ue) | 90% @ 3000 metre (9840 ft) altitude |
| Rated uninterrupted current (Iu) | 98% @ 3000 metre (9840 ft) altitude |
| Ambient temperature without derating | 104 °F |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 15.494 |
| Lead Time | 22 |
| Dimension Width | 17.526 |
| Dimension Length | 21.336 |
| Stock Status | NON_STOCKED |
| Weight | 2.42 |
| Weight Unit | KG |
| Dimension Unit | CM |
