Alarm history file

The exported alarm history contains information about the alarm state changes, and lists the recorded values for each column in the alarm history.

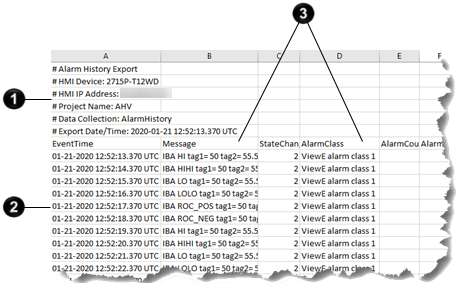

ExportedAlarmHistory
Item
Description
1
The headings of the alarm history file indicate the:
  • Contents of the file is the exported alarm history.
  • HMI device that exported the alarm history.
  • IP address of the HMI device.
  • Name of
    View Designer
     project runtime application containing the data log configuration.
  • Name of the data collection.
  • Date and time the alarm history was exported.
2
The date and time each alarm state change was recorded.
3
Columns reflecting the columns in the AlarmHistory table.
