TND (stop current program)

The TND instruction stops the current cycle of a user program scan. After the output scan, input scan, and housekeeping are complete, re-executes the user program from the start of the first routine.
Languages supported: Function block diagram, ladder diagram, structured text.
This instruction applies to the
Micro810
 LC10,
Micro820
 L20E,
Micro850
 L50E, and
Micro870
 L70E controllers.
TND
TND
TND parameters
Parameter
Parameter Type
Data Type
Description
Enable
Input
BOOL
Function enable.
  • When Enable = TRUE, perform the function.
  • When Enable = FALSE, do not perform the function.
TND
Output
BOOL
If true, function performed.
  • When variable monitoring is on, the monitoring variable's value is assigned to the instruction's output.
  • When variable monitoring is off, the output variable's value is assigned to the instruction's output.

TND examples

TND function block diagram example
TND function block diagram example
TND ladder diagram example
TND ladder diagram example

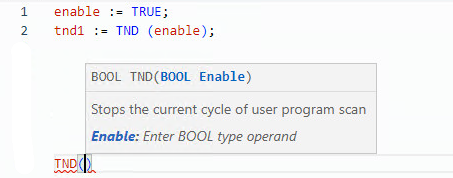

TND structured text example
TND structured text example
(* ST Equivalence: *)

TESTOUTPUT := TND(TESTENABLE) ;
Results

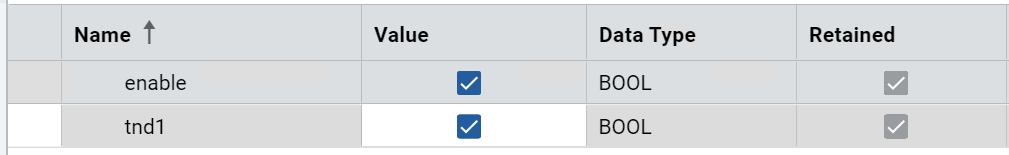

Table displaying TND results with columns for Name, Value, Data Type, and Retained.
