Define redundant servers

From the

FactoryTalk Batch Equipment Editor

Options

menu, click

Server Options

.

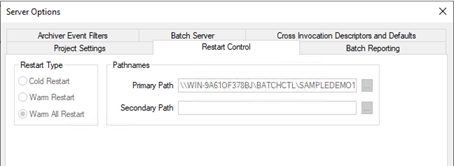

Select the

Restart Control

tab.

In the

Restart Type

area, select an option, or accept the default,

Warm Restart

.

Select

Primary Path

. The

Select Directory

dialog box opens.

Select the

MyProject\restart

folder located in the

BATCHCTL

share on the primary server’s hard drive (the default is

c:\Program Files (x86)\Rockwell Software\Batch\MyProject\restart

), and then select

OK

.

Select

Secondary Path

. The

Select Directory

dialog box opens.

Locate and select the

MyProject\restart

folder located in the

BATCHCTL

share on the secondary server’s hard drive, and then select

OK

.

Repeat steps 1 through 7 on the redundant server computer, selecting the

Batch\MyProject\restart

folder on the redundant server as the Primary Path. The Secondary Path can remain blank or point to another redundant server. Additionally, you must configure a data server to communicate with the process controller on the redundant server computer. The redundant server computer needs to communicate with the process controller that is running the phase logic.
