Monitoring Workspace

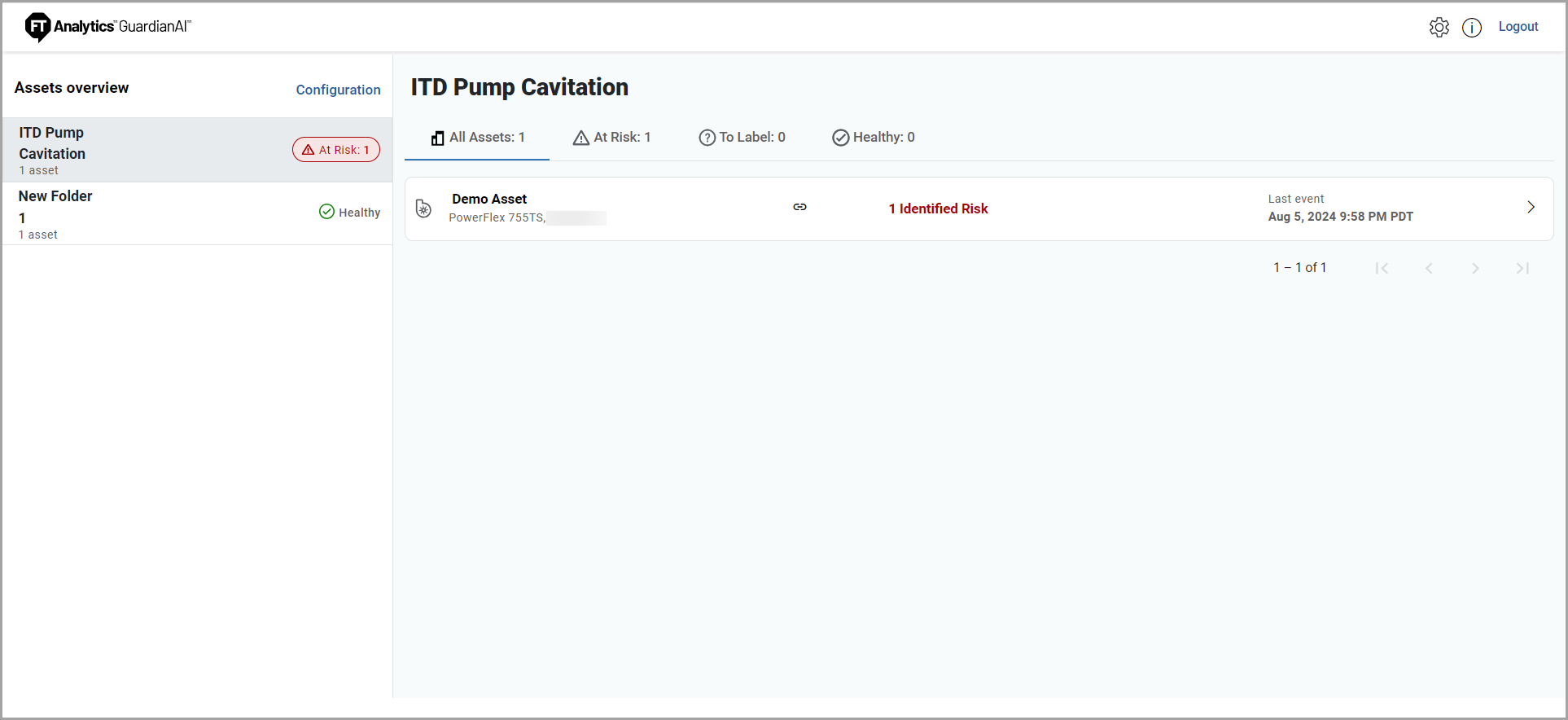

The monitoring workspace, displayed in the following figure, provides quick access to the overall status of the assets monitored by FactoryTalk Analytics GuardianAI.
  1. The left panel displays the different folders containing the asset.
    • When an asset contained in a folder encounters a deviation or failure risk, a tag on the folder illustrates the count of assets encountering those events.
  2. The quick filters allow the user to get additional insight regarding the assets with a failure risk, deviation requiring labeling or healthy assets (no action required). Upon selecting a filter, only the assets meeting the criteria are displayed.
  3. The detailed asset page displays all information about the asset that includes the detailed view of deviations or failure risk requiring user action.
Asset Monitoring Workspace
