Simultaneous Divergences

A simultaneous divergence (AND) is a multiple link from one transition to multiple steps. A simultaneous divergence corresponds to parallel operations of a process.

Simultaneous divergences are represented by double horizontal lines.

Example

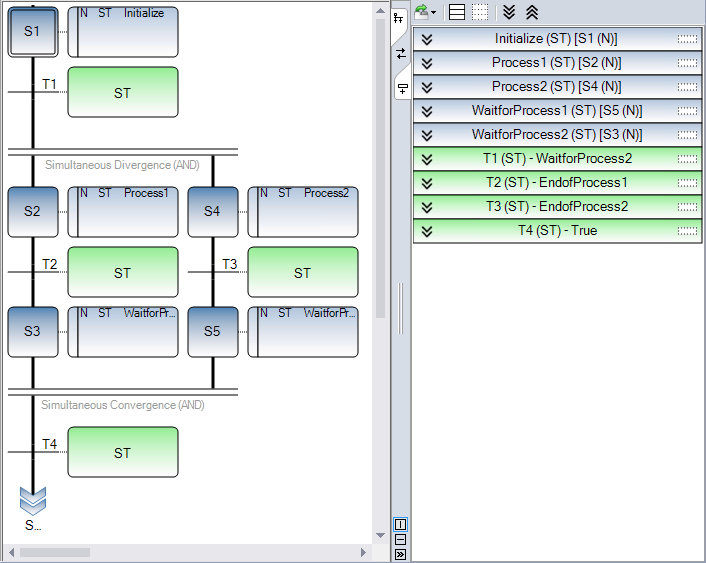

(* SFC program with simultaneous divergence and convergence *)
