1 GAIN
Directly links the input to the output. When used with a Boolean negation, inverts the state of the line connected to the output.
Arguments | ||
|---|---|---|
IN | BOOL - SINT - USINT - BYTE - INT - UINT - WORD - DINT - UDINT - DWORD - LINT - ULINT - LWORD - REAL - LREAL - TIME - DATE - STRING | |
Q | BOOL - SINT - USINT - BYTE - INT - UINT - WORD - DINT - UDINT - DWORD - LINT - ULINT - LWORD - REAL - LREAL - TIME - DATE - STRING | i1 and o1 must have the same format |
Example

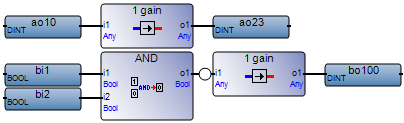

(* FBD example with assignment Operators *)
(* ST equivalence: *)
ao23 := ai10; bo100 := NOT (bi1 AND bi2);
