FIND

Locates and provides the position of sub-strings within strings.
lrsf_fi1_cam5
Arguments
IN
IN
MESSAGE
Any message string
Pat
Pat
MESSAGE
Any non-empty string (Pattern)
FIND
Pos
DINT
= 0 if sub string Pat not found
= position of the first character of the first occurrence of the sub-string Pat
(first position is 1)
this function is case sensitive
Example

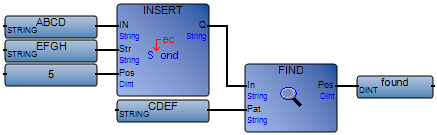

(* FBD Program using "FIND" Function *)
lrsf_fi2_cam5
(* ST Equivalence: *)
complete_string := 'ABCD' + 'EFGH'; (* complete_string is 'ABCDEFGH ' *) found := FIND (complete_string, 'CDEF'); (* found is 3 *)
