Regions

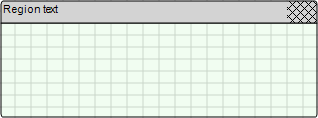

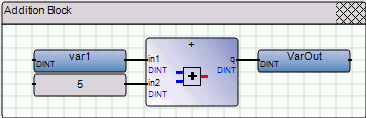

Regions delineate and group together areas of a Function Block Diagram (FBD) program organization unit (POU). A region consists of a header and a delineated zone grouping together elements. The header section enables entering free-format text. After entering text in the header, click elsewhere in the region to exit editing mode. When moving the location of a region in the language container, also move all the content grouped within. Resize regions.
fbd_rgn
fbd_rgn1
Task
Procedure
Insert a region
From the
Toolbox
, drag the region element into the language container.
Move a region
  1. In the language container, left-click the top right corner of the region element and hold the mouse button.
  2. Drag the region element to the required location and release the mouse button.
