MID

Extracts a part of a message string. The number of characters to be extracted and the position of the first character are given.
lrsf_mi1
Arguments
IN
IN
MESSAGE
Any non-empty string
NbC
NbC
DINT
Number of characters to be extracted cannot be greater than the length of the IN string
Pos
Pos
DINT
Position of the sub-string
the sub-string first character will be the one pointed to by Pos
(first valid position is 1)
MID
Q
MESSAGE
Middle part of the string (its length = NbC)
empty string if parameters are not valid
Example

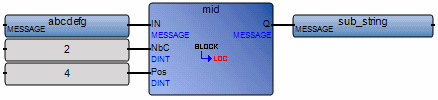

(* FBD Program using "MID" Function *)
lrsf_mi2
(* ST Equivalence: *)
sub_string := MID ('abcdefg', 2, 4); (* sub_string is 'de' *)
