Ladder diagram program examples
The following examples demonstrate ladder diagram programs.

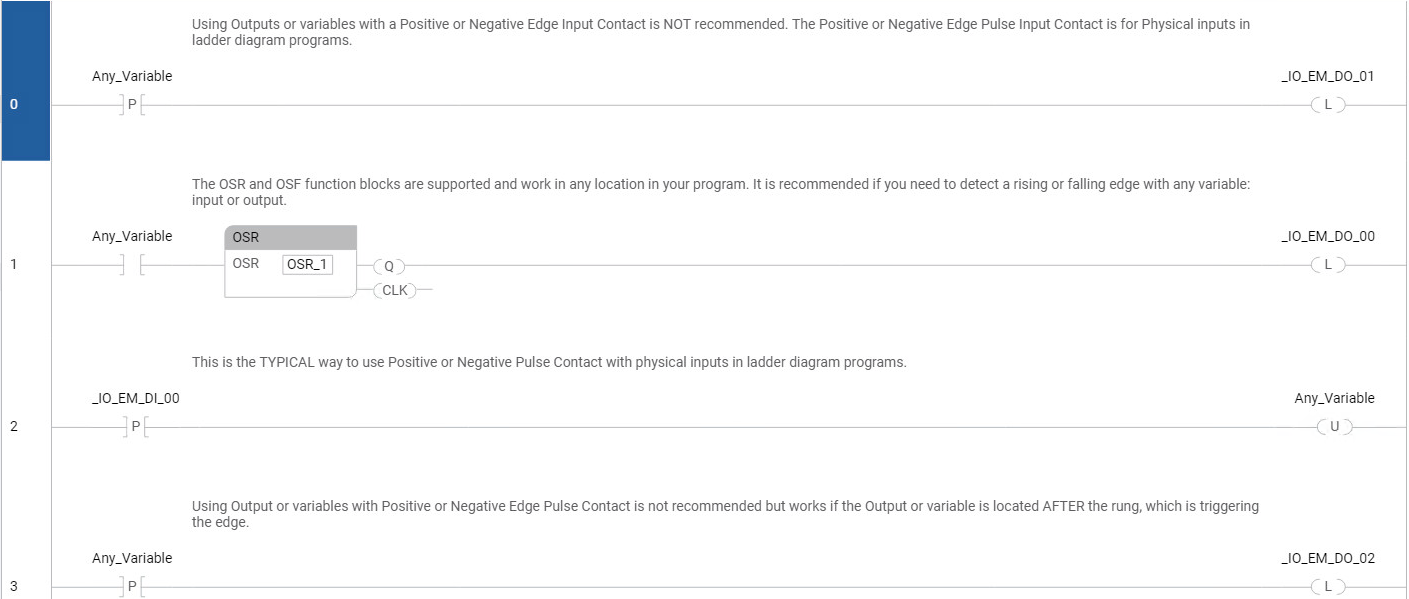

Example: OSR function block
The following example program shows the recommended usage of an OSR function block to detect an edge while connected to the controller.
Example: OSR function block

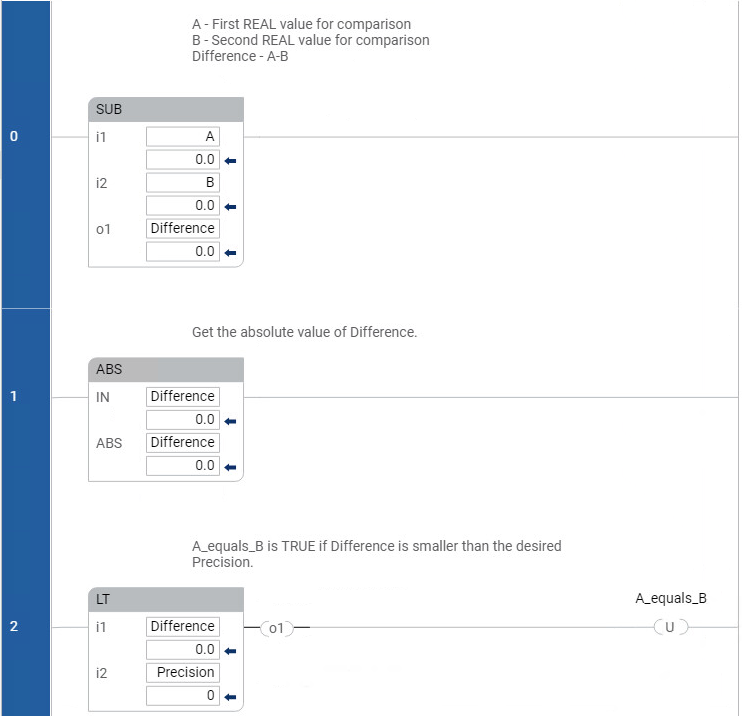

Example: Comparing REAL Values using SUB (-), ABS, and LT (<)
It is not recommended to use the REAL data type for equality comparisons due to rounding differences. Two values might appear equal in
FactoryTalk Design Workbench
but evaluate as false.For example, 23.500001 and 23.499999 both display as 23.5 but are not equal in the controller.
To compare REAL values, use a SUB instruction to find the difference and check if it is less than a set precision value. See the LD program example for details.
Example: Comparing Real Values using SUB (-), ABS, and LT (<)
