SOCKET_READ

The SOCKET_READ instruction reads data on a socket and returns the specified number of bytes. For Transmission Control Protocol (TCP), returns when any data is received, up to the requested number of bytes. For User Datagram Protocol (UDP), completes when a datagram is available.
Operation details:
The following SOCKET_READ behavior might impact existing communications, including non-socket communication:
  • If the SOCKET_READ operation is not executed in sync with the remote device then, the controller holds the remote device receive packet until one of the following occurs:
    • SOCKET_READ is executed.
    • Socket Timeout expires.
    • RST is received from a remote device.
    • SOCKET_DELETE or SOCKET_DELETEALL is executed.
    • A Run Mode Change is performed, which deletes all created Socket instances.
    • Controller changes from run mode to program mode, which deletes all created Socket instances.
    • Controller changes from run mode to program mode, which clears socket Diagnostic counter information and individual Socket counter information.
  • If the Length or Offset parameter value is changed while the SOCKET_READ operation is ongoing (BUSY = True), an error occurs and the receive packet is discarded.
  • The SOCKET_READ instruction might return fewer bytes than were requested. RxLength contains the number of bytes of data received. Write programs to check RxLength and then issue additional read requests to receive an entire application message.
  • In Run Mode Change mode, changing a SOCKET_READ input while operating in the BUSY state results in an error and the received packet is discarded.
  • Outputs update synchronously from the program scan.
Languages supported: Function block diagram, ladder diagram, structured text.
This instruction applies to the L20E, L50E, and L70E controllers.
SOCKET_READ
SOCKET_READ
SOCKET_READ parameters
Parameter
Parameter Type
Data Type
Description
Execute
Input
BOOL
Instruction enable.
  • TRUE: Rising Edge detected; start the instruction with the precondition that the last operation is complete.
  • FALSE: Do not start instruction.
Instance
Input
UDINT
Copy from the returned Socket Handler from a SOCKET_CREATE or SOCKET_ACCEPT instruction.
  • For UDP and TCP Client Socket types, copy the returned Socket Handler from a SOCKET_CREATE instruction.
  • For TCP Server Socket type, copy the returned Socket Handler from a SOCKET_ACCEPT instruction.
Timeout
Input
UDINT
Timeout for SOCKET_READ. The instruction block returns an Error if the timeout value is less than the minimum value.
Timeout range: 1000-86400000 milliseconds. Set Timeout to 0 to use the default value 10000 (10 Second).
Length
Input
UINT
Defines the number of bytes to read.
Check RxLength for the actual number of bytes read. SOCKET_READ can return fewer bytes than requested.
Supports up to 256 bytes.
Offset
Input
UNIT
Offset into array of Data. Start reading data read from this location.
Data
Output
USINT[1..1]
An Array used to store the data read from SOCKET_READ.
  • Data array size must be >= (Offset + Length).
  • Data array can be bigger than socket read Length.
Output is updated synchronously from the program scan.
Done
Output
BOOL
Indicates when operation is complete.
  • TRUE: Operation completed successfully.
  • FALSE: Operation is in progress or encountered an error condition.
Output is updated synchronously from the program scan.
Busy
Output
BOOL
  • TRUE: The operation is not finished.
  • FALSE: The operation is finished.
Output is updated synchronously from the program scan.
Error
Output
BOOL
Indicates an error occurred.
  • TRUE: An error is detected.
  • FALSE: No error.
Output is updated synchronously from the program scan.
Status
Output
SOCK_STATUS
Status is defined using the SOCK_STATUS data type, which contains ErrorID, SubErrorID, and  StatusBits information.
Output is updated synchronously from the program scan.
RxLength
Output
UNIT
Contains the number of data bytes received.
UDPAddr
Output
The address of the device sending User Datagram Protocol (UDP) data.
Example defines a UDPAddr of 192.168.2.100 and Port 12000:
UDPAddr.IPAddress[0]=192
UDPAddr.IPAddress[1]=168
UDPAddr.IPAddress[2]=2
UDPAddr.IPAddress[3]=100
UDPAddr.Port = 12000
For Transmission Control Protocol (TCP), this structure is not used and contain all zeros. The TCP connection conveys the remote address information.

SOCKET_READ examples

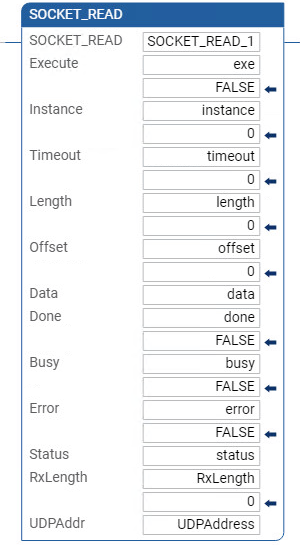

SOCKET_READ function block diagram example
SOCKET_READ function block diagram example

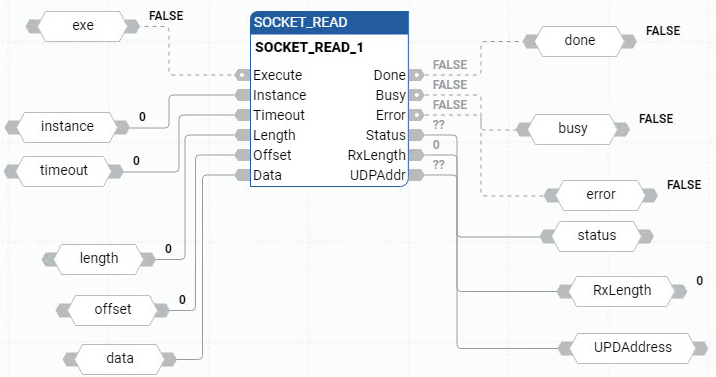

SOCKET_READ ladder diagram example
SOCKET_READ ladder diagram example

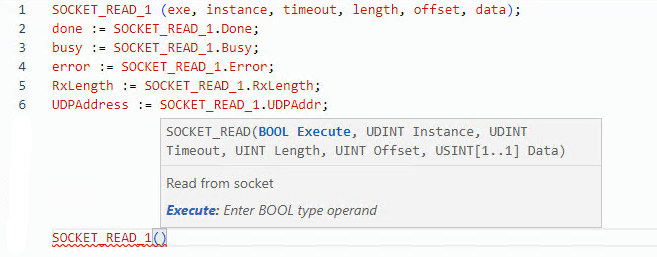

SOCKET_READ structured text example
SOCKET_READ structured text example

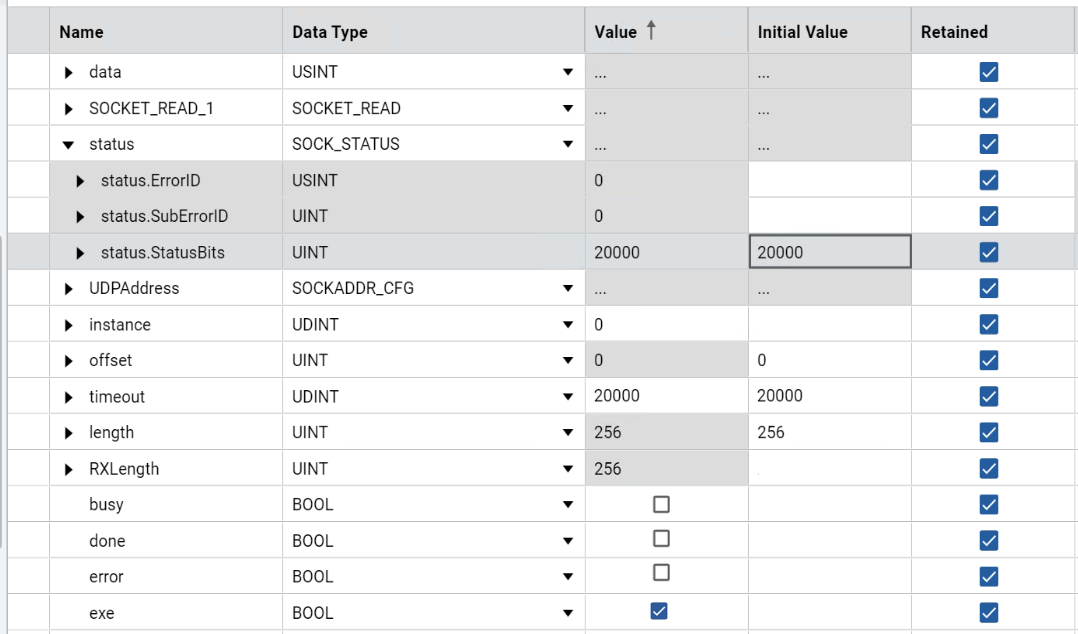

Results - TCP
Results - TCP

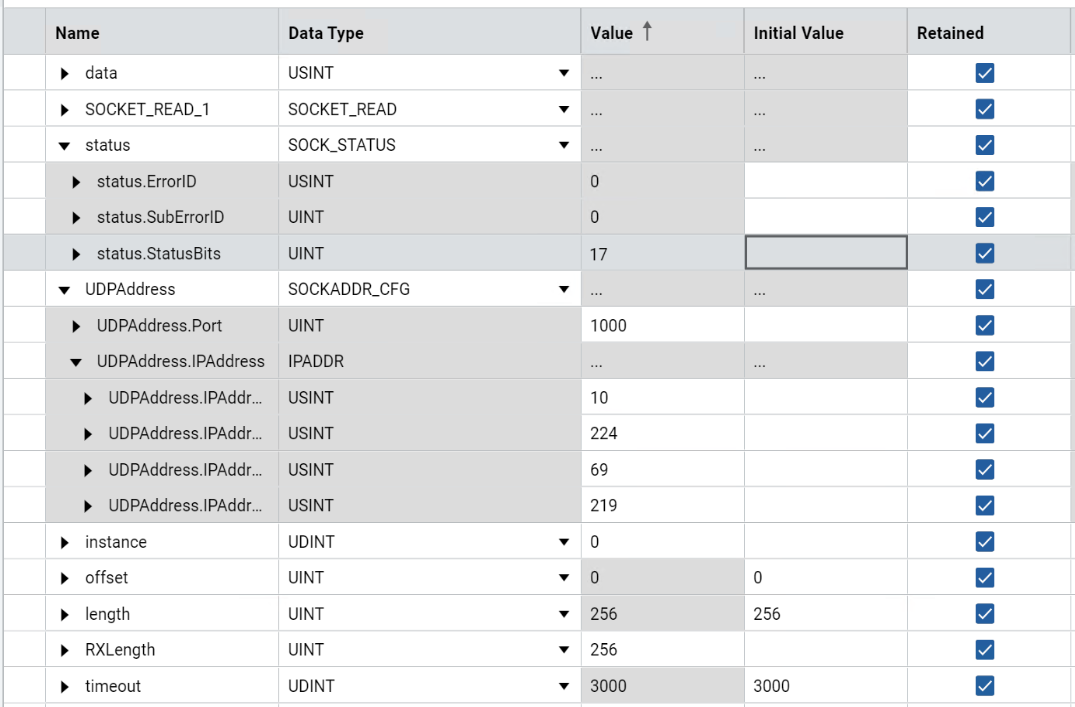

Results - UDP
Results - UDP
