NE (<>)

The NE instruction compares Integer, Real, Time, Date, and String input values to determine whether the first is not equal to the second.
Languages supported: Function block diagram, ladder diagram, structured text.
This instruction applies to the Micro810, L20E, L50E, and L70E controllers.
NE
NE
NE parameters
Parameter
Parameter Type
Data Type
Description
EN
Input
BOOL
Instruction enable.
  • TRUE: Execute current compare computation.
  • FALSE: There is no computation.
Applies only to ladder diagram programs.
i1
Input
BOOL
SINT
USINT
BYTE
INT
UINT
WORD
DINT
UDINT
DWORD
LINT
ULINT
LWORD
REAL
LREAL
TIME
DATE
STRING
All inputs must be the same data type.
i2
Input
BOOL
SINT
USINT
BYTE
INT
UINT
WORD
DINT
UDINT
DWORD
LINT
ULINT
LWORD
REAL
LREAL
TIME
DATE
STRING
o1
Output
BOOL
TRUE - if first <> second.

NE examples

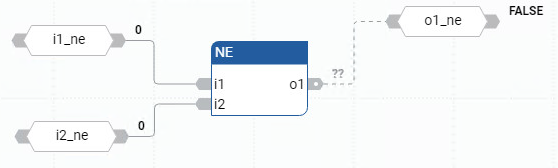

NE function block diagram example
NE function block diagram example
NE ladder diagram program example
NE ladder diagram program example
(* ST Equivalence: *)

aresult := (10 <> 25); (* aresult is TRUE *)

mresult := ('ab' <> 'ab'); (* mresult is FALSE *)
