Add the Ethernet driver and manually enter the IP address of the Micro800 controller

If you use Ethernet instead of a USB to connect to the controller, the Ethernet/IP driver is installed by default, and you can connect to the devices that are on the same subnet as the computer. If a Dynamic Host Configuration Protocol (DHCP) server is available, in most cases, your computer and the device (such as the L70E controller, which defaults to DHCP) will be assigned IP addresses that will allow them to communicate using this Ethernet/IP driver. The Ethernet/IP driver will browse all devices on the subnet.
In cases where the device is not on the same subnet as the computer or you do not wish to view all devices on the subnet, we recommend installing the Ethernet devices driver, which requires manually entering the IP address of the device
To add the Ethernet driver and manually enter the IP address of the Micro800 controller
  1. Open
    Select device
     by doing one of the following:
    • Select Online center button to open
      Online center
      , and then select open-select-device button.
    • In
      Project Organizer
      , select discover-device button.
  2. In
    Select device
    , select Configure drives button.
  3. In
    Configure Drivers
    , from the
    Available Driver Types
     list, select
    Ethernet
    .

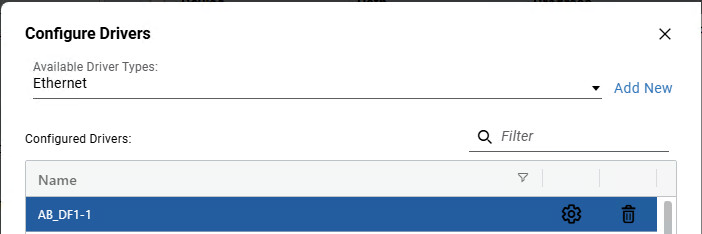

    Configure drive dialog - Add Ethernet device
  4. Select
    Add New
    .
  5. In
    Configure Driver
    , Change the
    Name
     as needed, and then in the
    Device List/Range
     box, enter the IP address of the controller.
    We recommend appending ":EIP" to the IP address to avoid the CSPv4 port 2222.

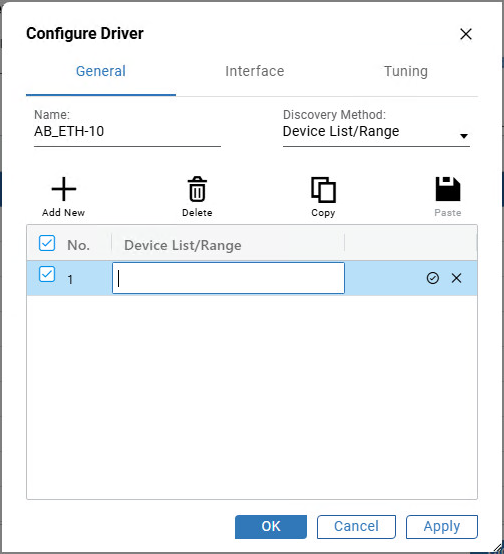

    Configure Driver dialog
  6. Select
    OK
    .
  7. In
    Configure Drives
    , select
    Close
    .
  8. In
    Select device
    , expand the Ethernet device driver you added, select the controller, and then select
    OK
    .
