Contents of an exported VD project

An exported project is saved in a new folder in a specified directory.

A text file named

ViewApplication.hmi

contains project settings and is the starting point when performing import.

View Designer

exports content for screens, popups, and the graphic elements on a screen or popup into specific text .hmi files, which model aspects of visualization in the

View Designer

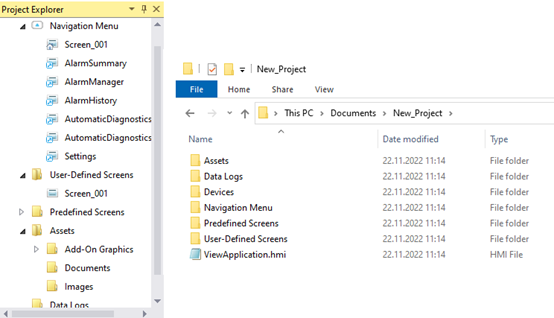

. The .hmi files are stored in separate folders, and the exported project folder structure corresponds to the folder structure in the

Project Explorer

in

View Designer

.

For detailed information about the

View Designer

object properties, refer to the Studio 5000™ View Designer Help.
