Controller statistics

The

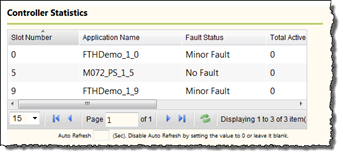

Controller Statistics
 page provides the following information on Logix Controllers in the chassis:
Item
Description
Slot Number
The chassis slot in which the Logix Controller is installed.
Application Name
The name of the program running on the Logix Controller.
Fault Status
The Logix Controller's current fault status is one of the following:
  • No Fault
  • Minor Fault
  • Major Fault
Collected Points
The total number of tags actively collected between the module and this controller.
Point Event Rate/Sec
The number of tag reads from this controller, per second, accumulated over a rolling 10-second period. Therefore, the value is the average tag reads per second over the previous 10 seconds.
Point Failure Rate/Sec
The number of tag read failures from this controller, per second, accumulated over a rolling 10-second period. Therefore, the value is the average tag read failures per second over the previous 10 seconds.
CPU Loading
The controller's CPU utilization in tenths of a percent. For example, the range of 0 - 100 represents 0% to 100%.
Controller statistics
