DisplayMilliseconds property

Returns or sets whether or not the time stamps displayed on the x-axis legend at the bottom of the chart include milliseconds. It effects the last logged time, value bar, and tool tips also. Read/write. Boolean.
Syntax
Trend
.
DisplayMilliseconds
 [
= state
 ]
where
Trend
 - is the name of a Trend object (such as trend1) or an expression that evaluates to a Trend object.
state
 - is a parameter of the type Boolean that can be set to one of the following:
  • True
    . Displays milliseconds on the x-axis legend.
  • False
    . Displays only hours, minutes, and seconds.

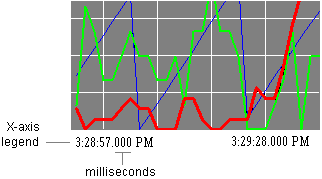

Chart example
Set up the milliseconds options on the Trend properties Display tab.
tx_Milliseconds
