Policy model example

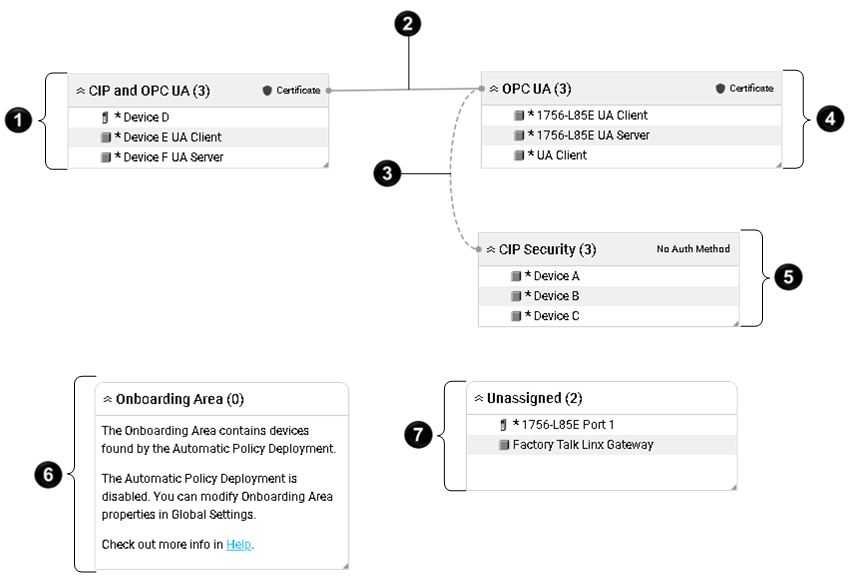

The policy model example includes three zones connected with conduits that contain different device types.
Policy model example
Item | Name | Description |
|---|---|---|
 | CIP and OPC UA zone | Contains OPC UA devices and CIP devices. |
 | Secure conduit | Connects CIP and OPC UA zone with OPC UA zone. |
 | Trusted unsecure conduit | Connects OPC UA zone with CIP Security zone. |
 | OPC UA zone | Contains OPC UA devices only, including two OPC UA clients and one OPC UA server. |
 | CIP Security zone | Contains three CIP devices. |
 | Onboarding Area container | Contains devices found by Automatic Policy Deployment that can be added to the policy model. There are no devices found by Automatic Policy Deployment in this example. |
 | Unassigned container | Contains devices added to the policy model but not added to any zone in the policy model. There are two unassigned devices in this example. |
