Start a material-based phase

Acquire the appropriate phase.

Click the

Start

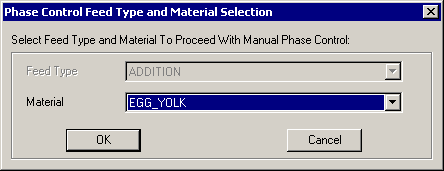

button to initiate the phase. The

Phase Control Feed Type and Material Selection

dialog box opens.

Select the

Feed Type

(if available), and

Material

, and then click

OK

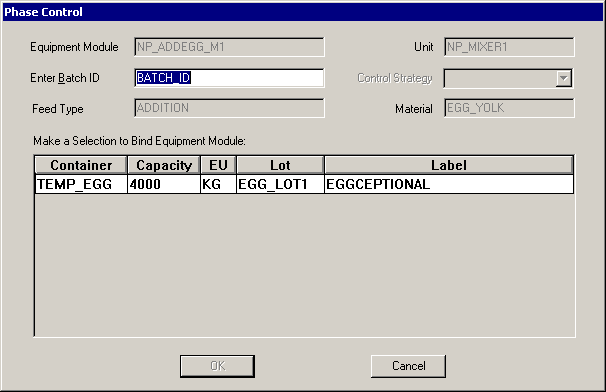

. The

Phase Control

dialog box opens.

Type a unique

Batch ID

for the manual phase control batch in the

Enter Batch ID

box, unless you are generating Batch IDs automatically.

(See

Batch identification

in the

FactoryTalk Batch

Administrator Guide

for more information.)

Select the appropriate container from the

Make a selection to bind equipment module

box and click

OK

. The State changes to RUNNING.
