Monitoring Status

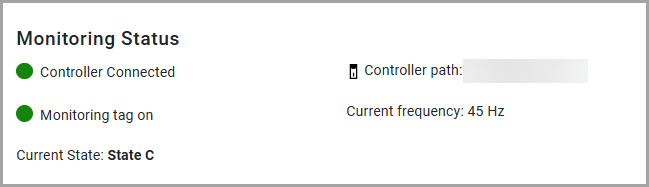

On the Training page of a component, the user can view the following status in the Monitoring Status section:
  • Controller Connection Status: When the Controller is configured, the status is displayed as green and
    Controller Connected
    . For the default state, it is displayed as
    Controller not configured
    .
  • Controller path: The path of the controller is displayed. For the default state, it is displayed as
    N/A
    .
  • Monitoring Tag status: When the monitoring tag is selected, the status is displayed as green and
    Monitoring tag on
    . For the default state, it is displayed as grey, and
    No monitoring tag selected
    .
  • Current Frequency: The current frequency at which the component operates is displayed.
  • Current State: Name of the active state is displayed here. For the default state, it is displayed as
    N/A
    .
Monitoring Status

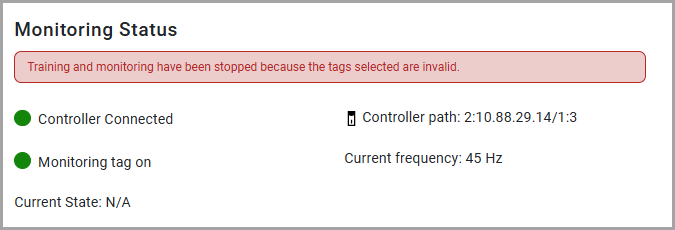

If only one tag is selected on the State Definition page, and if the tag is invalid, training and monitoring will be stopped. A message is displayed in red, as shown in the following image, and the current state will be shown as N/A.
If multiple tags are selected and all the tags are invalid, training and monitoring will be stopped.
Monitoring Status for Invalid Tags
