Configure Component Training

Perform the following steps to configure component training:

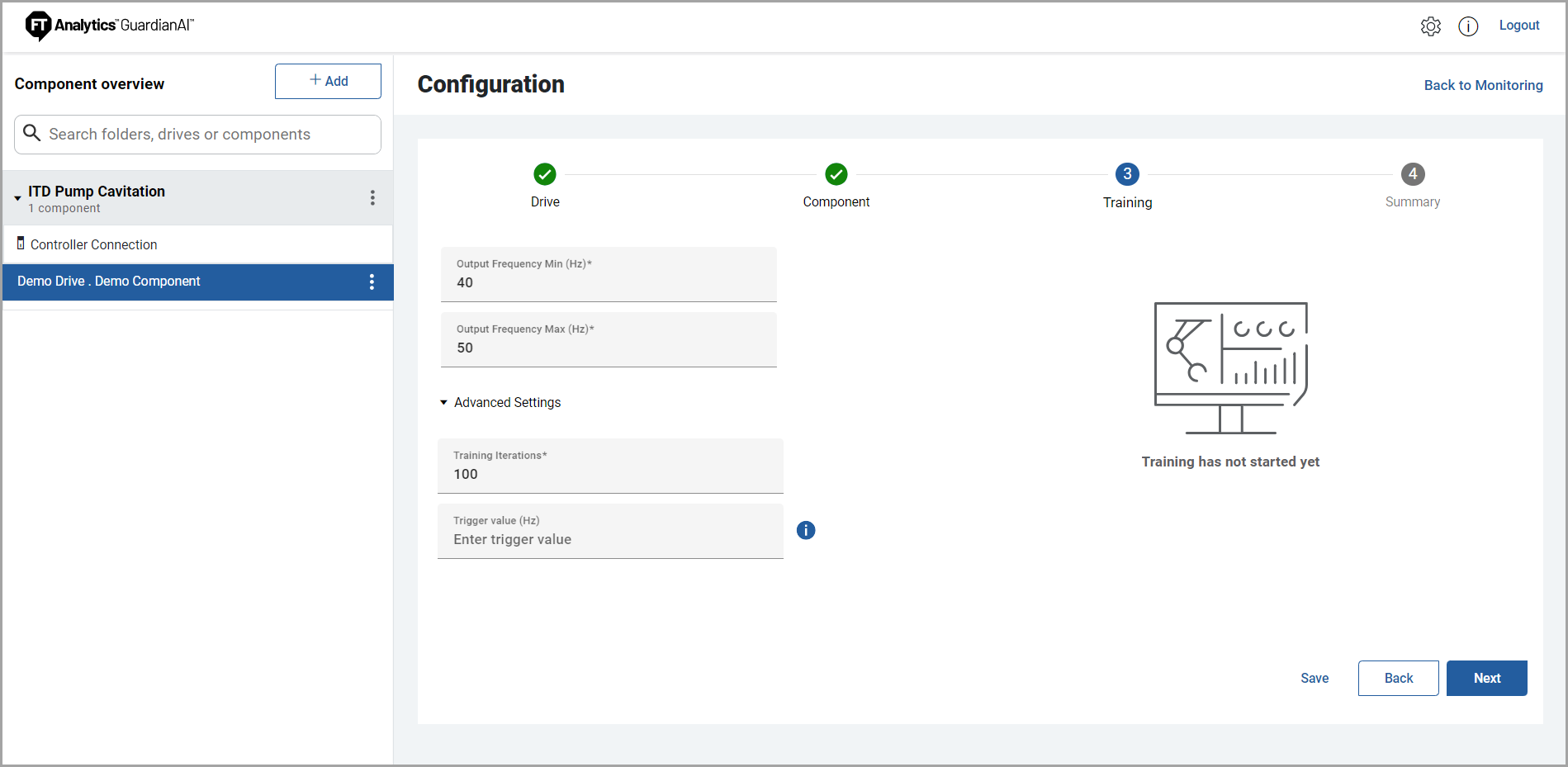

  1. Provide the following details in
    Training
     section of
    Configuration
    :
    • Output Frequency Min (Hz)
      : Minimum VFD command frequency of the application
    • Output Frequency Max (Hz)
      : Maximum VFD command frequency of the application
  2. Provide the following details in
    Advanced Settings
     section:
    • Training Iterations (Default 100)
      : The number of data trends received from the variable frequency drives from FactoryTalk Analytics GuardianAI. A lower value trains faster but generally results in a lower-quality baseline. The recommended value to use is 100 iterations. The expected time to train the baseline will be 11-18 minutes for each half-hertz increment of the operation frequency.
    • Trigger Value Hz (Default Empty)
      : An advanced trigger configured for the drive high-speed trend object. The value set will configure the drive to only send data to FactoryTalk Analytics GuardianAI for training/monitoring when the drive operates at or above the frequency value set for the trigger. This parameter is used for advanced motion-based applications with the variable frequency drive. It will typically not be required when operating FactoryTalk Analytics GuardianAI on pumps, fans, and blowers.
    NOTE: The training performance may be impacted when running FactoryTalk Analytics GuardianAI on Windows via a Linux virtual machine. It is also recommended to place FactoryTalk Analytics GuardianAI as close as possible to the drive application to minimize the number of network hops.
