Example of Deadband configurations

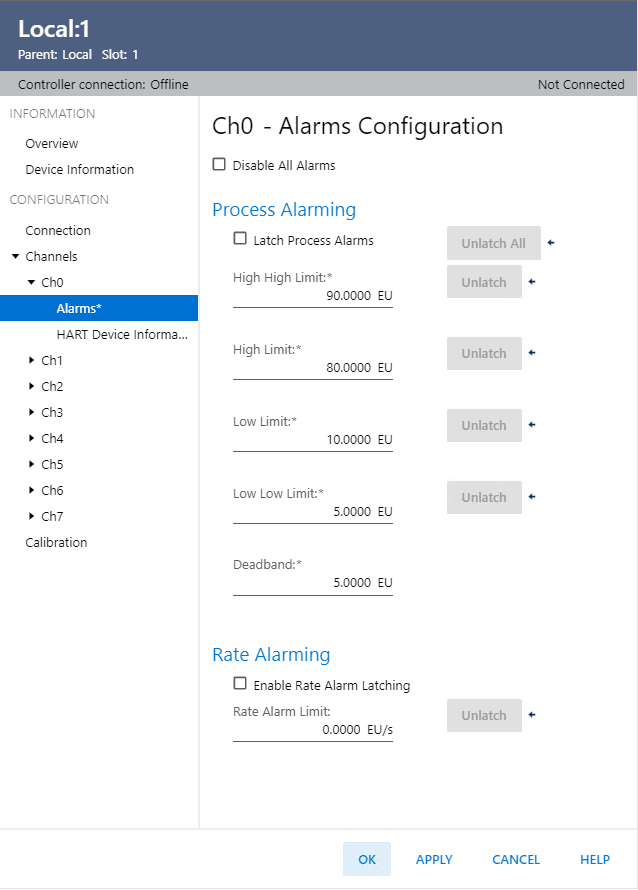

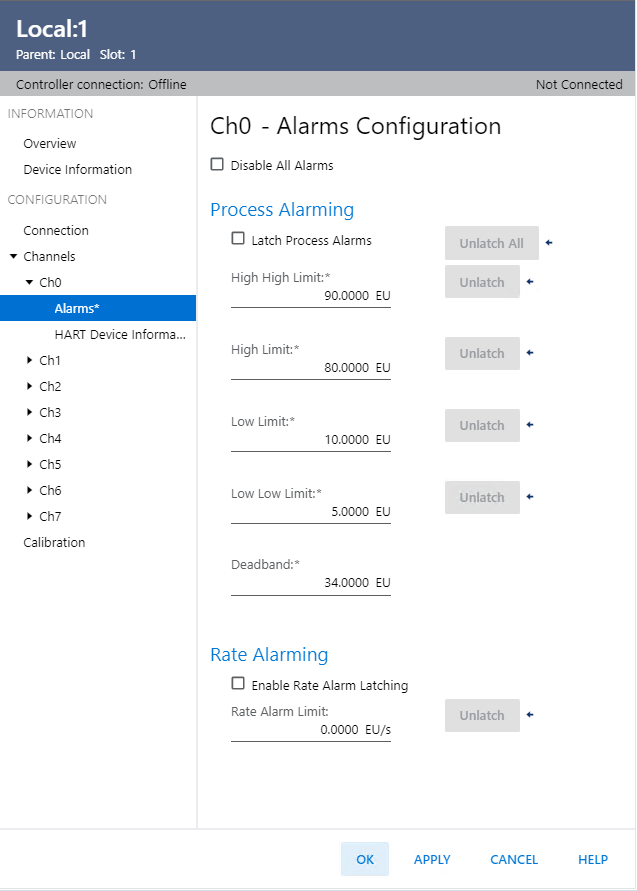

These images show typical Deadband configurations. Specifically the images show the Deadband at its limit for the given High and Low alarm settings. The Deadband is over the limit if the red and blue bands overlap.

The Deadband must be less than half the distance between the Low alarm and High alarm.

RSLogix 5000

software shows the deadband with red and blue shaded areas.
