Contactor/Starter Information - Predictive Maintenance View

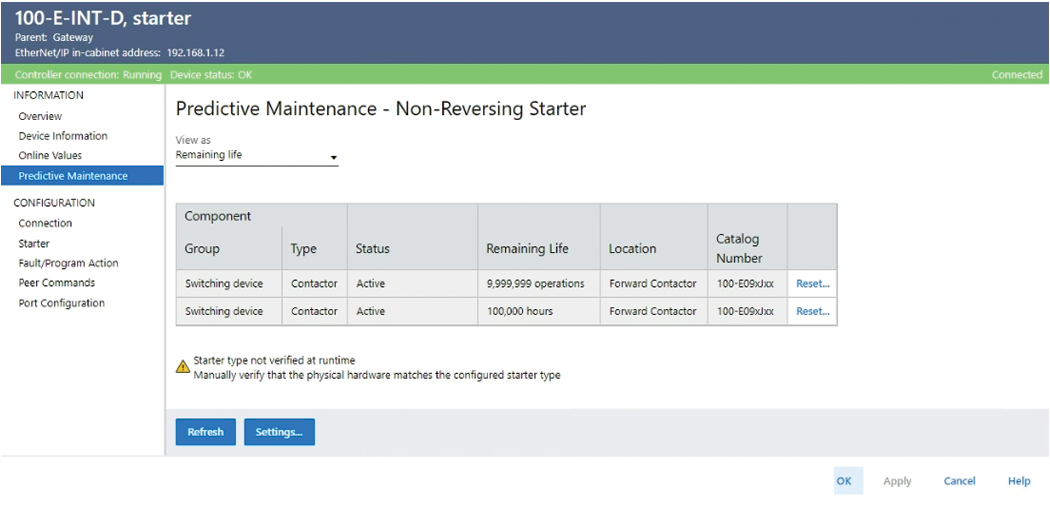

The Predictive Maintenance view displays predictive maintenance data for the device. Predictive maintenance data is blank when offline.

Parameter	Option
View as	This is a display filter that displays predictive maintenance data according to the selected option: Remaining life (default) Elapsed life Consumed life percentage
Status	Values are: Active: Remaining predicted life below threshold is set to 0. Maintenance required: Remaining predicted life below threshold is set to 1 and predicted remaining life is above 0. Out of specification: Remaining predicted life below threshold is set to 1 and predicted remaining life is 0 or below 0.
Elapsed life/Remaining life/Consumed life	Depends on View as dropdown selection: Shows the elapsed life, remaining life, or Consumed life percentage in terms of operations for switching device and hours for PCB assembly.
Location	Identifies the location of the component within a product, device, or subsystem.
Catalog number	Shows the device catalog number.
Reset	Resets the predictive maintenance data.
Settings	Displays the predictive maintenance settings dialog box.
Refresh	Manually refreshes the predictive maintenance data when online with the device.

Predictive Maintenance Settings

Predictive Maintenance Settings displays options to set indicators and messages and configures the alarm for the remaining life threshold percentage.

Parameter	Description
Predicted life	Displays the Maximum life and the Remaining life threshold.
Alarm notification	Enables the remaining life below threshold alarm. If not selected, the alarm is not set even if the alarm threshold is crossed.
Remaining life threshold	Sets the remaining life threshold as the percentage of Maximum life. Values allowed: Custom percentage - when Custom percentage is selected, enter a value for the Remaining life threshold. Allowed values are from 0% to 100%, in 0.1% increments. 5% 10% (default) 15% 20% 25% 30% 35% 40% 45% 50% Remaining life varies according to selected threshold values.
