Contactor/Starter Information - Online Values View
The Online Values view displays the states for the device. The information depends on the starter type.
Status Indicator | Description |
|---|---|
 | Indicates the status is active for data read from the device. For example, the
starter is active in forward direction, or the interlock is active. |
 | Indicates the status is inactive for data read from the device. For example, the
starter is not active in forward direction. |
 | Indicates an error condition. For example, the interlock signal is inactive. |
 | Data read from the device indicates a warning condition exists. |

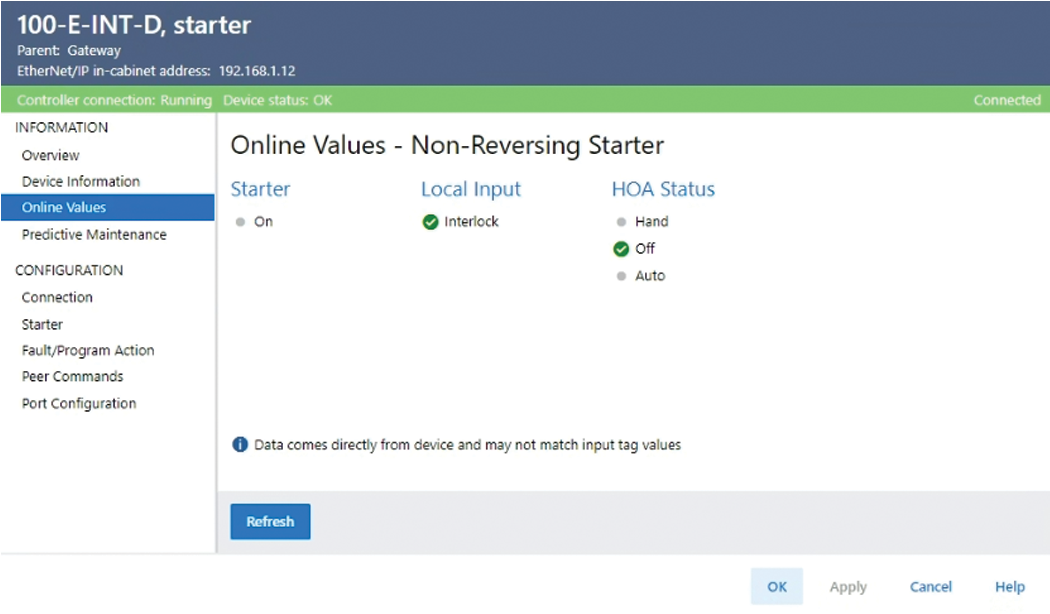

Starter Online Values (100-E-INT-D shown)
Device Type | Starter | Local Input | HOA Status |
|---|---|---|---|
100-E-INT-D Non-Reversing Starter Interface | On | Interlock | When Controlled by is set to Controller/Peer 2-Wire or Controller/Peer
3-Wire:
|
104-E-INT-D Reversing Starter Interface |
|
Online Values View - 100/104-E-INT-X Modules
The 100-E-INT-X and 104-E-INT-X communication modules have additional online value
information.

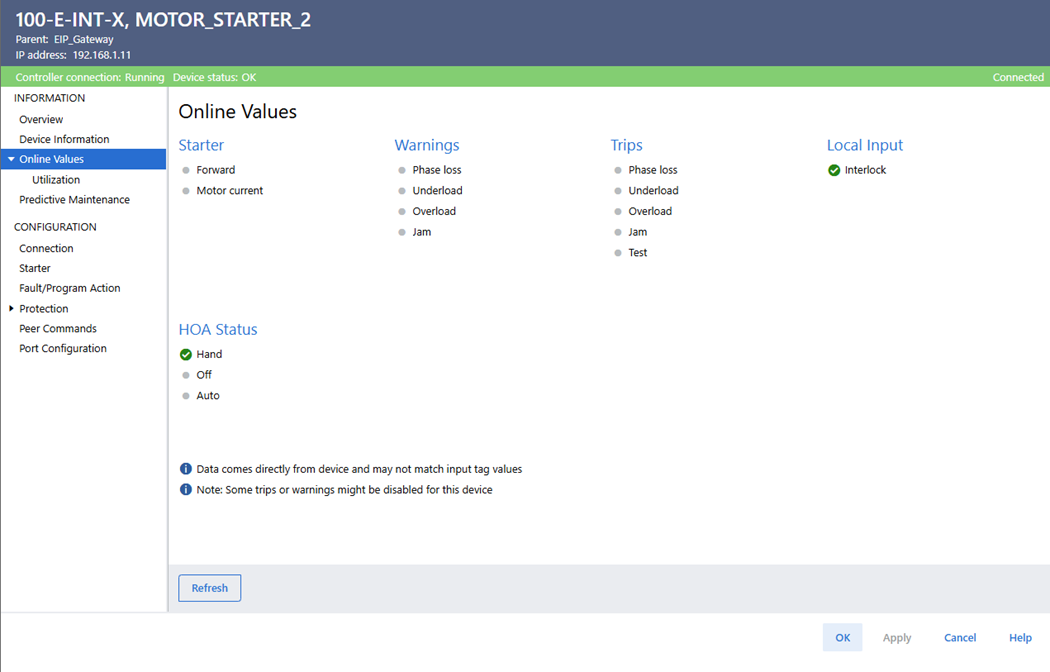

Starter Online Values (100-E-INT-X shown)
Device Type | Starter | Warnings | Trips | Local Input | HOA Status |
|---|---|---|---|---|---|
100-E-INT-X Non-Reversing Starter Interface |
If StarterType value = 9...15:
|
|
If StarterType value = 9...15:
| Interlock | When Controlled by is set to Controller/Peer 2-Wire or Controller/Peer
3-Wire:
|
104-E-INT-X Reversing Starter Interface |
If StarterType value = 9...15:
|

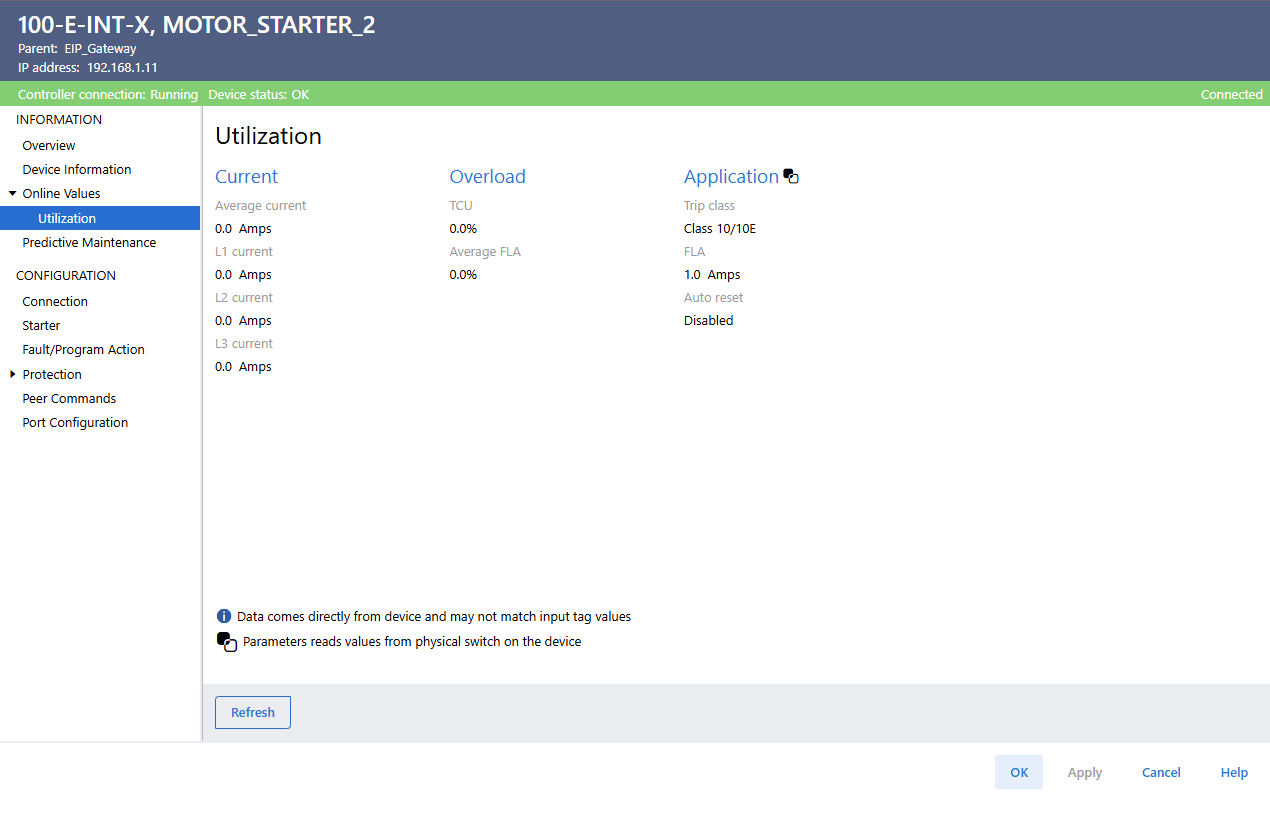

Utilization (100-E-INT-X shown)
Utilization is a view only available to 100/104-E-INT-X modules. It provides additional
monitoring information.
Device Type | Current | Overload | Application |
|---|---|---|---|
100-E-INT-X Non-Reversing Starter Interface |
|
|
|
104-E-INT-X Reversing Starter Interface |
