Points View
Use Points to view or configure the points for the device.
IMPORTANT:
The module does not support mixed AC and DC operation. All points operate in
either AC mode or DC mode. By default, the module operates in AC mode. When DC
mode is enabled, all points operate in DC mode.

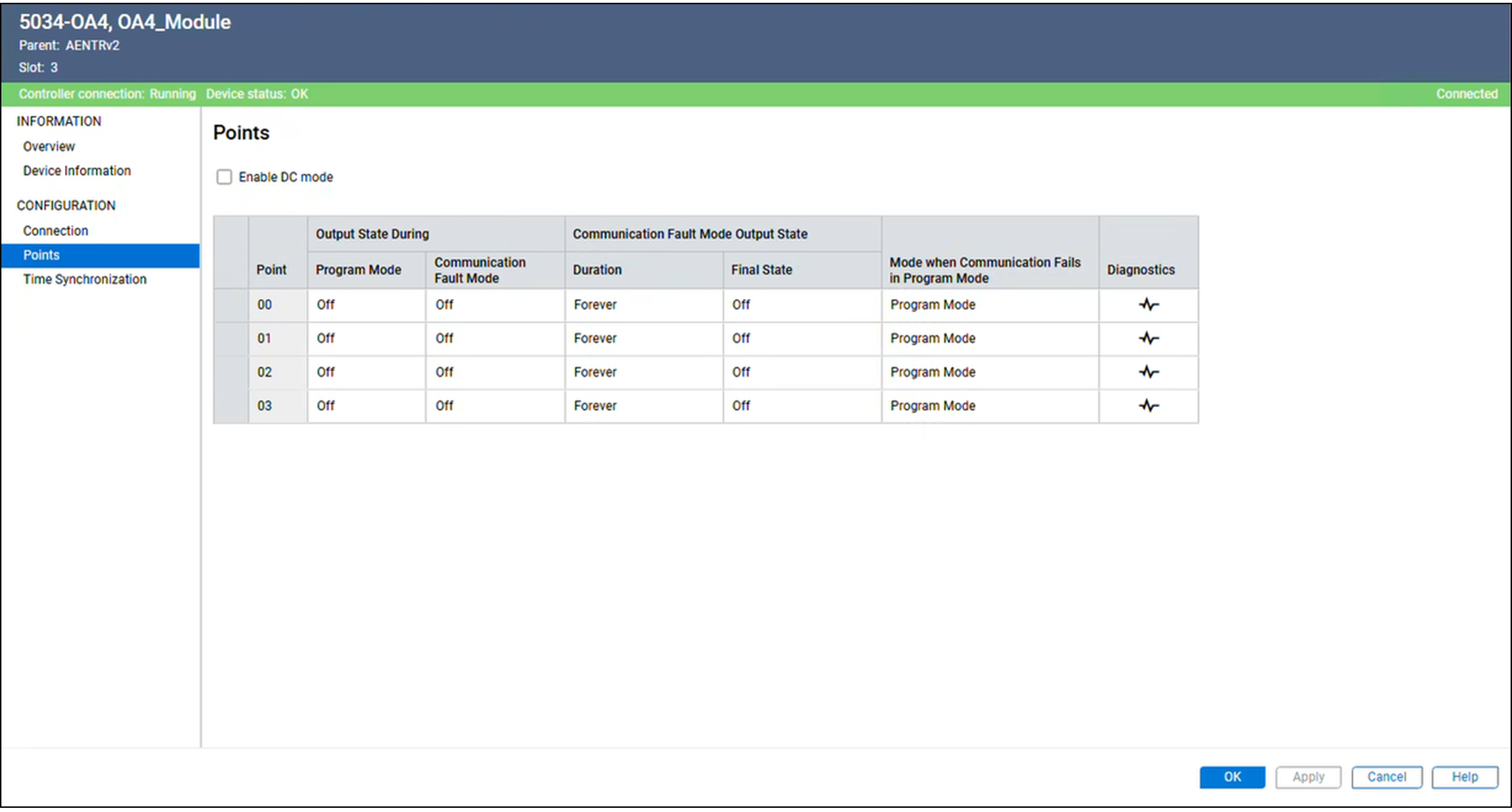

Points View Example
Points Diagnostics
To view the Points diagnostics, select Diagnostics in the Points view.

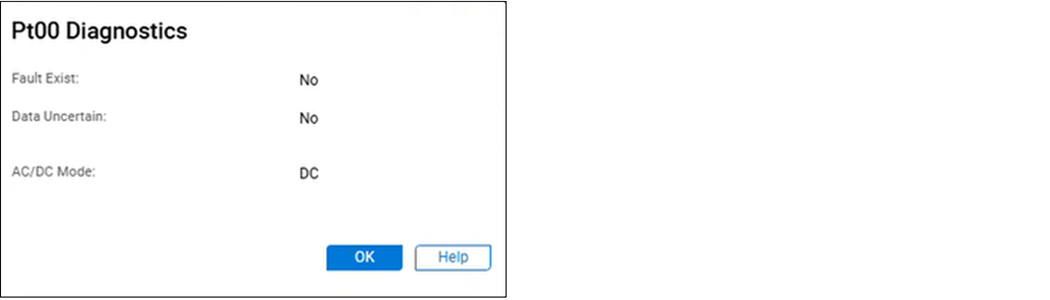

Points Diagnostics Example – DC Mode

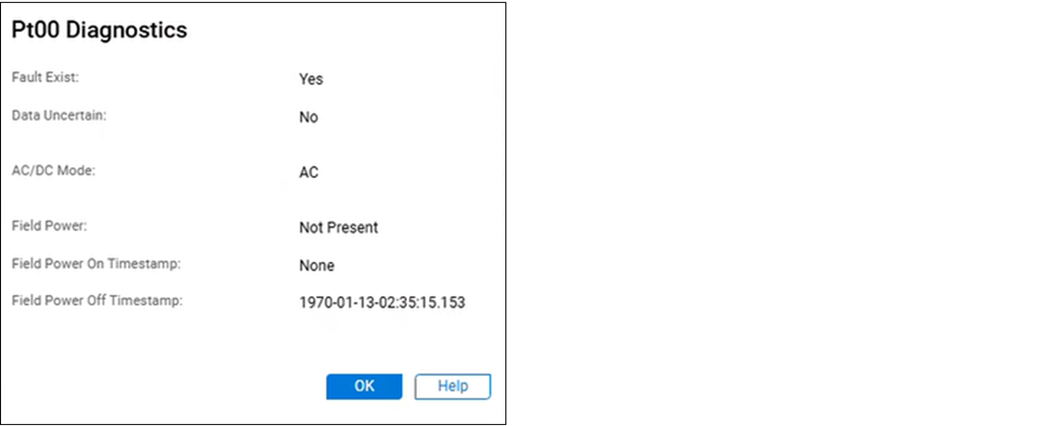

Points Diagnostics Example – AC Mode
