Linking phase groups

Use phase link groups to identify phases that communicate and work together, such as the XFR_OUT and XFR_IN phases that transfer the sweetcream mixture from the mixer to the freezer. In the Equipment Editor, both the XFR_OUT and XFR_IN phases are configured with one message partner, which indicates that these phases must communicate with one other phase to work properly.

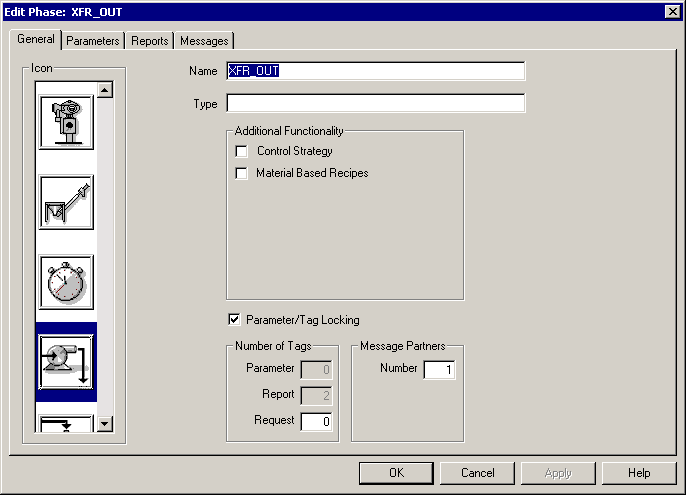

FTBMM_GRG_edit_phase_messages
Equipment Editor: Phase Message Partners
In the Recipe Editor, you must create a phase link group at the procedure level to complete the association.
  1. Select
    XFR_IN:1
     in either the Procedure Hierarchy or the SFC view.
    FTBMM_GRG_XFR_IN1
  2. From the
    Link
     menu, select
    Link Groups
    . The
    Phase Link Group
     dialog box opens.
  3. Click the Group 1 column heading to select the Group 1 column, and then click the
    Add
     button.
    FTBMM_GRG_phase_link_group
  4. Click
    OK
    .
  5. Click
    XFR_OUT:1
    .
  6. From the
    Link
     menu, select
    Link Groups
    . The
    Phase Link Group
     dialog box opens.
  7. Select the Group 1 column, click the
    Add
     button, and then click
    OK
    .
