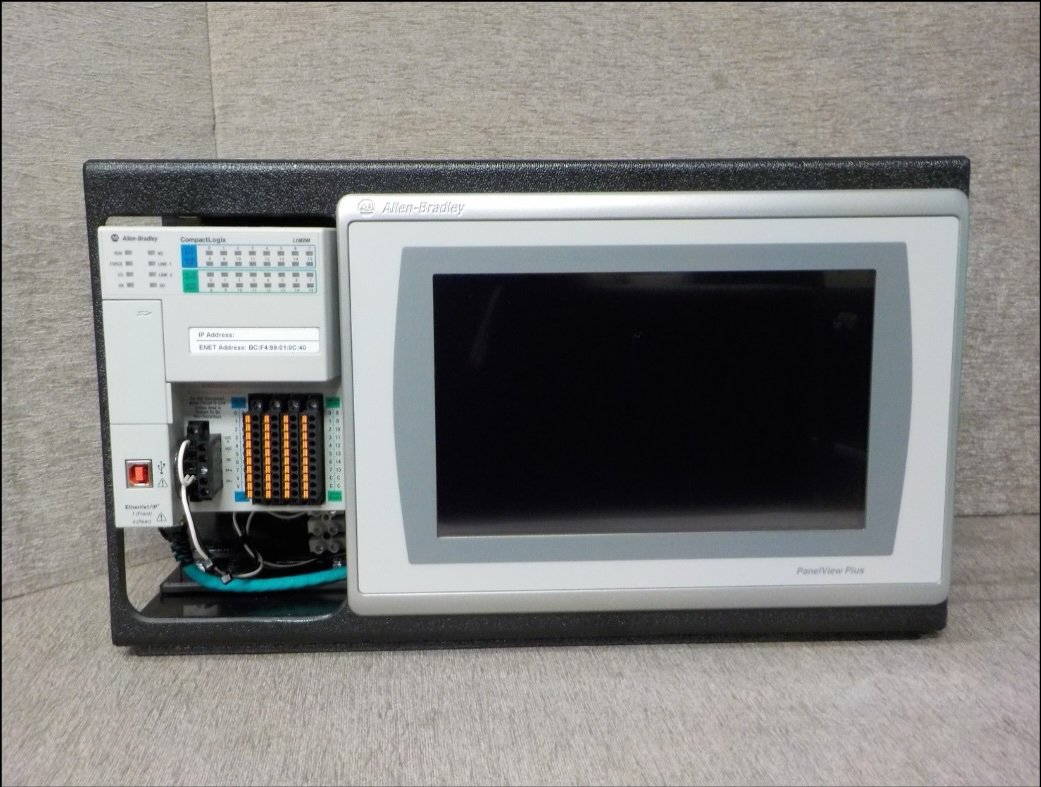

CompactLogix 5380 and PanelView 7 Training Workstation

Part Number: ABT-TDCMPX-PVP7

Workstation Functionality

The CompactLogix and PanelView Plus 7 workstation can address the training simulation needs of your business by providing a superior approach to simulating plant-floor visualization. This device can help you simulate the visual aspects of operator control actions, machine status, critical faults, and much more.

Training Purpose

This workstation is intended for customers who want to provide opportunities for realistic and safe practices prior to implementation on the plant floor. The workstation is designed to be used as an aid for strengthening, maintaining, and refreshing maintenance and programming skills.

Note: Software is not included with the workstation.

Major Components

Control Hardware

CompactLogix™ L18ERM Processor

Operation Interface Panel

PanelView™ Plus 7 Performance Terminal with Touchscreen Operation
Ethernet Cable

Unit Dimensions

Height: 15.5 in (39 cm)
Length: 9 in (23 cm)
Depth: 4.5 in (11.5 cm)
Weight: 11 lbs. (5 kg)

220-240V Plug Options

See the available document on Literature Library for 220-240V Plug Options for Workstations used in EMEA/AP (GMST10-PP524).
