Use the Network Browser to Upload from the Controller

When you upload a project from the controller, it copies the project from the controller to the
Studio 5000 Logix Designer®
 application.
You can use the features of the Network Browser dialog box to upload from your controller after you have set the communication path.
Complete these steps to upload from the controller.

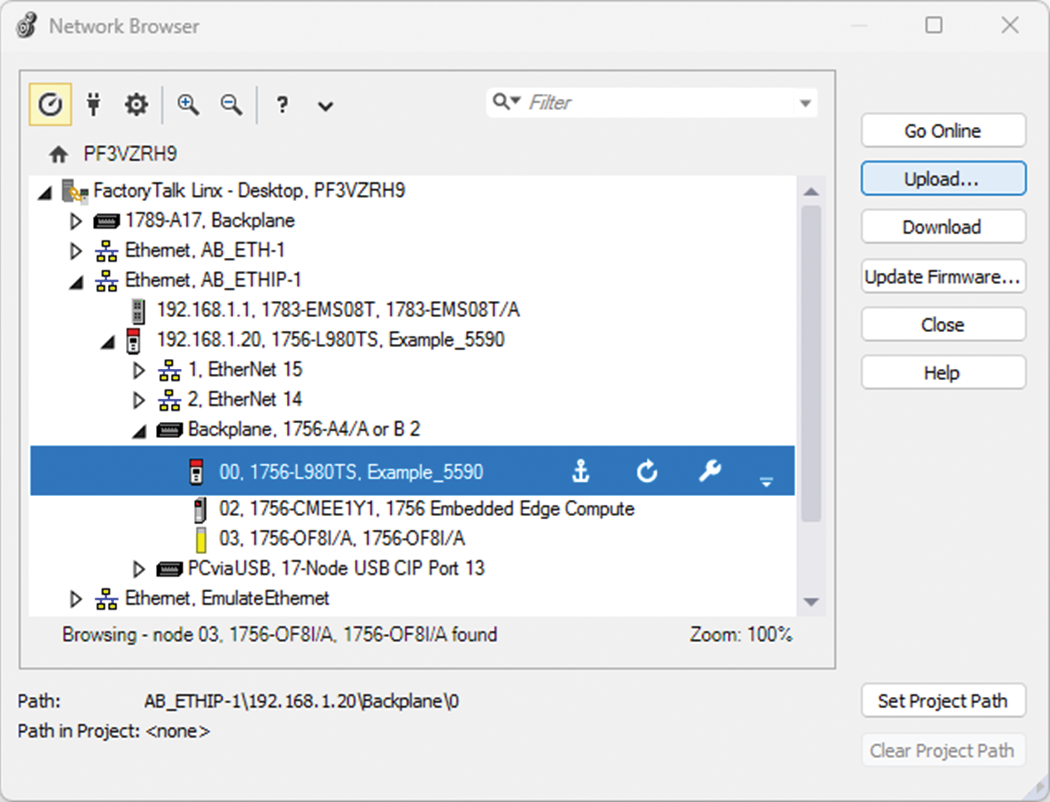

  1. After choosing the communication path, click Upload.
    This image shows how to upload a project with the Network Browser.

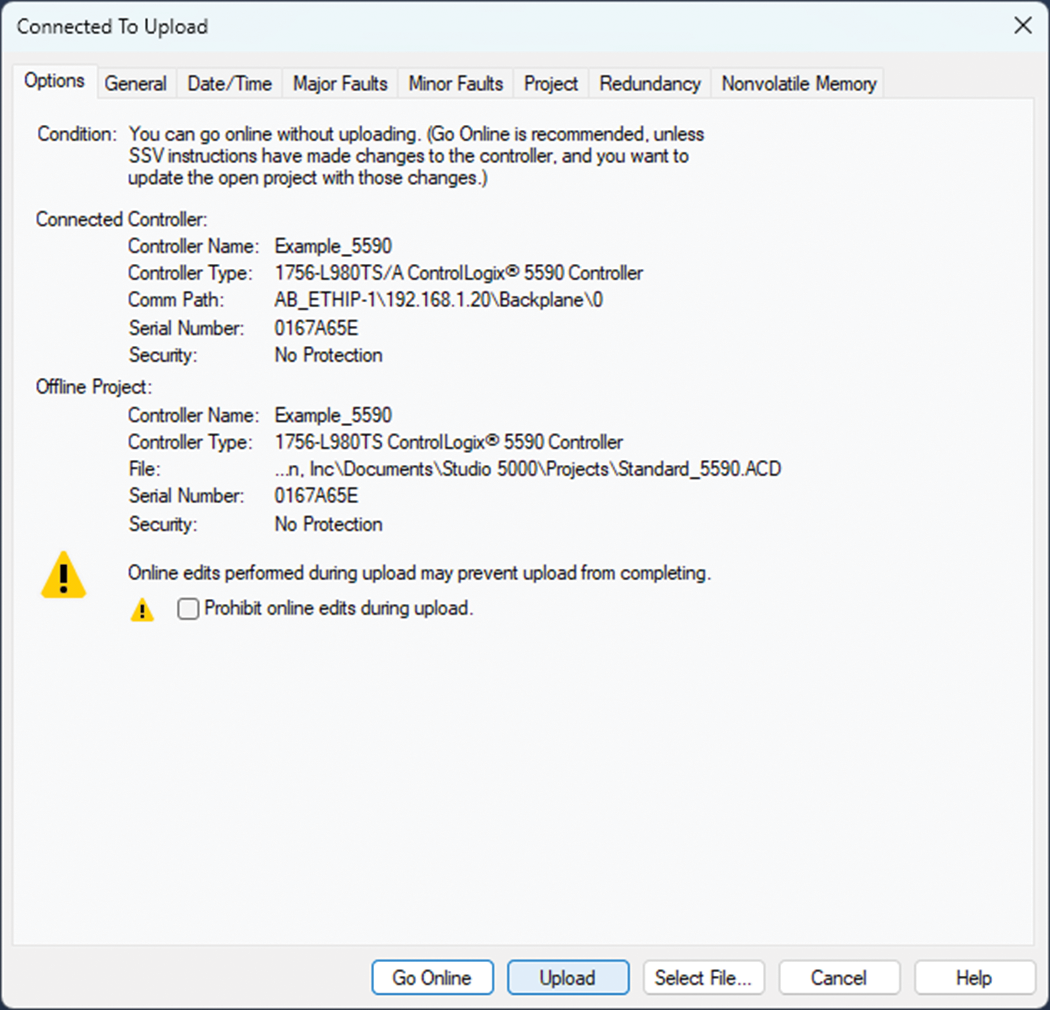

  2. On the Connected to Upload dialog box, verify the project to upload and click Upload.
    This image shows where to upload a project on the Connected to Upload dialog box in Logix Designer.
